Ohaus Dry Bath Heat Block 1 Well 13.5 mm Depth Titer Plate Block

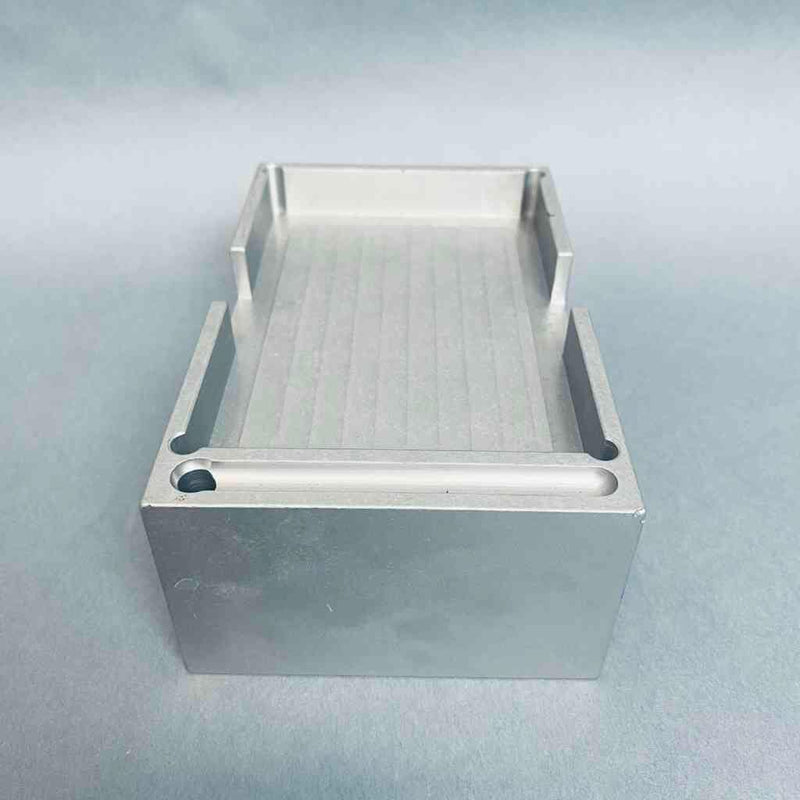

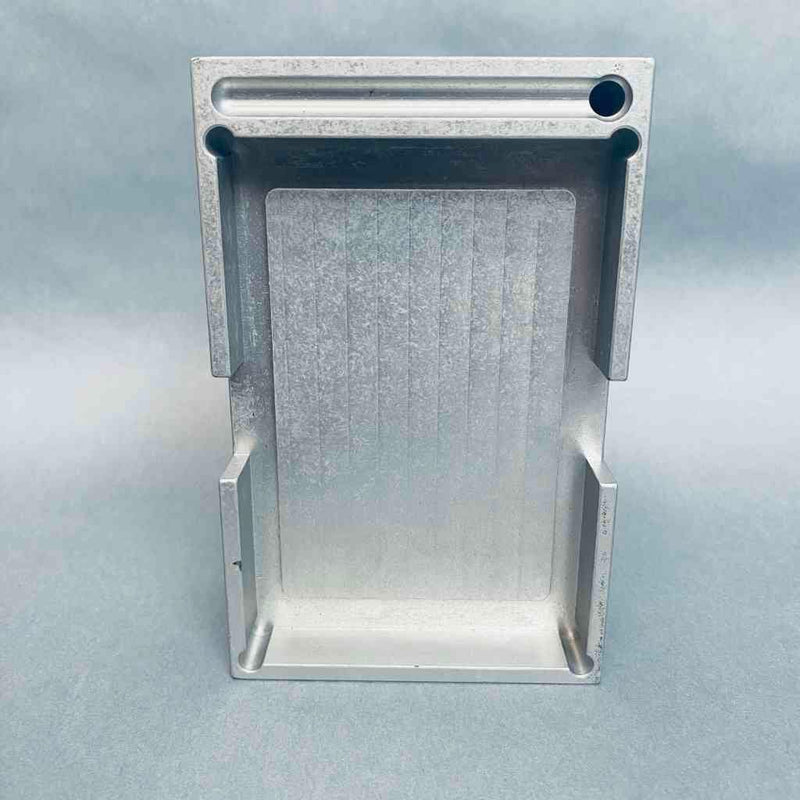

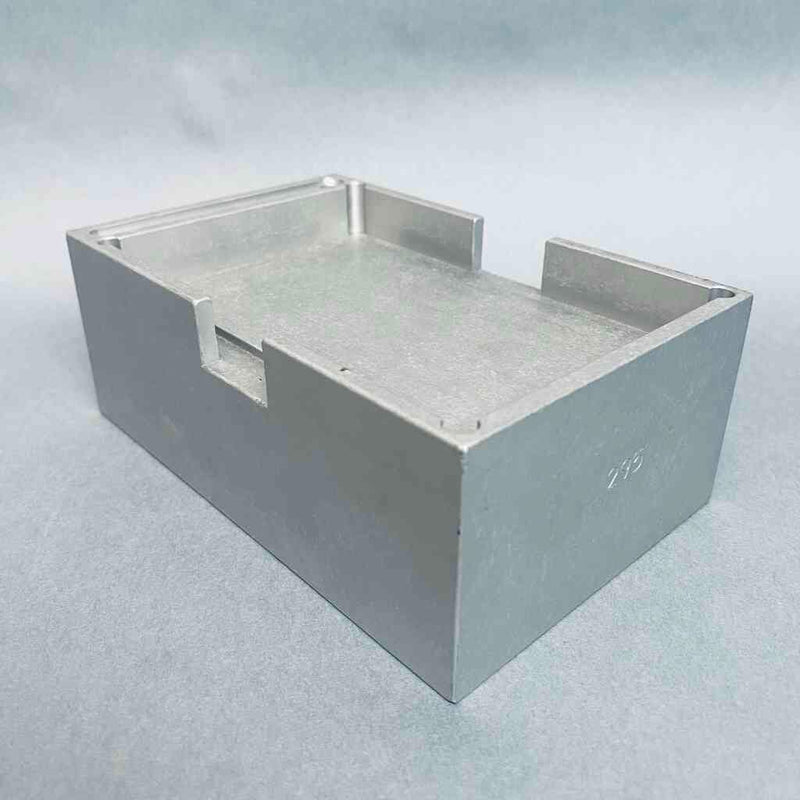

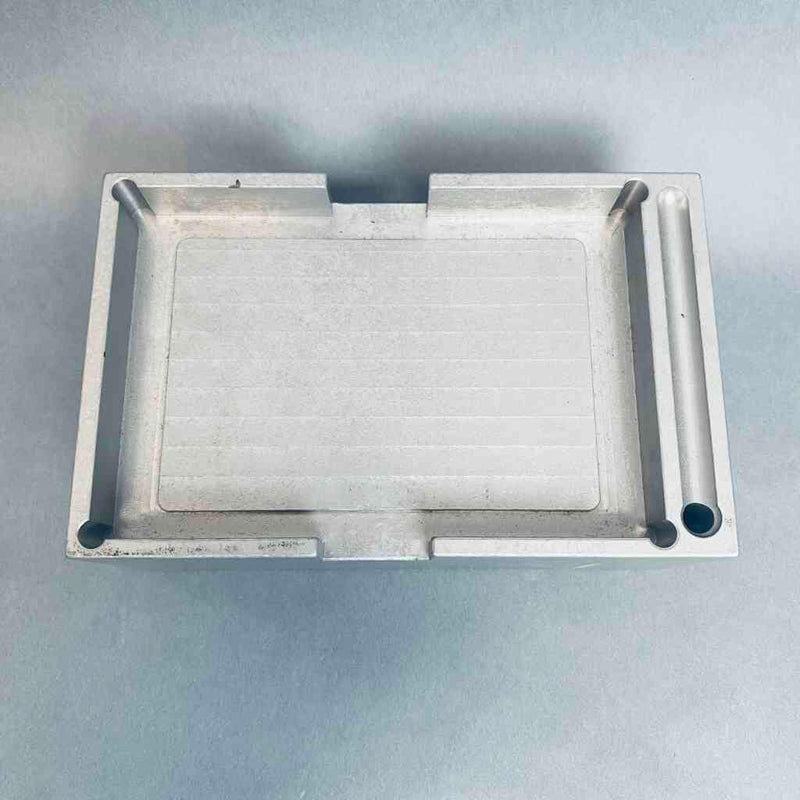

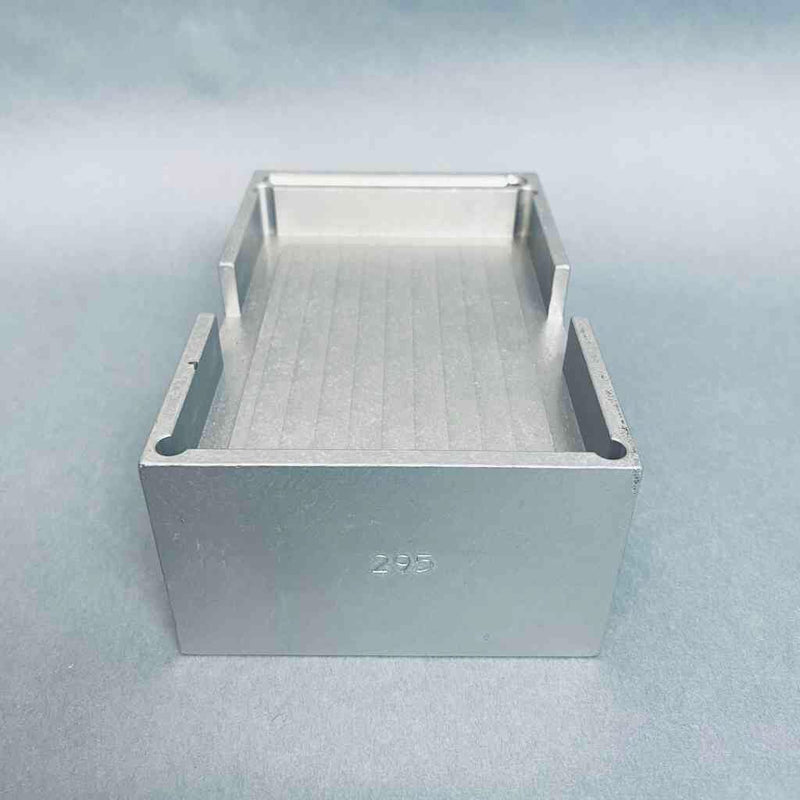

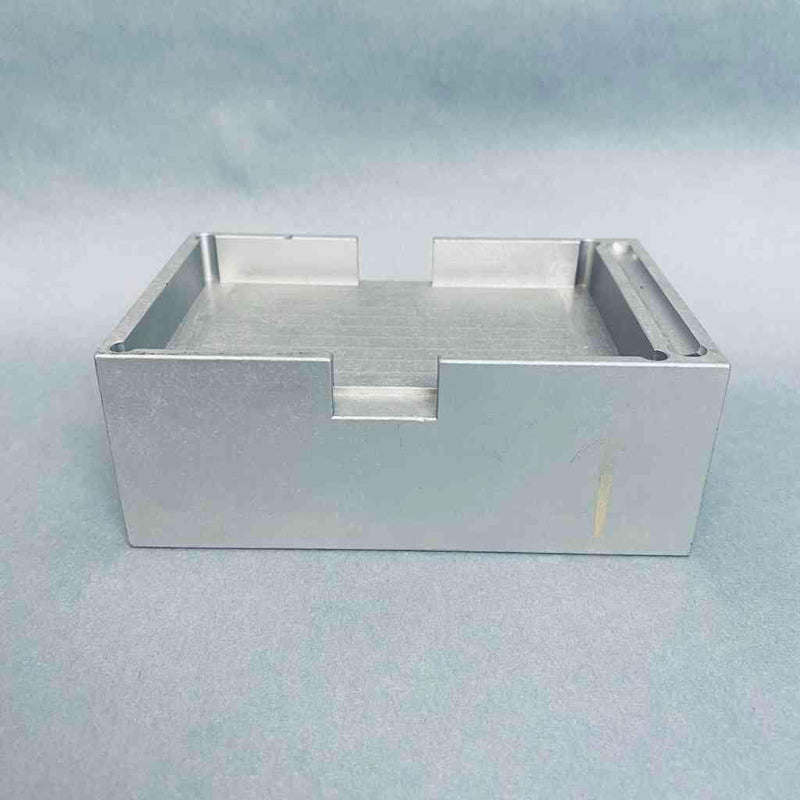

OHAUS Modular Dry Block Heater Insert, Single Titer Plate / Microplate Block (30400164)

The OHAUS Single Titer Plate Modular Block (30400164) is a high-precision, solid anodized aluminum dry bath insert engineered for uniform heating, thermal stability, and precise temperature maintenance of microplates. Designed for seamless integration into OHAUS HB Series Dry Block Heaters and Incubating Cooling Orbital Shakers, this single-module block features a precision-machined flat recess with a 13.5 mm cavity depth to accommodate standard 96-well, 384-well, or deep-well microplates (ANSI/SLAS footprint). Manufactured from high-density aluminum to deliver rapid heat transfer and eliminate thermal gradients across outer and inner wells, this block is an essential accessory for enzyme-linked immunosorbent assays (ELISA), cell culture incubations, and high-throughput molecular workflows.

Technical Performance & Structural Attributes

• Solid Anodized Aluminum Construction: Machined from aircraft-grade aluminum with a durable anodized surface that resists chemical exposure, corrosion, and scratching during repetitive plate loading.
• 13.5 mm Precision Recess Cavity: Engineered with a 13.5 mm depth profile that surrounds microplate skirts to maximize surface contact and deliver uniform conductive heating to all wells.
• Elimination of Edge Effects: High-conductivity aluminum housing minimizes well-to-well temperature variance, preventing edge-well thermal lag in microplate incubations.
• Integrated Thermometer Well: Features a built-in vertical monitoring bore for external temperature sensors, RTD probes, or stem thermometers to independently verify actual block temperature.
• Universal ANSI/SLAS Compatibility: Accommodates standard 96-well, 384-well, flat-bottom, round-bottom, and V-bottom microplates without requiring additional adapters.

Product Specifications

• Catalog / Part Number: 30400164
• Primary Manufacturer: OHAUS Corporation
• Sample Vessel Compatibility: Standard 96-Well, 384-Well, and Titer Microplates (ANSI/SLAS Footprint)
• Capacity: 1 Microplate / Titer Plate
• Recess / Cavity Depth: 13.5 mm (0.53 in)
• Block Dimensions (L x W x H): 3.75 x 3.0 x 2.0 inches (9.5 x 7.6 x 5.1 cm)
• Material Composition: Anodized Aluminum
• System Compatibility: OHAUS HB Series Dry Block Heaters (1, 2, 4, and 6-block models) and Incubating Cooling Orbital Shakers

Key Benefits & Applications

• ELISA & Diagnostic Immunoassays: Delivers consistent, repeatable thermal conditions essential for antibody-antigen binding kinetics and enzymatic color development.
• Genomic & Proteomic Sample Prep: Ideal for isothermal incubations, enzyme digestions, DNA hybridization, and protein denaturation in 96-well formats.
• Contamination-Free Dry Heating: Provides a clean alternative to water baths, eliminating evaporation, fluid splashing, and microbial contamination hazards in microplates.
• Tool-Free Modular Installation: Easily fits into standard multi-block dry bath positions, allowing rapid switching between tube blocks and microplate inserts.

All product names, logos, and brands are property of their respective owners. OHAUS is a registered trademark of OHAUS Corporation.
