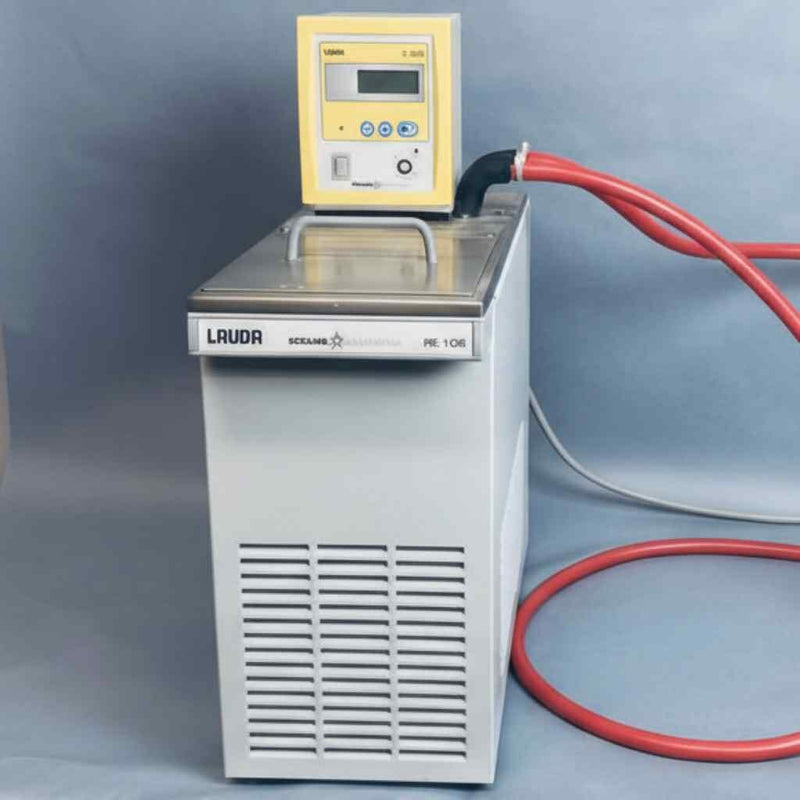

Lauda Recirculating Chiller Bath with E100 Controller

The Lauda Proline RE 106 with the E 100 Controller is a high-precision refrigerated and heating circulator designed for professional laboratory use. It is part of the Proline series, which is known for its modular design and exceptional temperature stability, making it ideal for everything from standard sample tempering to complex external temperature control.

The RE 106 is a robust cooling unit that, when paired with the E 100 "Economy" controller, provides a balanced mix of performance and user-friendly operation.

• Working Temperature Range: -20°C to +150°C.

• Temperature Stability: Maintains a high precision of ±0.02°C, critical for sensitive analytical chemistry or biological assays.

• Cooling Capacity: Provides 0.16 kW of cooling at 20°C, dropping to approximately 0.05 kW at -20°C.

• Heating Capacity: Equipped with a 1.3 kW heater (at 230V) or 1.0 kW (at 115V) for rapid temperature recovery.

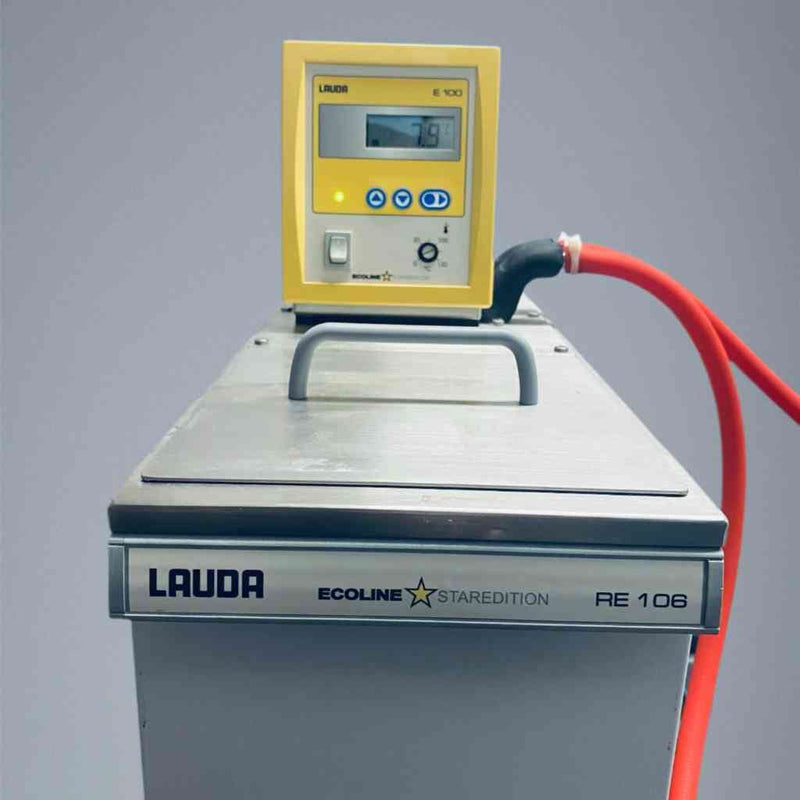

E 100 Controller Features

The E 100 is the digital interface that governs the bath's operations. While labeled "Economy," it still offers professional-grade features:

• Digital Display: Features a clear LED display showing the actual and setpoint temperatures.

• Safety: Includes an adjustable over-temperature protector and a low-level liquid alarm to prevent motor and heater damage.

• Pump Control: Controls a powerful pressure pump with a flow rate of 17 L/min and a maximum pressure of 0.4 bar, suitable for circulating fluid through external refractometers, viscometers, or jacketed reactors.

Used; excellent condition.
