Applied BioSystems Veriti 384 Well Thermal Cycler

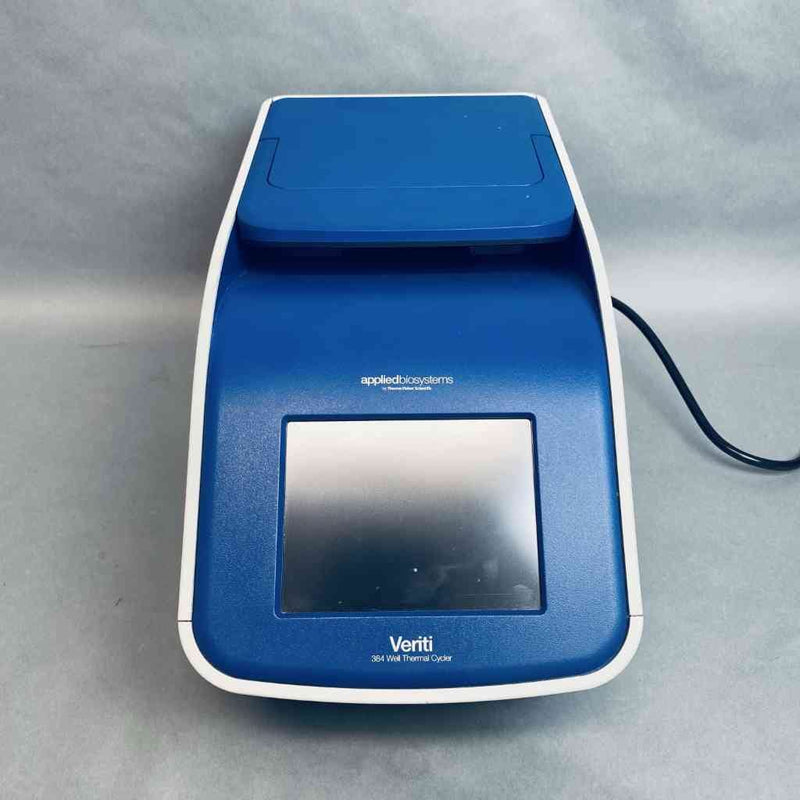

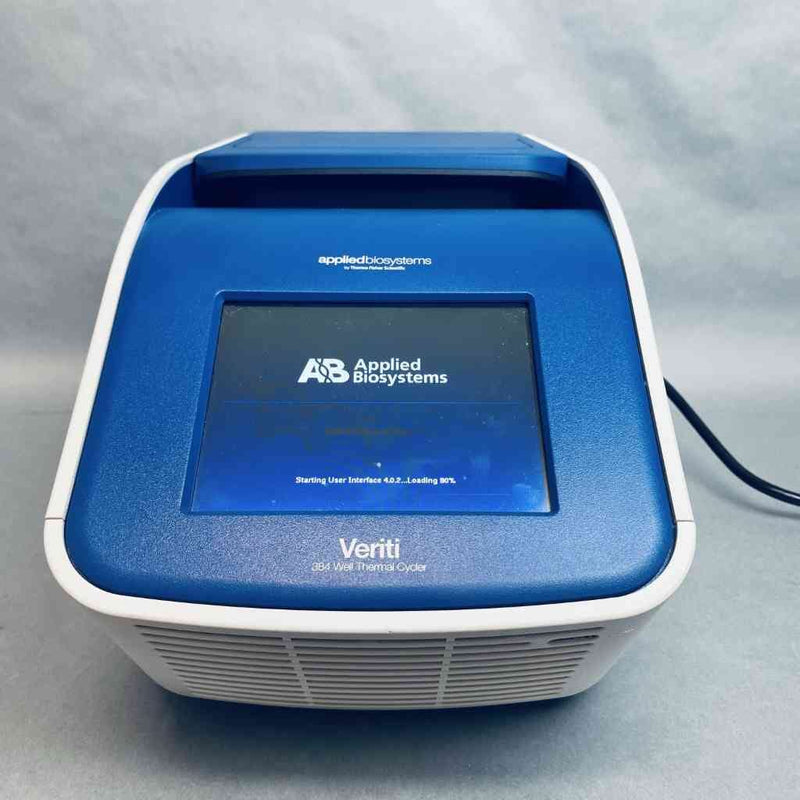

Applied Biosystems Veriti 384-Well Thermal Cycler (4388444)

The Applied Biosystems Veriti 384-Well Thermal Cycler (4388444) is a high-throughput benchtop PCR amplification instrument engineered for demanding genomic research, high-density screening, and clinical assay development. Built with a high-density 384-well sample block, this system allows researchers to process large sample batches simultaneously while minimizing reaction volumes down to 5 µL to 20 µL per well. Controlled via an intuitive 6.5-inch color graphical touchscreen interface, the Veriti 384-Well system simplifies protocol setup, method navigation, and real-time run monitoring. Equipped with advanced Peltier-based thermal control elements, the instrument delivers precise temperature uniformity ($\pm 0.5^\circ\text{C}$), rapid ramping rates, and flexible programming options (including standard and fast PCR cycling modes), making it an essential workhorse for high-throughput genomics facilities.

Technical Performance & Structural Attributes

• High-Density 384-Well Format: Enables high-throughput amplification of up to 384 reaction wells per run, drastically reducing reagent consumption and processing time per sample.

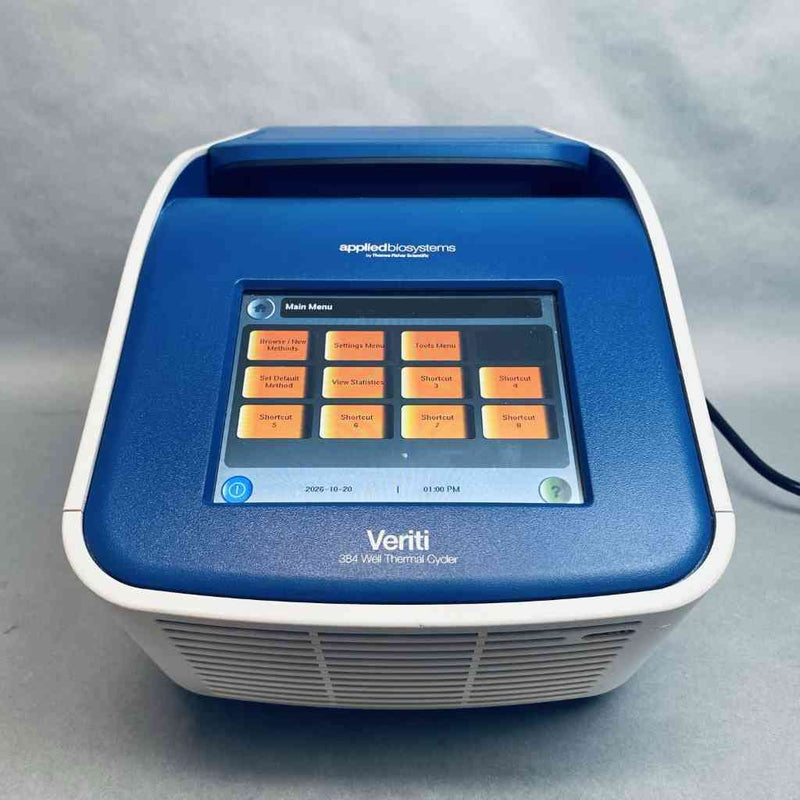

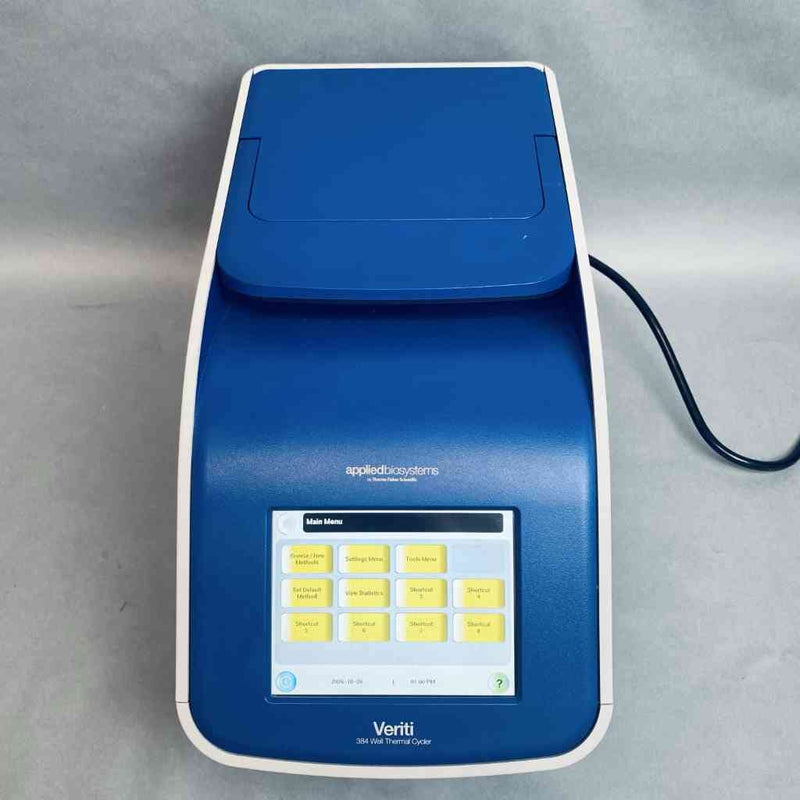

• Color Touchscreen Interface: Large 6.5-inch VGA LCD touchscreen provides effortless visual programming, graphical protocol display, and real-time thermal progression monitoring.
• VeriFlex Temperature Control Technology: Multiple independent Peltier heating/cooling zones provide precise thermal control and flexibility across the entire block surface.
• Fast & Standard PCR Cycling Modes: Offers dual operating profiles allowing seamless transition between traditional standard PCR protocols and accelerated fast-cycling chemistries.
• USB & Network Connectivity: Features front-accessible USB port for rapid protocol export/import and Ethernet network connectivity for remote instrument monitoring and firmware updates.

Product Specifications

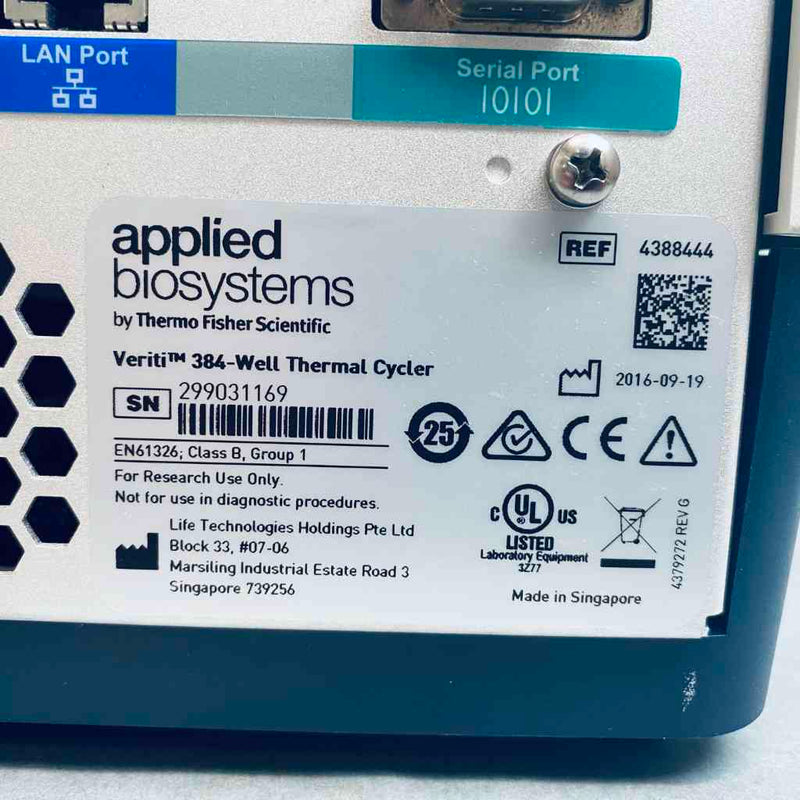

• Catalog / Part Number: 4388444
• Primary Manufacturer: Applied Biosystems (Thermo Fisher Scientific)

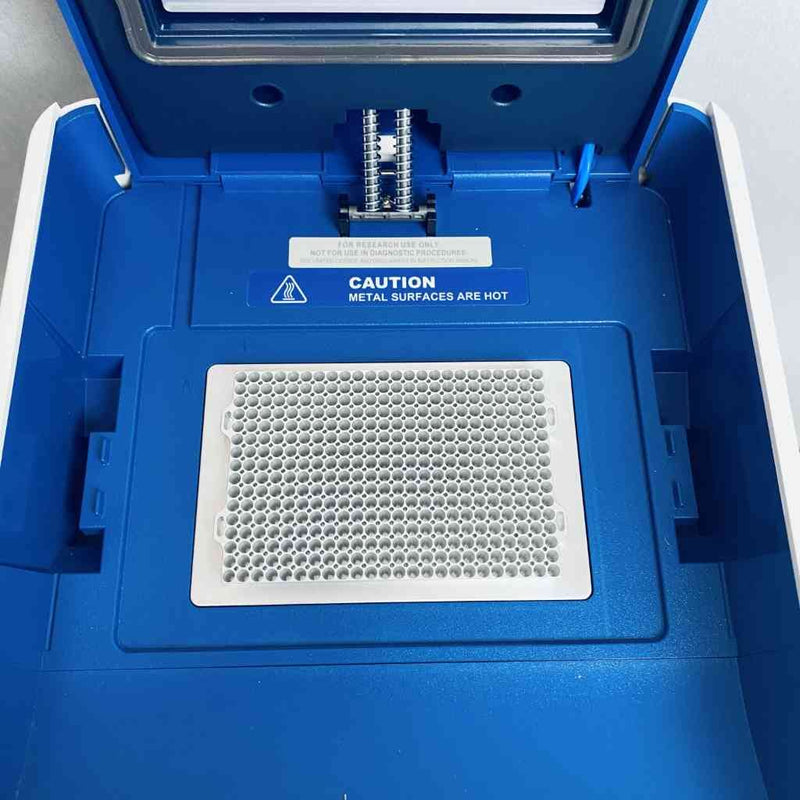

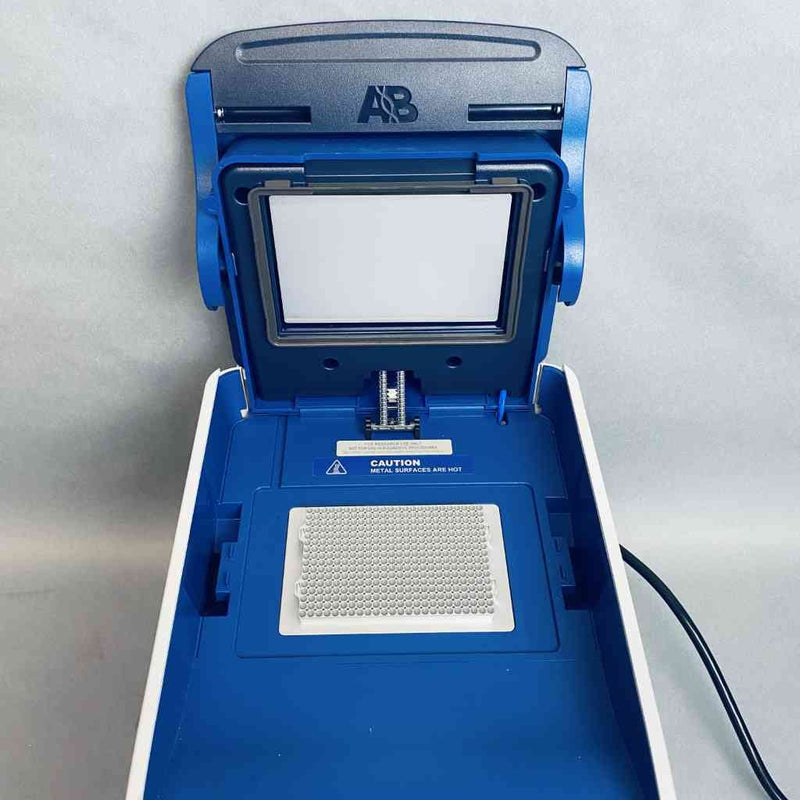

• Block Format: 384-Well High-Density Aluminum Block
• Supported Reaction Volume Range: 5 µL to 20 µL
• Display Interface: 6.5 in. (16.5 cm) Color Graphical Touchscreen
• Temperature Control Range: 4.0°C to 99.9°C
• Temperature Accuracy: ±0.25°C (35°C to 99.9°C)
• Temperature Uniformity: <0.5°C (30 seconds after clock start)
• Max Ramping Speed: Up to 3.0°C/sec (Block Max)
• Instrument Memory: Onboard storage for up to 800 protocols (USB expandable)
• Dimensions & Weight: 24.5 cm (W) x 48.5 cm (D) x 24.5 cm (H); 11.4 kg (25 lbs)

Key Benefits & Applications

• High-Throughput Genomic Screening: Maximizes sample processing capacity for large-scale genotyping, gene expression profiling, and biomarker validation.
• Low-Volume Reaction Optimization: Reduces master mix consumption per reaction, cutting total reagent costs in high-volume laboratory settings.
• Multi-User Shared Facilities: User-specific password protection and intuitive touch control make the instrument ideal for multi-investigator research centers and core labs.
