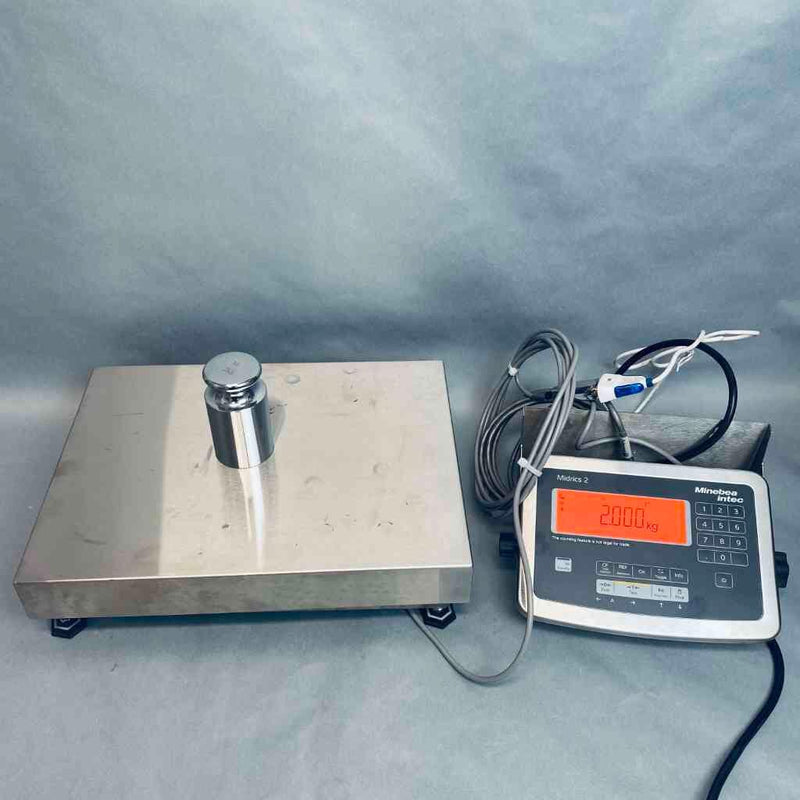

Minebea Intec Midrics 2 Indicator with 16 x 12 in. 50 lbs Lab Scale

Minebea Intec Midrics 2 Digital Indicator (MIS2UR-V2) with 16 x 12 in. Bench Scale Platform (50 lbs / 25 kg Capacity)

The Minebea Intec Midrics 2 Industrial Bench Scale System combines the advanced MIS2UR-V2 Digital Indicator with a rugged 16 x 12 inch low-profile stainless steel weighing platform to deliver precise, heavy-duty mass measurement for laboratory, pharmaceutical, chemical, and biomanufacturing environments. Engineered with a maximum capacity of 50 lbs (25 kg), this bench scale system features a strain-gauge load cell design that delivers exceptional resolution, stability, and fast response times. The Midrics 2 indicator features a backlit custom LCD display, full numerical keypad, and specialized weighing applications including parts counting, checkweighing, percentage weighing, and formulation/net-total formulation. Housed in an IP65-rated stainless steel enclosure, the system is fully equipped to handle aggressive industrial cleaning and moisture washdowns while maintaining compliance with strict quality control standards.

Technical Performance & Structural Attributes

• High-Precision Weighing Core: Precision strain-gauge load cell architecture ensures accurate weight readings with rapid stabilization for high-throughput batching and checkweighing.
• Midrics 2 Advanced Application Suite: Integrated firmware supports multi-step counting, percentage target determination, upper/lower limit checkweighing with visual status, and totalizing functions.
• Full Numeric Keypad & Backlit Display: Feature-rich control panel with tactile keys for quick tare entries, ID numbering, and reference sample weight inputs under low-light conditions.
• Washdown Stainless Steel Construction: AIS 304 stainless steel weighing pan and IP65-rated indicator housing offer superior resistance against chemical spills, dust ingress, and water jet washdowns.
• Flexible Data Connectivity: Includes bidirectional RS-232 communication interface for seamless integration with laboratory information management systems (LIMS), printers, and automated data loggers.

Product Specifications

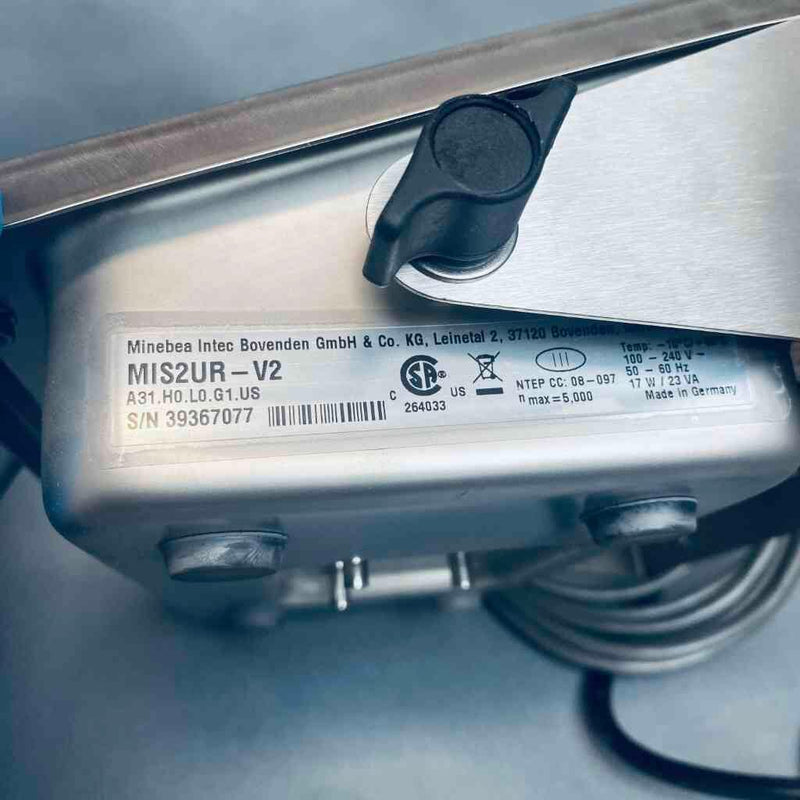

• Indicator Model Number: MIS2UR-V2 (Midrics 2 Series)
• Primary Manufacturer: Minebea Intec (formerly Sartorius Intec)
• Maximum Weighing Capacity: 50 lbs / 25 kg
• Readability / Resolution: High-resolution industrial display (typically 0.002 lbs / 1 g dependent on calibration profile)

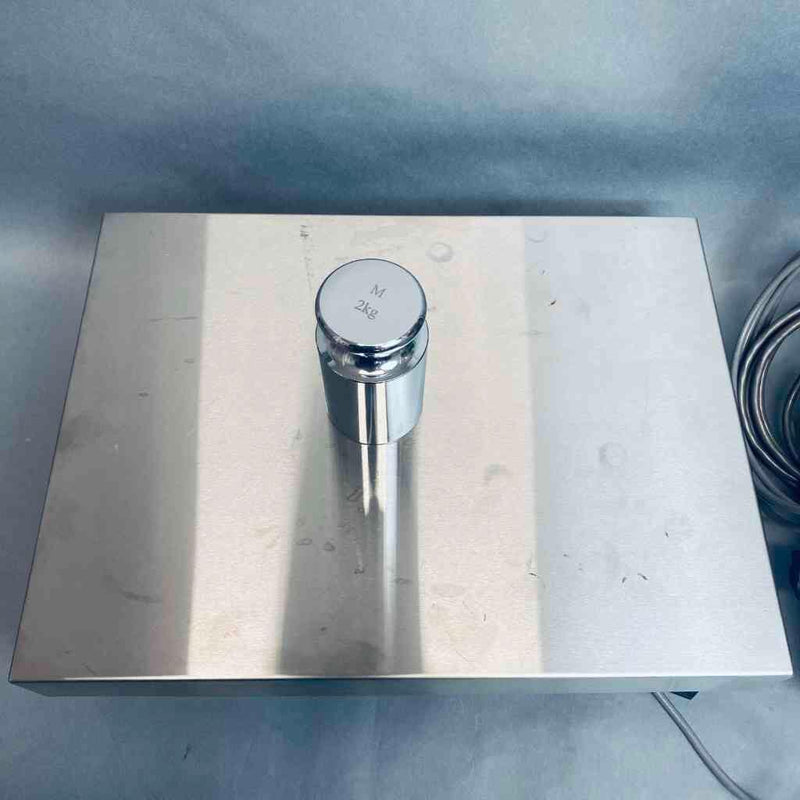

• Platform Dimensions: 16 in. x 12 in. (400 mm x 300 mm)
• Platform & Pan Material: AISI 304 Stainless Steel
• Ingress Protection Rating: IP65 (Indicator Display Enclosure)

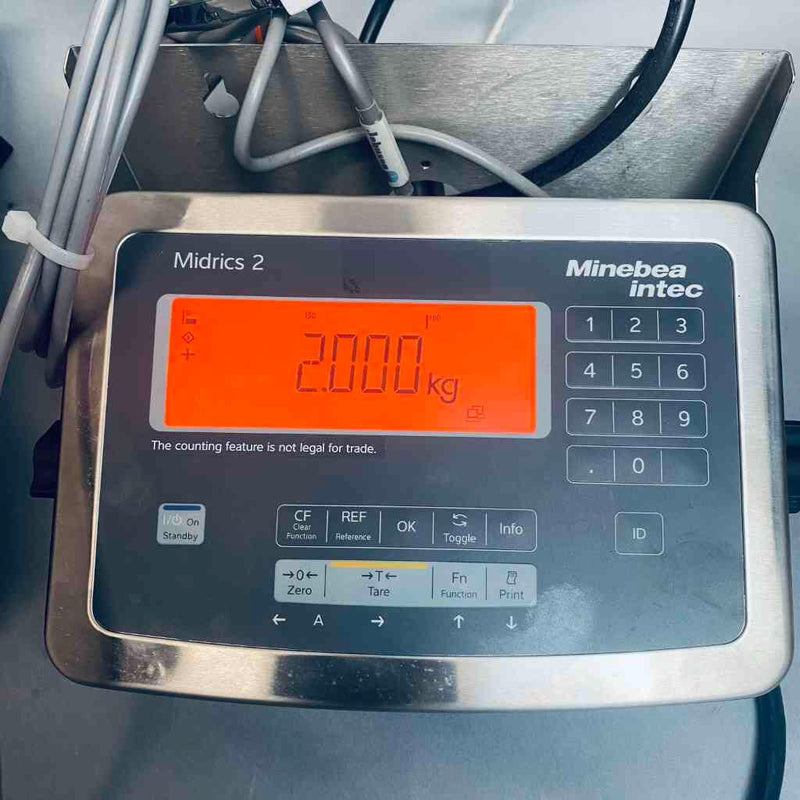

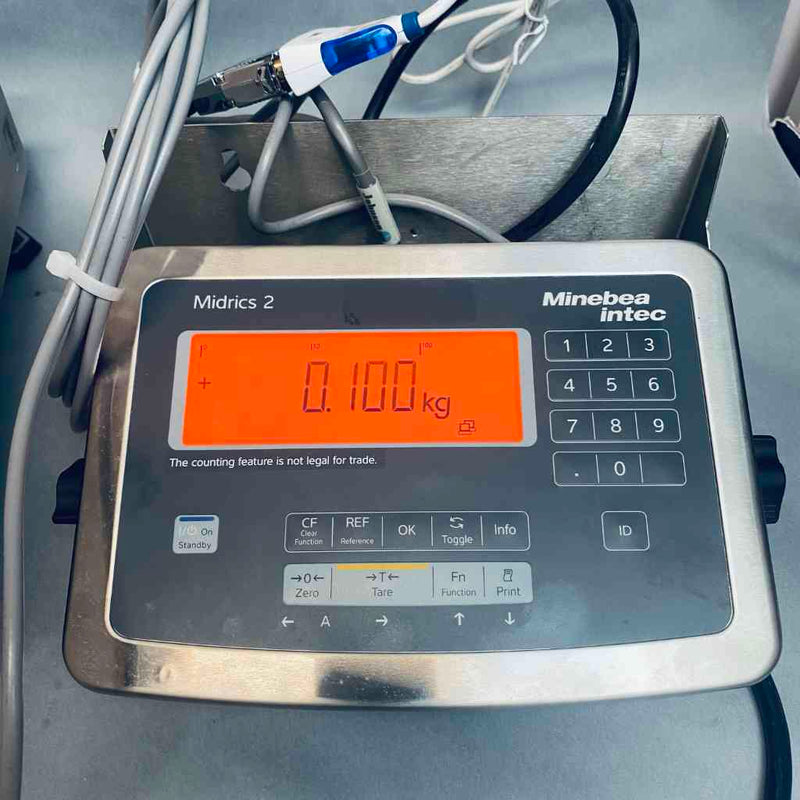

• Display Type: Backlit LCD with 20 mm Digit Height and Bar Graph Indicator
• Data Interface: RS-232 Serial Port (DB9)
• Power Supply: 100–240 V AC Internal Universal Power Supply

Key Benefits & Applications

• Pharmaceutical & Chemical Batching: Ideal for precise reagent formulation, raw material receiving, and bulk container filling operations.
• Quality Control & Checkweighing: Speeds up production line inspection by quickly verifying product weight tolerances against predefined target ranges.
• Inventory Parts Counting: Accurate piece-counting capability streamlines hardware, consumable component, and small container inventory audits.
