Sartorius Industrial Heavy Duty Floor Scale 2200 lbs Stainless Weighing Platform

Sartorius Industrial / Minebea Intec Heavy-Duty Stainless Steel Floor Scale, 2,200 lbs / 1,000 kg Capacity (IFS4-1000NN-I)

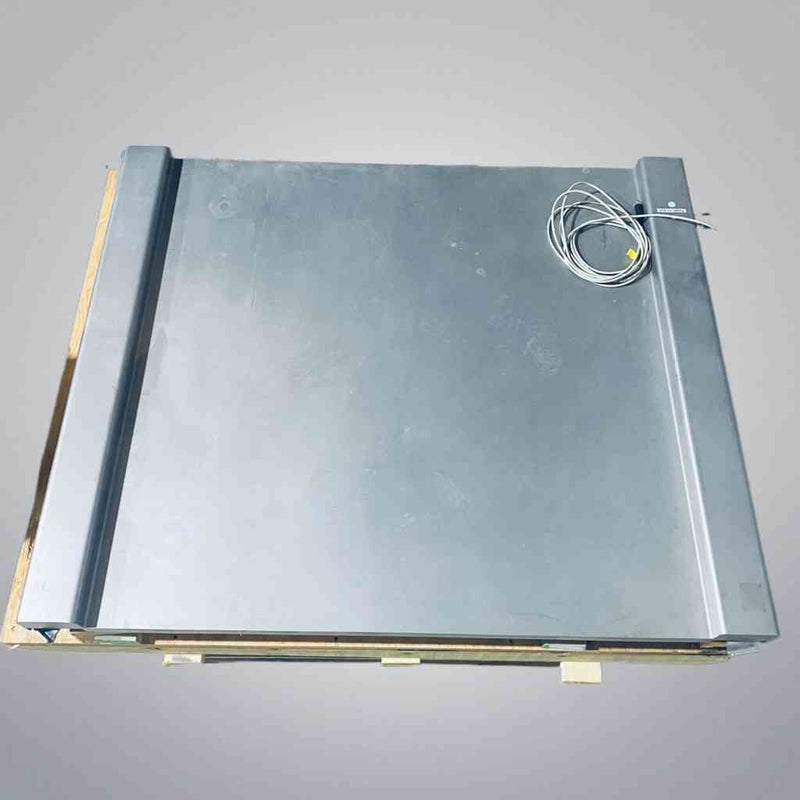

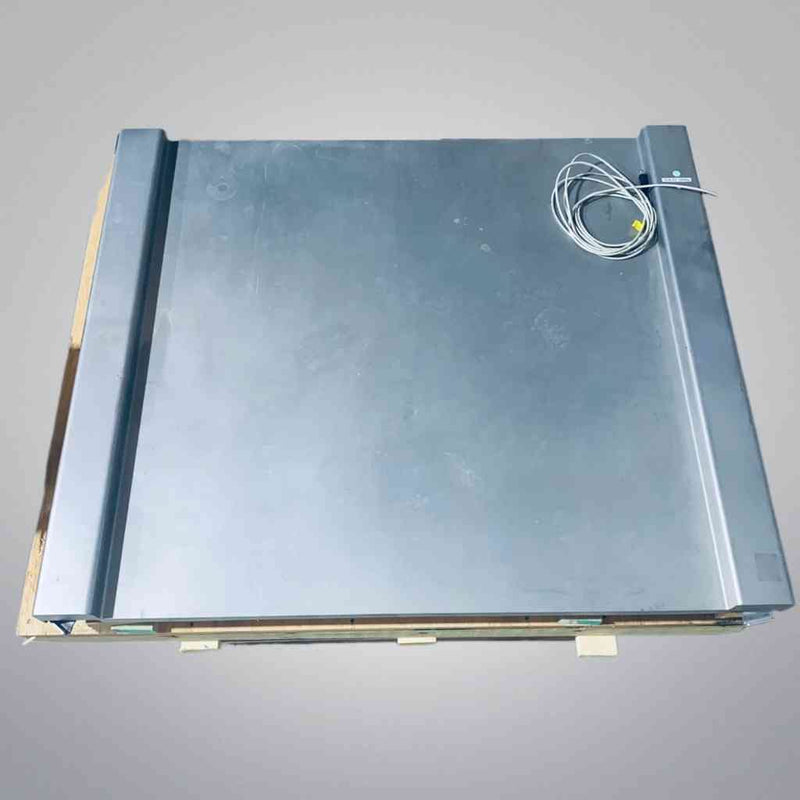

The Sartorius Industrial / Minebea Intec High-Capacity Floor Scale System (IFS4-1000NN-I) is a heavy-duty, ultra-low-profile industrial weighing platform engineered for high-capacity process weighing, bulk raw material receiving, chemical formulation, and pharmaceutical manufacturing operations. Built to support heavy payloads up to 2,200 lbs (1,000 kg), this floor scale features a spacious 49.2 x 49.2 inch (1250 x 1250 mm) platform constructed entirely from passivated, bead-blasted AISI 304 stainless steel. Equipped with four hermetically sealed IP68-rated load cells, an integrated drive-on ramp, and an ultra-low profile height, the IFS4-1000NN-I allows smooth, effortless loading of heavy drums, mobility carts, and palletized containers. Designed to meet FDA and HACCP sanitary guidelines, this system withstands aggressive chemical washdowns and harsh cleanroom environments while delivering exceptional measurement repeatability.

Technical Performance & Structural Attributes

• High-Capacity Flat-Bed Architecture: Rigid AISI 304 stainless steel frame supports heavy dynamic loads up to 2,200 lbs with minimal deck deflection.
• Hermetically Sealed IP68 Load Cells: Four stainless steel strain-gauge load cells provide complete protection against dust ingress and high-pressure liquid washdowns during routine plant sanitation.

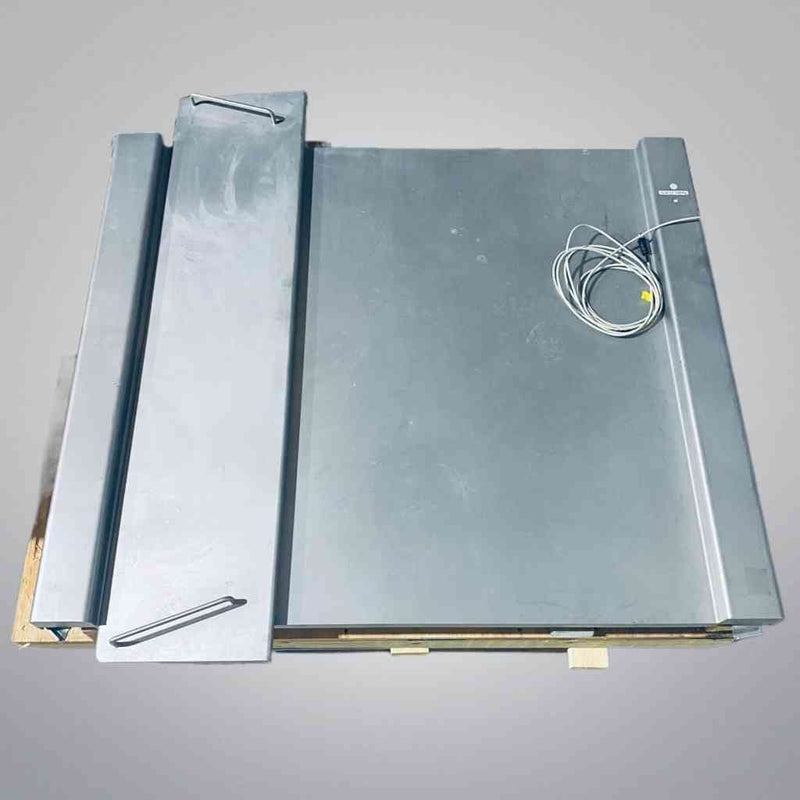

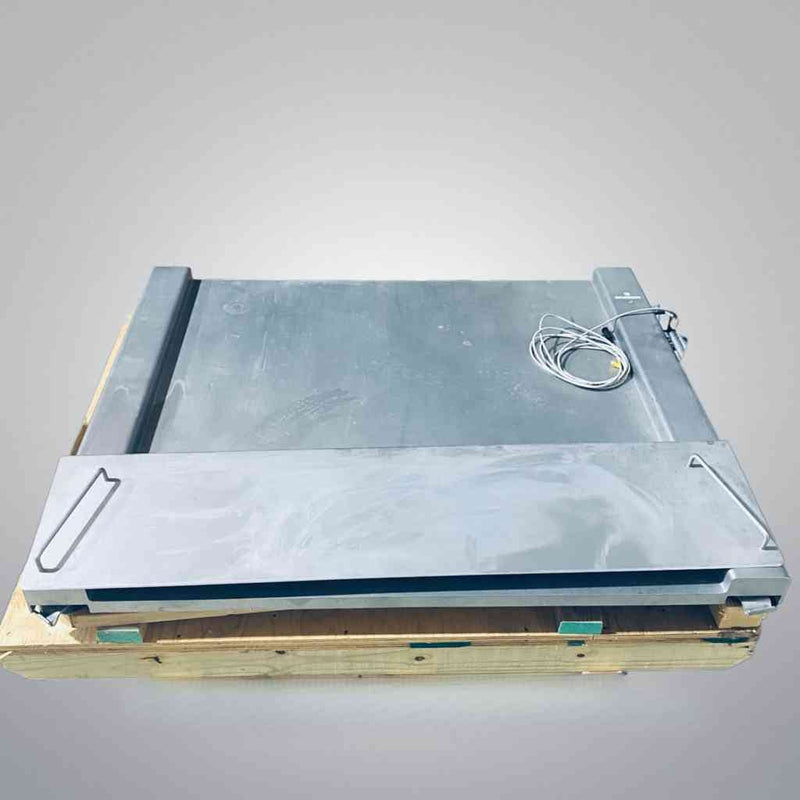

• Ultra-Low-Profile Platform with Drive-On Ramp: Features an integrated drive-on ramp and low platform height to minimize physical effort during drum and hand-truck loading without requiring pit installation.
• HACCP & FDA Compliant Surface Finish: Smooth, bead-blasted stainless steel surface eliminates microbial crevices and permits rapid surface decontamination.

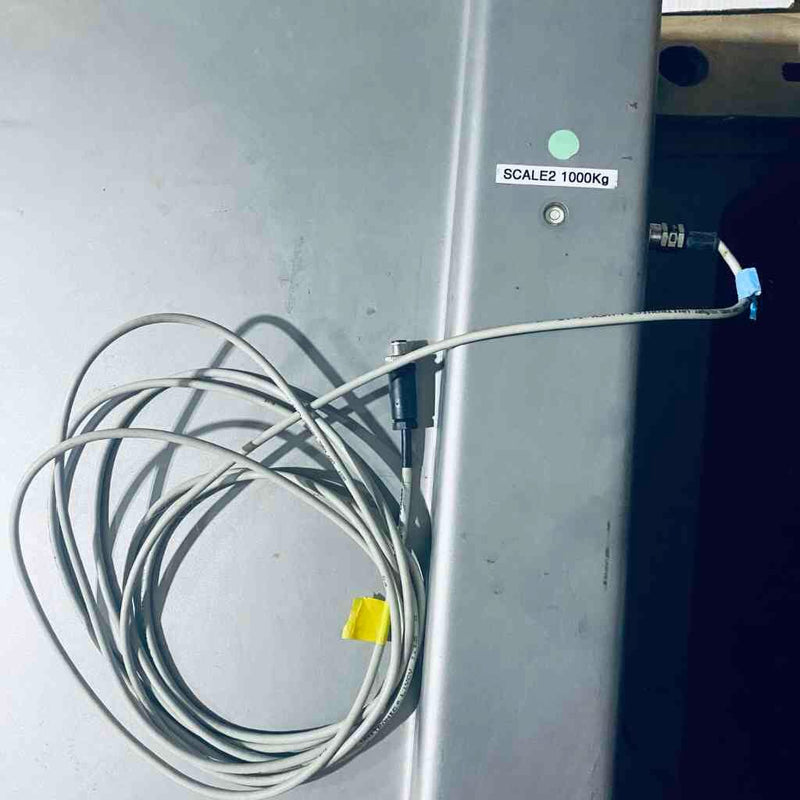

• Versatile Signal Integration: Features a 6-meter connection cable for flexible positioning of benchtop, wall-mounted, or floor-stand industrial indicators (such as Sartorius Combics or Midrics series terminals).

Product Specifications

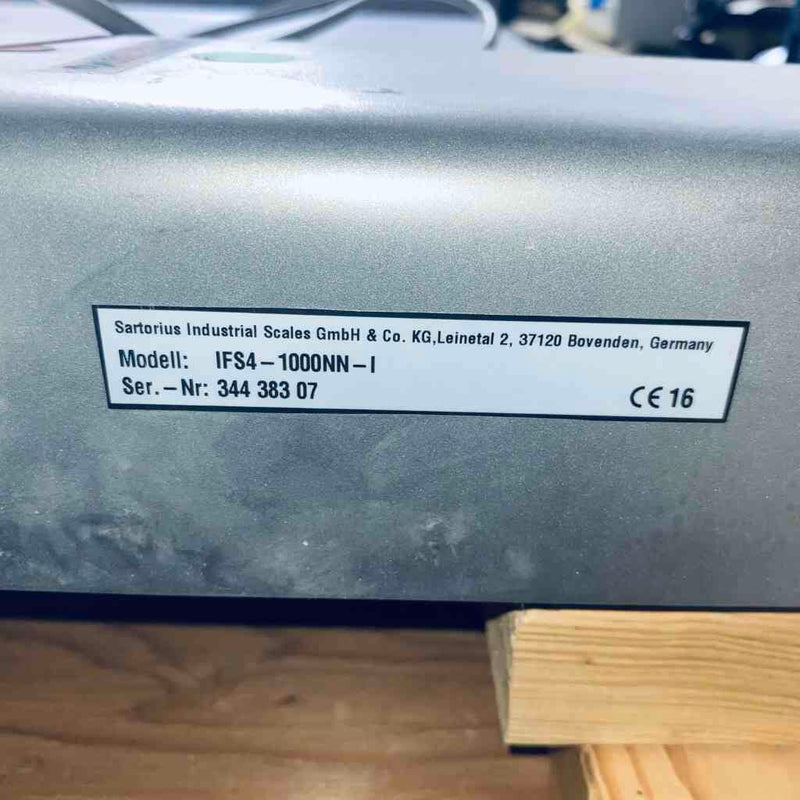

• Model / Part Number: IFS4-1000NN-I (101320)
• Primary Manufacturer: Sartorius Industrial / Minebea Intec
• Equipment Category: Industrial Heavy-Duty Floor Scale Platform
• Maximum Weighing Capacity: 2,200 lbs / 1,000 kg
• Readability / Resolution: 0.1 lbs / 0.05 kg (up to 30,000d scale intervals)
• Platform Dimensions: 49.2 in. x 49.2 in. (1,250 mm x 1,250 mm)
• Platform Base Material: AISI 304 Bead-Blasted Stainless Steel
• Ingress Protection Rating: IP68 (Platform & Load Cell Junction Box Assembly)
• Load Cell Configuration: 4 Strain-Gauge Hermetically Sealed Stainless Steel Load Cells
• Interface Cable Length: 6 meters (19.7 ft)

Key Benefits & Applications

• Bulk Drum & Container Weighing: Ideal for precise batching and inventory measurement of large 55-gallon chemical drums, IBC totes, and raw material containers.
• cGMP Cleanroom & Hygienic Processing: Meets FDA and HACCP requirements for sanitary production suites in biopharmaceutical, food, and beverage facilities.
• Effortless Material Handling: Low platform height and included drive-on ramp eliminate the need for costly floor pits or heavy overhead hoists during container loading.
