Anderson Pressure Gauge 60 Psi 90 mm Display 2 Inch Tri-Clamp Connection

by Anderson
Availability:
Only 1 left!
SKU 11010
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00

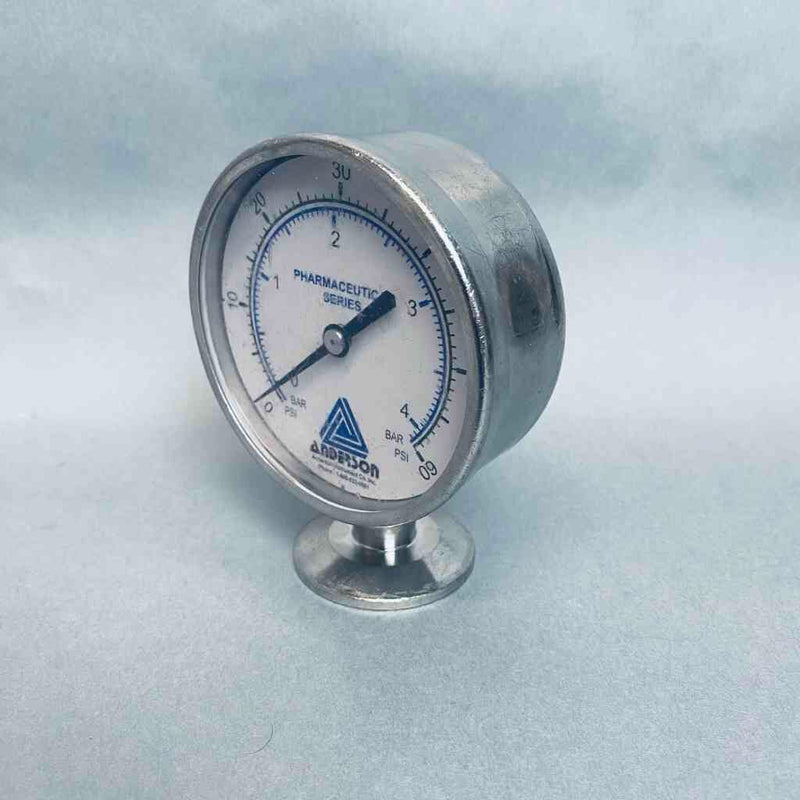

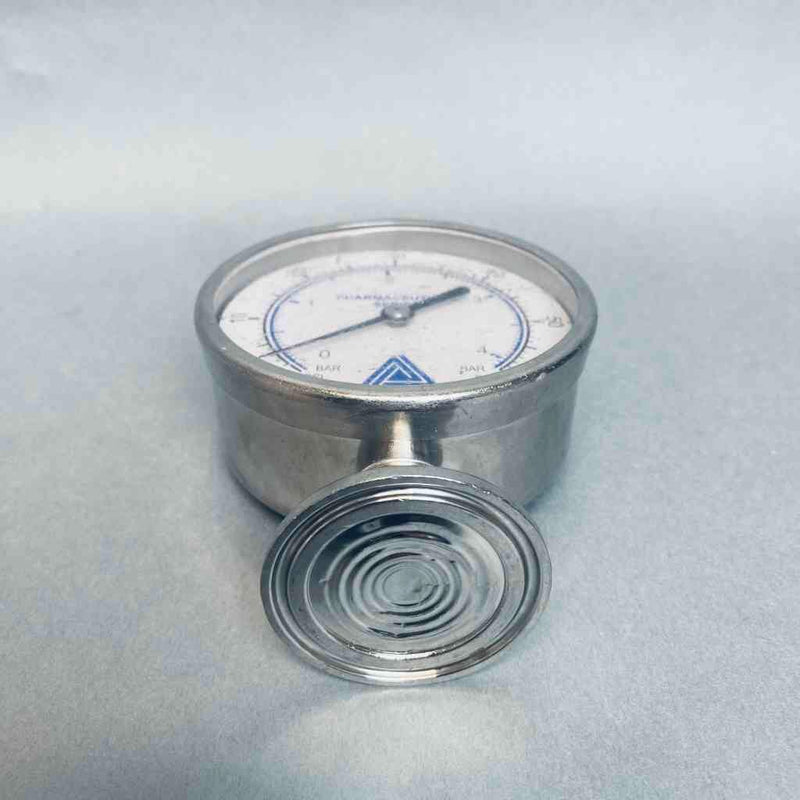

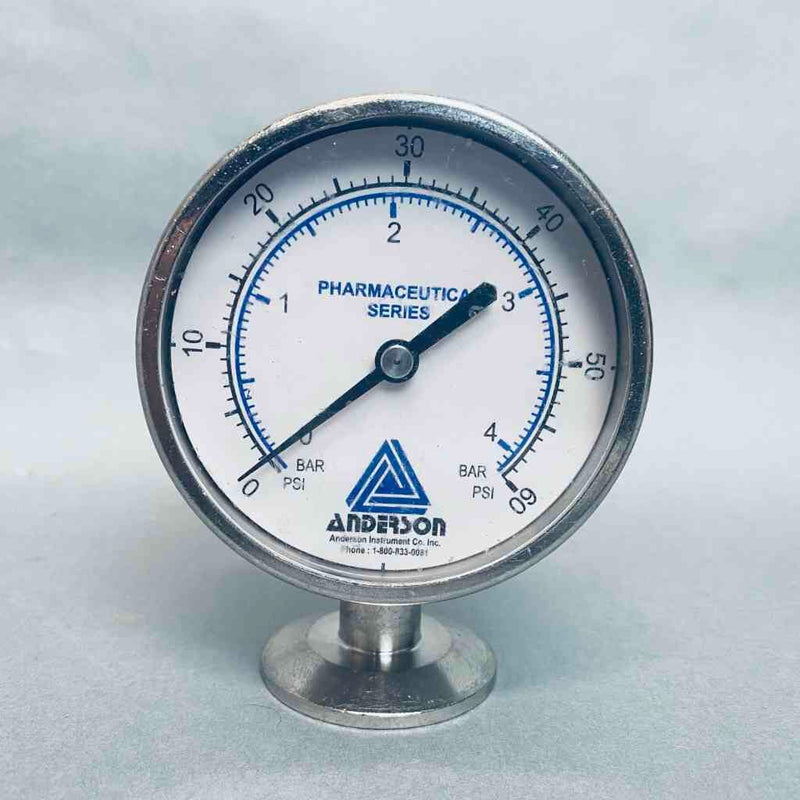

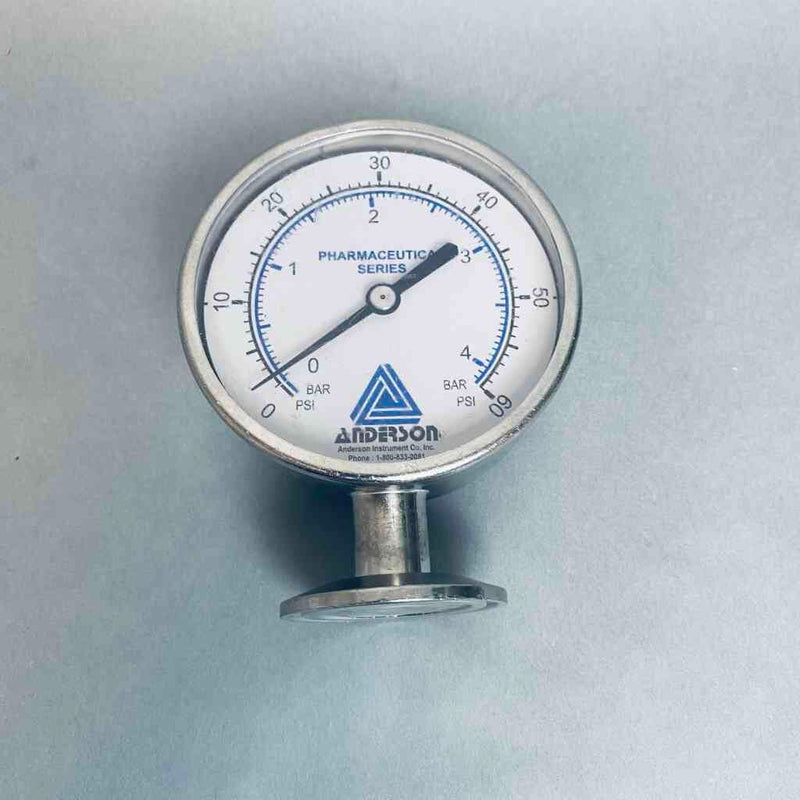

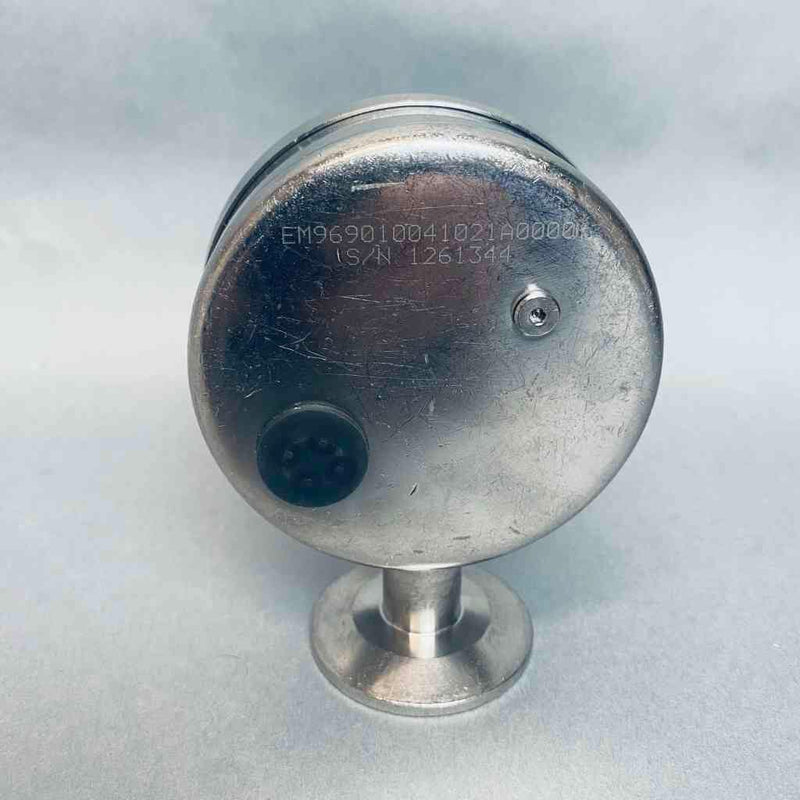

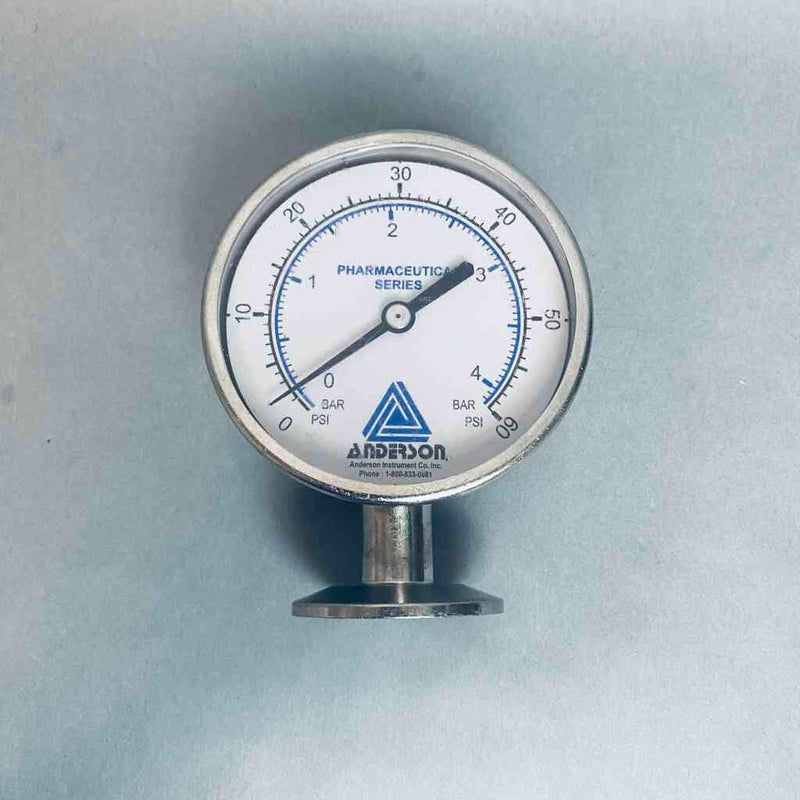

Anderson-Negele Sanitary Pressure Gauge, 0 to 60 PSI, 90 mm Display, 2 in. Tri-Clamp Connection (EM969010041021A0000)

The Anderson-Negele Sanitary Pressure Gauge (EM969010041021A0000) is a high-precision, heavy-duty pressure measurement instrument designed specifically for hygienic applications in biopharmaceutical, food, beverage, and high-purity chemical processing environments. Featuring a large 90 mm (3.5 in.) dial display, this gauge provides crisp, high-visibility pressure monitoring across a 0 to 60 PSI range. Built with a welded 316L stainless steel diaphragm and a standard 2 in. Tri-Clamp (Tri-Clover) hygienic process connection, the EM series ensures crack-free, CIP/SIP (Clean-In-Place / Steam-In-Place) cleanable fluid contact surfaces that comply with 3-A sanitary standards. Engineered to withstand mechanical vibration, thermal shock, and aggressive cleaning regimens, this gauge offers reliable, zero-dead-leg pressure measurement for critical bioprocessing pipelines and vessel monitoring.

Technical Performance & Structural Attributes

  • Hygienic Flush Diaphragm Design: 316L stainless steel welded diaphragm prevents bacterial trap sites, dead-legs, and process fluid contamination.
  • 90 mm High-Visibility Dial: Large, easy-to-read dual scale dial face with anti-parallax pointer allows effortless visual checks from a distance.
  • CIP/SIP Process Compatibility: Withstands high-temperature steam sterilization (SIP) and automated caustic/acid chemical clean-in-place (CIP) cycles.
  • 3-A Sanitary Certified Construction: Designed and manufactured to meet 3-A standards for sanitary fluid handling equipment.
  • Durable Stainless Steel Housing: Rugged, polished stainless steel case and bezel protect internal movement against moisture ingress and harsh washdown procedures.

Product Specifications

  • Catalog / Model Number: EM969010041021A0000
  • Primary Manufacturer: Anderson-Negele (Anderson Instrument Company)
  • Pressure Range: 0 to 60 PSI (0 to 4 bar)
  • Dial Display Size: 90 mm (3.5 in.) Diameter
  • Process Connection Size: 2 in. Tri-Clamp (Tri-Clover Sanitary Fitting)
  • Wetted Materials: 316L Stainless Steel (Polished Sanitary Finish, $R_a \le 25 \mu\text{in.}$)
  • Housing Material: 304 Stainless Steel Case
  • Fill Fluid: Food-Grade / Pharmaceutical-Grade Mineral Oil or Glycerin (FDA Approved)
  • Accuracy Rating: ±1.5% of Full Scale
  • Sanitary Compliance: 3-A Sanitary Standards

Key Benefits & Applications

  • Biopharmaceutical Pipeline Monitoring: Ideal for monitoring filtration pressure, tangential flow filtration (TFF), and chromatography column inlet pressures.
  • Food & Beverage Processing: Provides safe, sanitary pressure measurement in dairy, brewing, beverage filling, and aseptic processing lines.
  • Vessel & Tank Pressure Sensing: Mounts cleanly onto sanitary mixing tanks, bioreactors, and storage vessels without risking batch contamination.

All product names, logos, and brands are property of their respective owners. Anderson-Negele and Anderson Instrument Company are registered trademarks of Anderson Instrument Co., Inc.

Please note that Life Sciences Trading is not a factory-authorized distributor of the products listed in this store. The items have been acquired as surplus from leading life sciences companies.
