CPC Colder Sanitary Fitting Coupling Insert 1.5 in. ID Pack of 25 Inserts

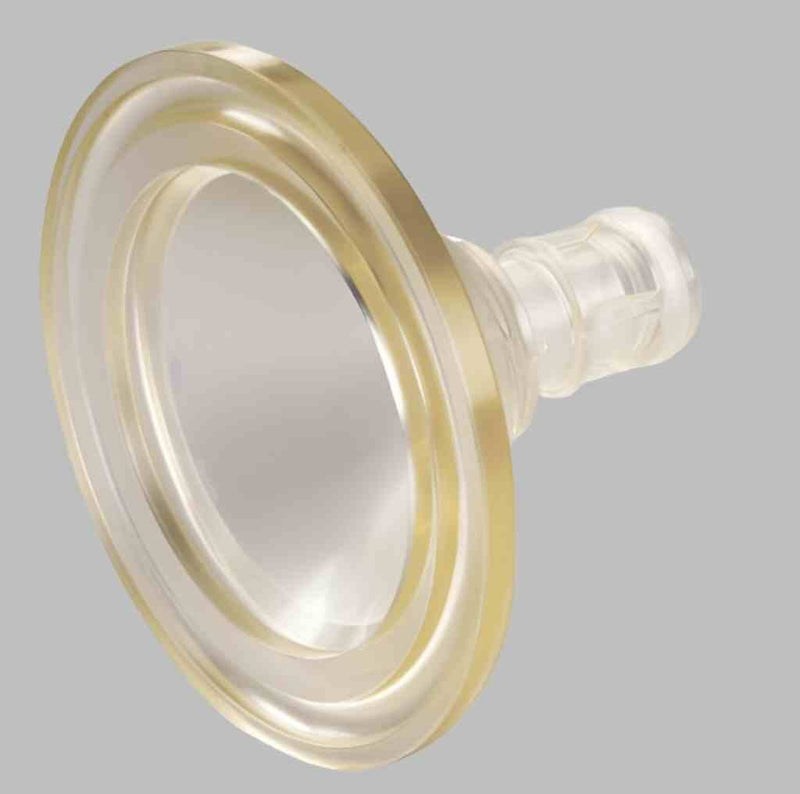

CPC MPC44024T39M 1.5" Sanitary Non-Valved Coupling Insert (Polysulfone)

The CPC MPC44024T39M is a high-performance, medical-grade coupling insert designed to bridge the gap between standard sanitary process equipment and single-use fluid handling systems. This insert features a 1.5-inch sanitary (Tri-Clamp) flange termination on one end and a standard MPC quick-connect interface on the other. Manufactured from USP Class VI Polysulfone (PSU), it offers exceptional chemical resistance and thermal stability, making it suitable for both upstream fermentation and downstream purification processes. The non-valved, straight-through design ensures an unobstructed flow path, minimizing pressure drop and turbulence—critical for protecting shear-sensitive biological products during aseptic transfer.

Technical Performance and Design

• Sanitary Tri-Clamp Interface: The 1.5-inch sanitary flange allows for direct attachment to standard stainless steel tanks, filter housings, or manifold headers using traditional gaskets and clamps, providing a leak-proof aseptic seal.

• High-Purity Polysulfone Construction: The amber-tinted Polysulfone material is highly durable and compliant with USP Class VI and ADCF (Animal Derived Component Free) standards, ensuring minimal extractables in sensitive bioprocess streams.

• Unobstructed "Straight-Through" Flow: As a non-valved insert, it provides a full-bore flow path that prevents sample entrapment and is easy to clean or flush during processing.

• Broad Sterilization Compatibility: Engineered to withstand rigorous sterilization protocols, including gamma irradiation (up to 50 kGy) and repeated autoclaving (up to 25 cycles at 132°C), ensuring it fits seamlessly into both single-use and multi-use workflows.

Product Specifications

• Catalog Number: MPC44024T39M

• Termination Size: 1.5-inch Sanitary (Tri-Clamp)

• Coupling Series: MPC Series (Quick-Connect)

• Material: Polysulfone (PSU), USP Class VI, ADCF

• Valve Option: Non-Valved (Straight-Through)

• Pressure Range: Vacuum to 60 psi (4.1 bar)

• Temperature Range: -40°F to 300°F (-40°C to 149°C)

• Color/Finish: Amber Tint / Natural Finish

Key Benefits & Applications

• Aseptic Fluid Transfer: Enables the rapid connection of single-use tubing assemblies to large-scale stainless steel bioreactors or harvest vessels without the need for complex hard-piping.

• Process Modularization: Simplifies the transition from pilot-scale to clinical manufacturing by allowing researchers to use standardized MPC connections across different equipment platforms.

• Shear-Sensitive Products: The unobstructed internal geometry is ideal for transferring live cell cultures, vaccines, and large proteins where maintaining biological activity is paramount.

• Ergonomic Operation: When mated with an MPC series body, the thumb-latch mechanism allows for intuitive, one-handed connection and disconnection, even when wearing heavy laboratory gloves.
