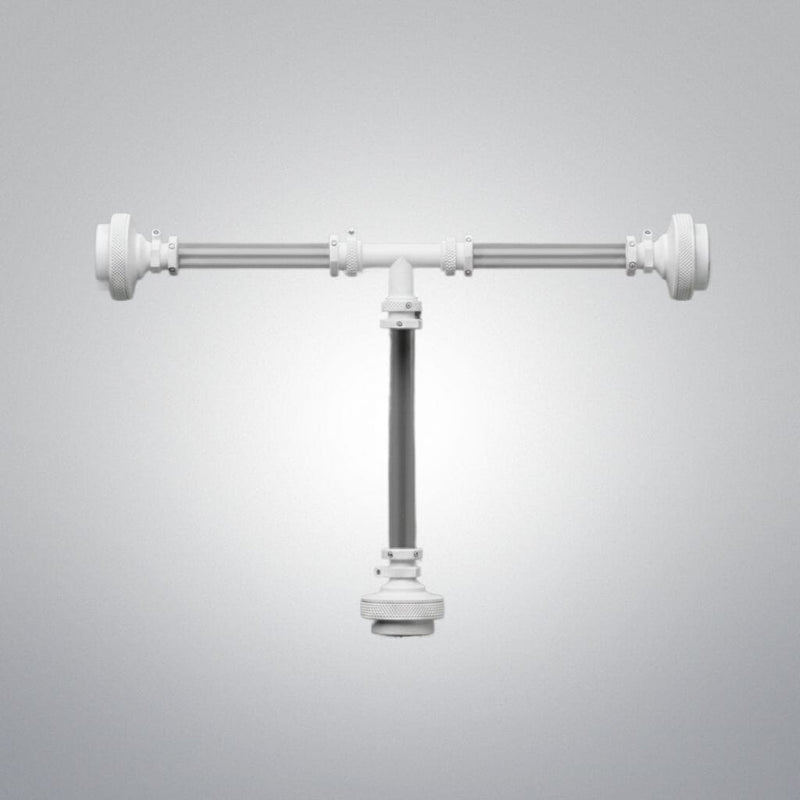

Cytiva ReadyCircuit Jumper Single Use 3 Ports T-Manifold

Cytiva 12410163 ReadyCircuit™ Jumper Tube (3-Port T-Manifold, ReadyMate™ Connectors)

The Cytiva 12410163 is a high-purity, single-use jumper tube assembly designed to provide a seamless "T" junction within single-use bioprocessing manifolds. This assembly consists of platinum-cured silicone tubing configured as a 3-port T-manifold, with each port terminated in a ReadyMate™ genderless aseptic connector. The ReadyMate™ system is widely recognized for its alpha-numeric alignment and genderless design, which significantly simplifies the connection process by allowing any two connectors to be mated regardless of orientation. Fully sterilized and ready for immediate integration, this jumper tube is a critical component for fluid splitting, sampling, or reagent addition in upstream and downstream biopharmaceutical manufacturing.

Technical Performance and Design

• Genderless ReadyMate™ Technology: Features three ReadyMate™ connectors that eliminate the need for "male" and "female" inventory management. The genderless design reduces the risk of incorrect connections and facilitates rapid assembly in cleanroom environments.

• Platinum-Cured Silicone Tubing: Constructed with medical-grade, ultra-pure silicone that ensures exceptionally low extractables and high biocompatibility, making it ideal for sensitive protein-based drugs and vaccines.

• High-Integrity T-Junction: The manifold junction is engineered to maintain a smooth internal fluid path, minimizing turbulence and shear stress, which is essential for protecting sensitive biological products during transfer.

• Gamma-Irradiated & Ready-to-Use: Provided sterile and individually packaged, this jumper tube eliminates the need for in-house cleaning and sterilization (CIP/SIP), significantly reducing validation overhead and lead times.

Product Specifications

• Catalog Number: 12410163 (Old GE Code: 12-4101-63)

• Configuration: 3-Port T-Manifold Jumper

• Connector Type: ReadyMate™ Genderless Aseptic Connectors (at all 3 ports)

• Tubing Material: Platinum-Cured Silicone

• Tubing Dimensions: 3/8 inch (9.5 mm) ID (Standard ReadyCircuit jumper diameter)

• Sterility: Sterile (Gamma Irradiated, SAL 10⁻⁶)

• Regulatory: USP Class VI compliant; Animal-Derived Component Free (ADCF).

Key Benefits & Applications

• Fluid Splitting & Diversion: Frequently used to split a main harvest stream into multiple storage bags or to divert a portion of the flow toward an analytical sampling port.

• Reagent & Buffer Addition: Provides a convenient "in-line" port for the aseptic addition of buffers, acids, or bases into a recirculating flow path during pH adjustment or diafiltration.

• Modular Bioprocessing: Seamlessly integrates with the entire ReadyCircuit™ ecosystem, including bags, filters, and sensors, allowing for the rapid assembly of customized, validated flow paths.

• Risk Mitigation: As a single-use component, it completely eliminates the risk of cross-contamination between batches, ensuring the highest level of safety for clinical and commercial drug production.
