Elitech GSP-6-02 Dual-Sensor Temperature and Humidity Data Logger for Cold Chain Management

The Elitech GSP-6-02 Temperature and Humidity Data Logger is a precision environmental monitoring instrument engineered for real-time and continuous temperature/humidity tracking throughout cold chain logistics, pharmaceutical storage, vaccine refrigeration, and laboratory tissue banking. Equipped with two external detachable sensors—one high-accuracy temperature probe and one combination temperature-humidity probe—the GSP-6-02 simultaneously measures ambient and targeted internal refrigeration conditions across a broad range of -40°C to 85°C (-40°F to 185°F) and 10% to 99% RH. Featuring a high-contrast LCD display with real-time readings, high/low alarm indicators, and an internal memory capacity of 16,000 data points, this logger ensures complete compliance with FDA 21 CFR Part 11, GSP, and CDC vaccine storage guidelines. Data export is streamlined via a plug-and-play USB connection, automatically generating encrypted PDF and Excel analytical reports without requiring specialized driver installations.

Technical Performance & Structural Attributes

• Dual External Probe Architecture: Features separate external temperature and combination temperature/humidity sensors with 2-meter cables for flexible placement inside ultra-low freezers, incubators, or transport containers.
• Automated Multi-Format Reporting: Plugs directly into standard USB interfaces to generate auto-formatted, unalterable PDF and CSV/Excel audit trails for immediate regulatory submission.
• High-Capacity Data Storage: Internal non-volatile flash memory logs up to 16,000 data points (8,000 temperature and 8,000 humidity records) with user-configurable logging intervals from 10 seconds to 24 hours.
• Visual & Audible Alarm Alerts: Dual visual LED indicators, display screen icons, and an audible buzzer trigger immediately upon detecting temperature or humidity threshold breaches.
• Integrated Magnetic Backing: Built-in rear magnet and mounting bracket permit secure, drill-free attachment to commercial refrigerator panels, stainless steel shelving, or cold transport walls.

Product Specifications

• Catalog / Model Number: GSP-6-02 (GSP-6 Series)
• Primary Manufacturer: Elitech Technology, Inc.
• Temperature Measurement Range: -40°C to 85°C (-40°F to 185°F)
• Humidity Measurement Range: 10% to 99% RH
• Temperature Accuracy: ±0.5°C (-20°C to +40°C); ±1.0°C (other ranges)
• Humidity Accuracy: ±3% RH (25°C, 20% to 90% RH); ±5% RH (other ranges)
• Memory Capacity: 16,000 Data Readings

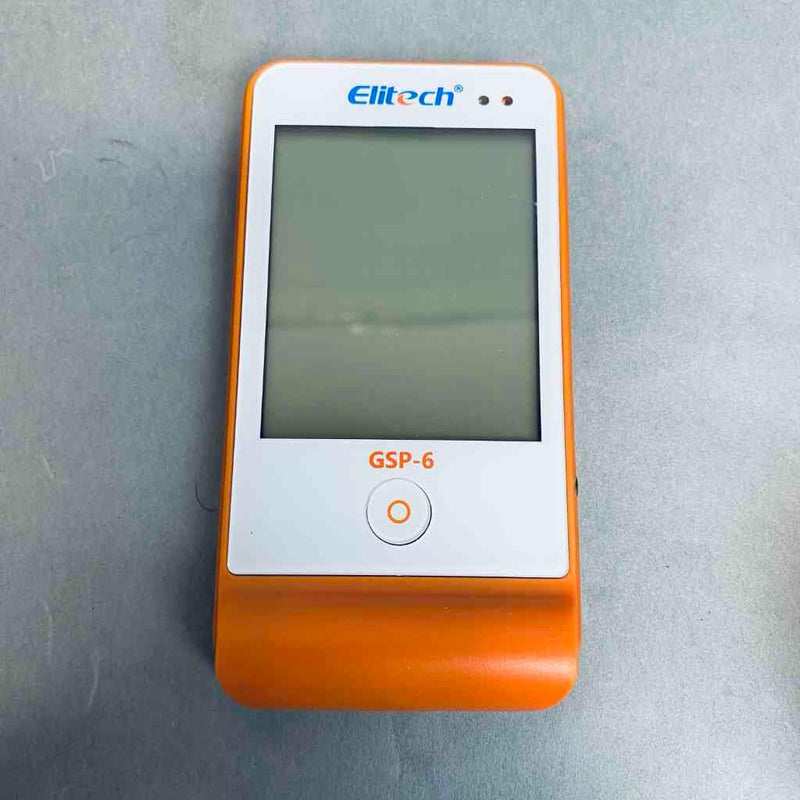

• Display Type: Multi-Function LCD Panel with Status Icons
• Data Interface: Universal USB 2.0 Interface

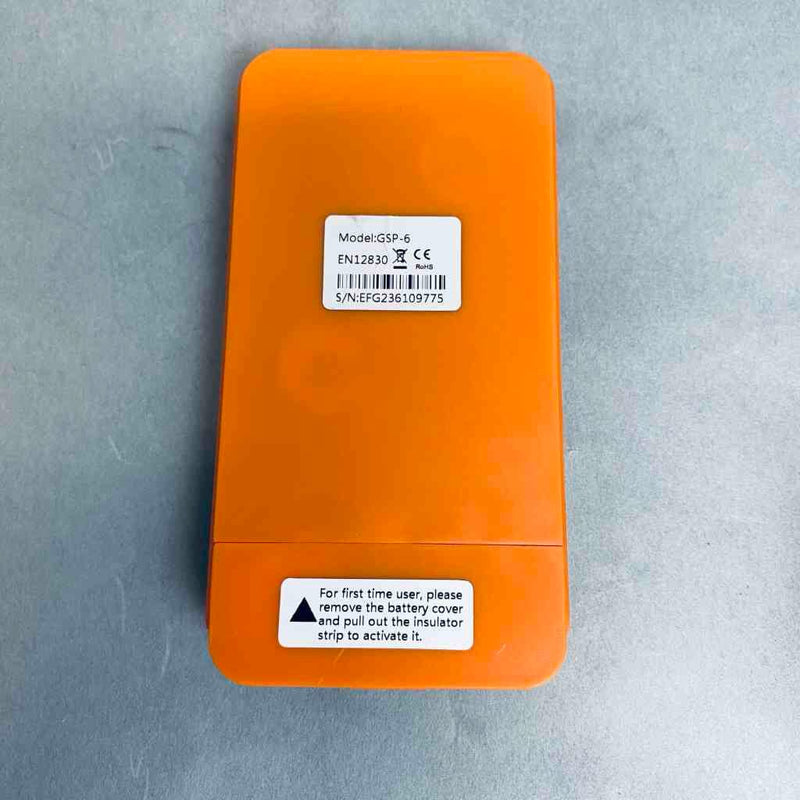

• Power Source: 3.6V AA Lithium Battery (Replaceable) or USB Cable Power
• Regulatory Compliance: FDA 21 CFR Part 11, CE, RoHS, GSP Standard

Key Benefits & Applications

• CDC & VFC Vaccine Storage Monitoring: Ideal for continuous monitoring of biologicals, vaccines, and reagents stored in medical-grade refrigerators and -20°C freezers.
• Cold Chain Logistics & Transit: Monitors environmental integrity during refrigerated truck transit, air freight container shipping, and last-mile cold box distribution.
• Laboratory & Pharmaceutical Warehousing: Provides continuous audit-ready temperature and humidity validation for stability chambers, biological repositories, and cleanroom storage.
