IKA HS 501 D S1 Digital Shaker with AS 501.1 Universal Clamping Roller Attachment

IKA HS 501 D S1 Digital Reciprocating Shaker with AS 501.1 Universal Clamping Attachment

The IKA HS 501 D S1 Digital Shaker is a heavy-duty, high-capacity reciprocating laboratory shaker engineered for continuous, high-load mixing, extraction, and shaking protocols. Featuring a horizontal reciprocating motion with a 30 mm stroke length and a maximum load capacity of 15 kg, this instrument is designed to handle demanding high-throughput applications in analytical chemistry, pharmaceutical research, and environmental testing. Powered by a robust microprocessor-controlled drive, the HS 501 D S1 provides precise, digital speed regulation from 0 to 300 RPM and an integrated digital timer (1 to 56 hours or continuous mode). Bundled with the AS 501.1 Universal Attachment—equipped with adjustable clamping rollers—it securely holds a wide variety of vessels including separating funnels, Erlenmeyer flasks, media bottles, and volumetric flasks across intense shaking speeds.

Technical Performance & Structural Attributes

• High Load Reciprocating Drive: Heavy-duty mechanical drive mechanism supports payloads up to 15 kg with consistent 30 mm horizontal stroke motion.

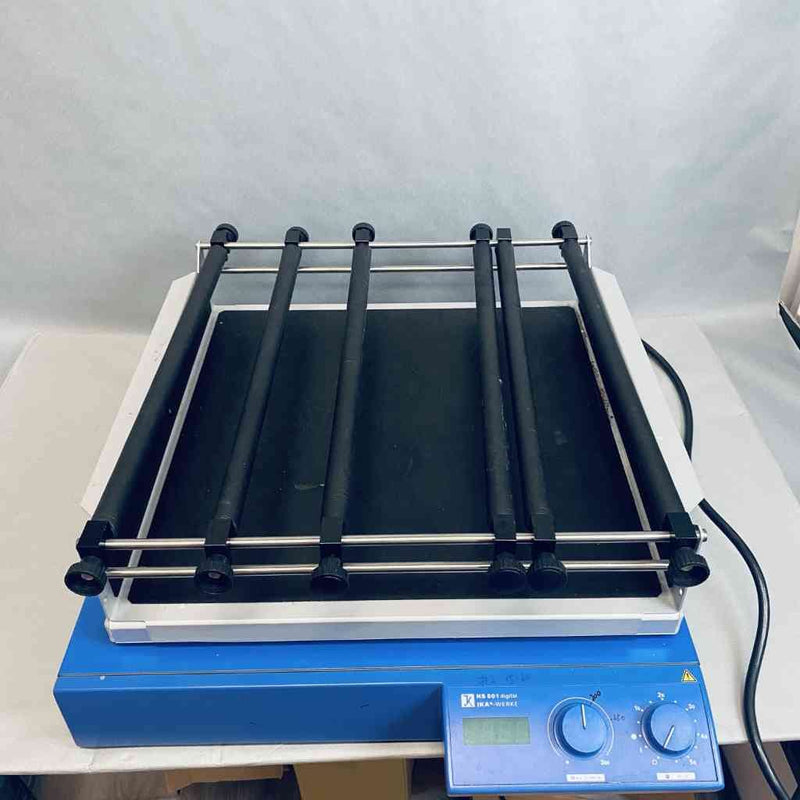

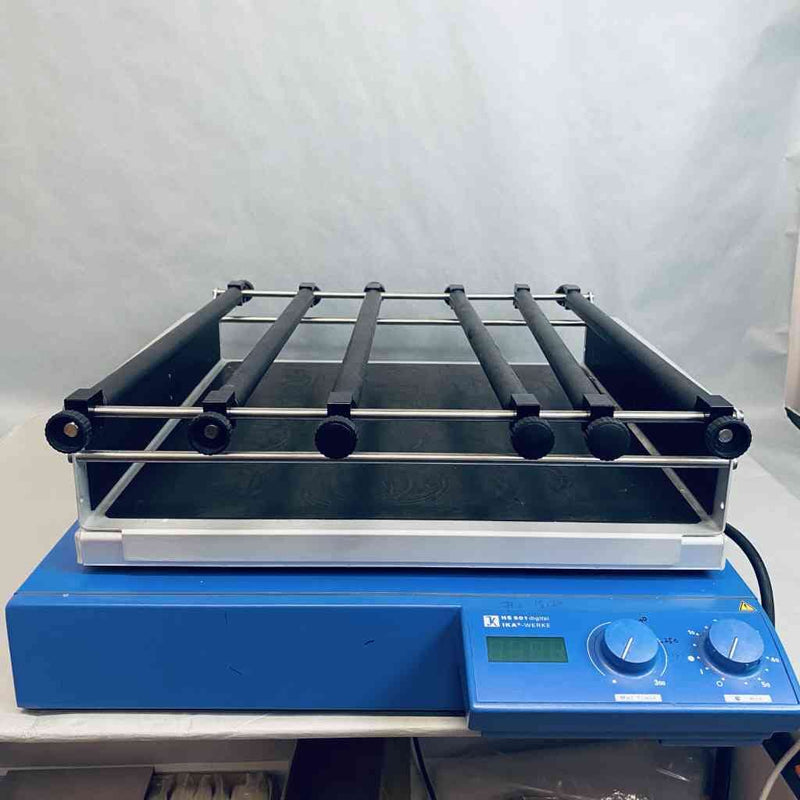

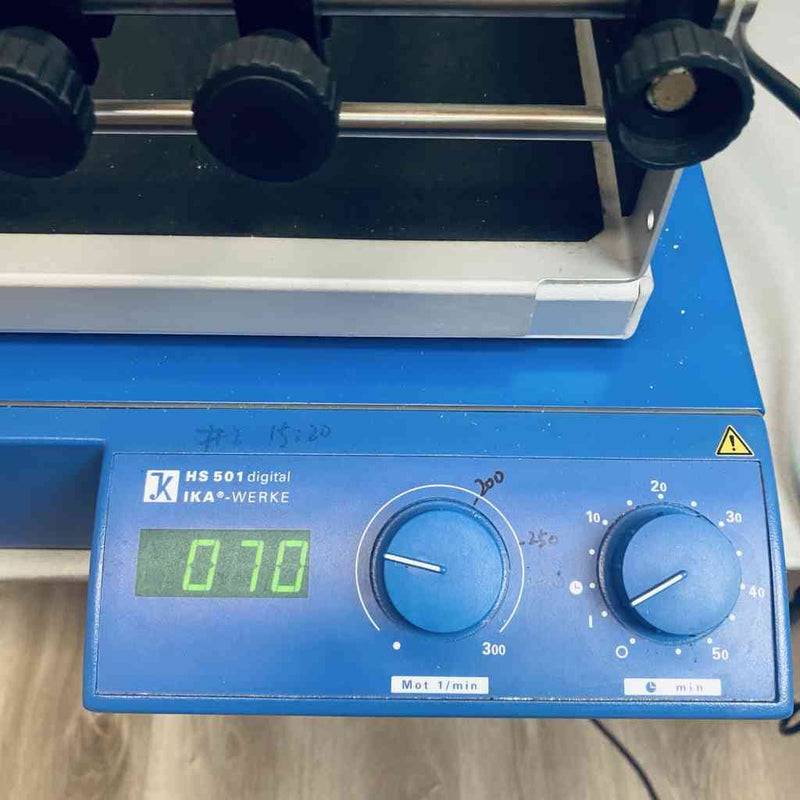

• Digital LED Speed & Timer Display: Dual digital LED screens display set and actual parameters for speed (0 to 300 RPM) and time (1 minute to 56 hours or continuous operation).

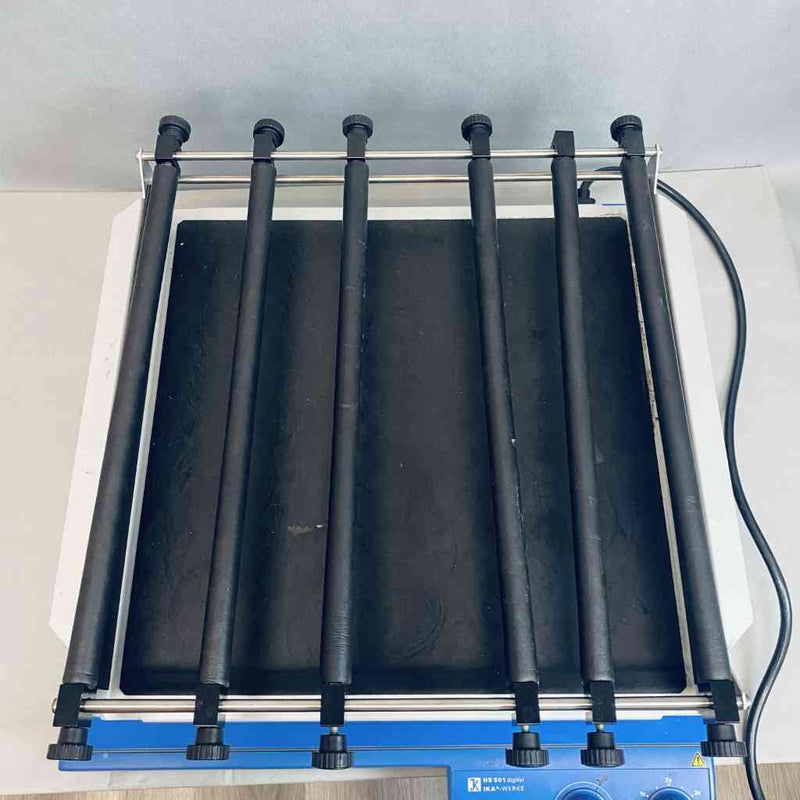

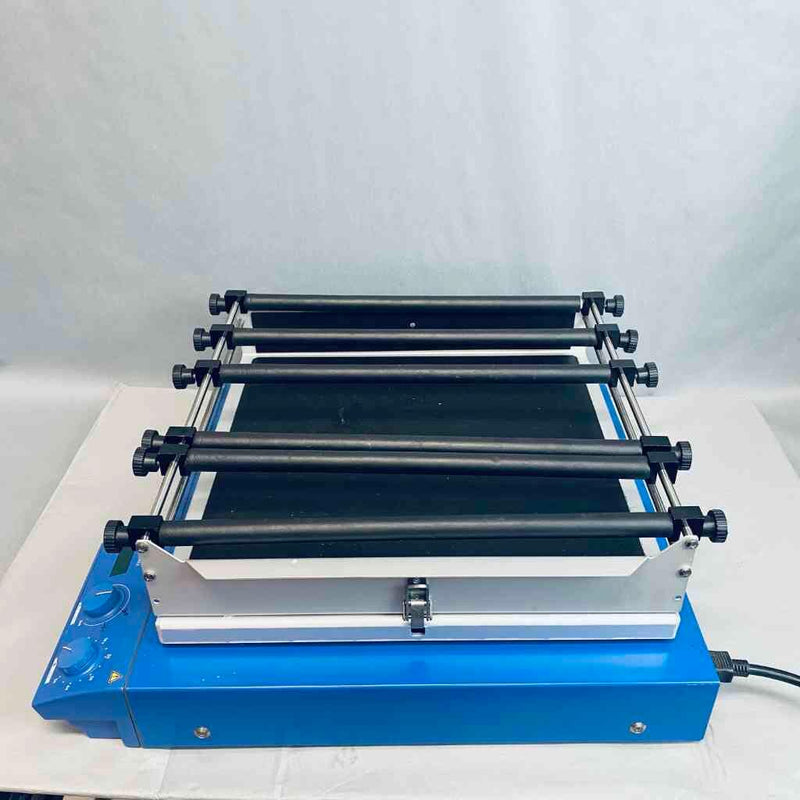

• AS 501.1 Universal Clamping System: Includes six adjustable clamping rollers that lock securely into place to accommodate mixed vessel types and sizes simultaneously.
• Soft Start & Constant Speed Regulation: Electronic speed control maintains selected RPM under varying loads while smooth acceleration prevents liquid splashing during startup.
• Durable Chemical-Resistant Housing: Sealed metal enclosure and chemical-resistant finish protect internal motor drive components from accidental reagent spills and harsh laboratory environments.

Product Specifications

• Model / Part Number: HS 501 D S1 (Shaker Base) / AS 501.1 (Universal Attachment)
• Primary Manufacturer: IKA Works, Inc.
• Equipment Category: Reciprocating Benchtop Shaker
• Type of Movement: Reciprocating (Linear Horizontal)
• Shaking Stroke Length: 30 mm
• Maximum Permissible Load: 15 kg (33 lbs including attachment)
• Speed Range: 0 to 300 RPM (1 RPM Resolution)
• Timer Range: 1 to 3360 minutes (56 hours) or Continuous Mode
• Attachment Footprint (AS 501.1): 475 mm x 420 mm Work Surface
• Ingress Protection Rating: IP 21
• Operating Temperature Range: 5 to 50 degrees C (Up to 80% Relative Humidity)

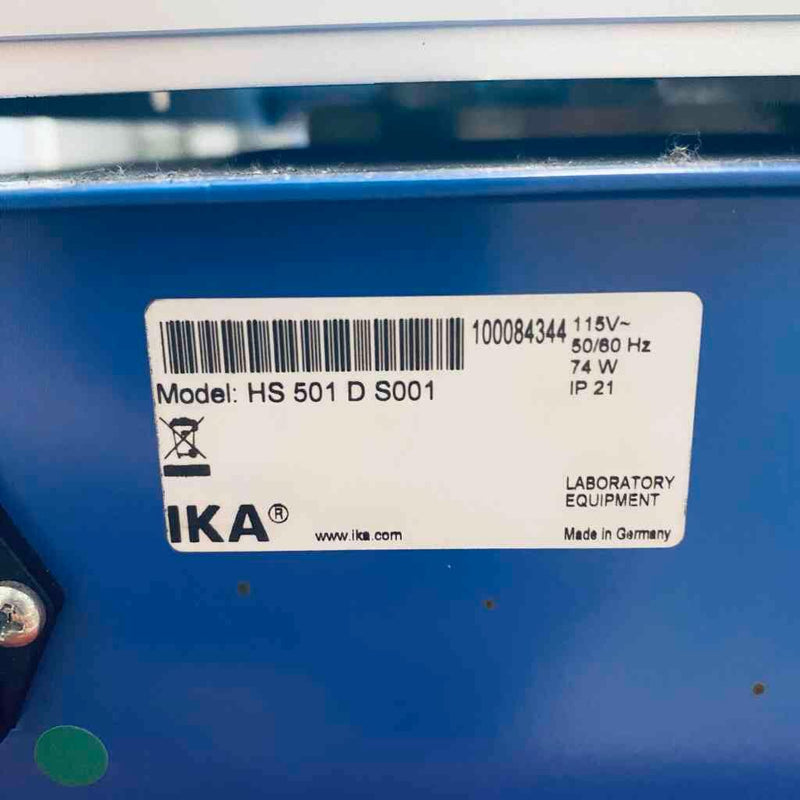

• Power Requirements: 115 V AC, 50/60 Hz (74 W Input Power)

Key Benefits & Applications

• Liquid-Liquid Extraction: Ideal for holding multiple separating funnels during solvent extraction and environmental pollutant analysis (e.g., EPA methods).
• High-Volume Chemical Dissolution: Provides powerful horizontal agitation for dissolving recalcitrant solids, powders, and viscous mixtures in large volumetric flasks.
• Biological & Microbial Washing: Delivers smooth, repeatable linear mixing for washing steps, tissue digestion, and suspension cultures.

Used, in great condition.
