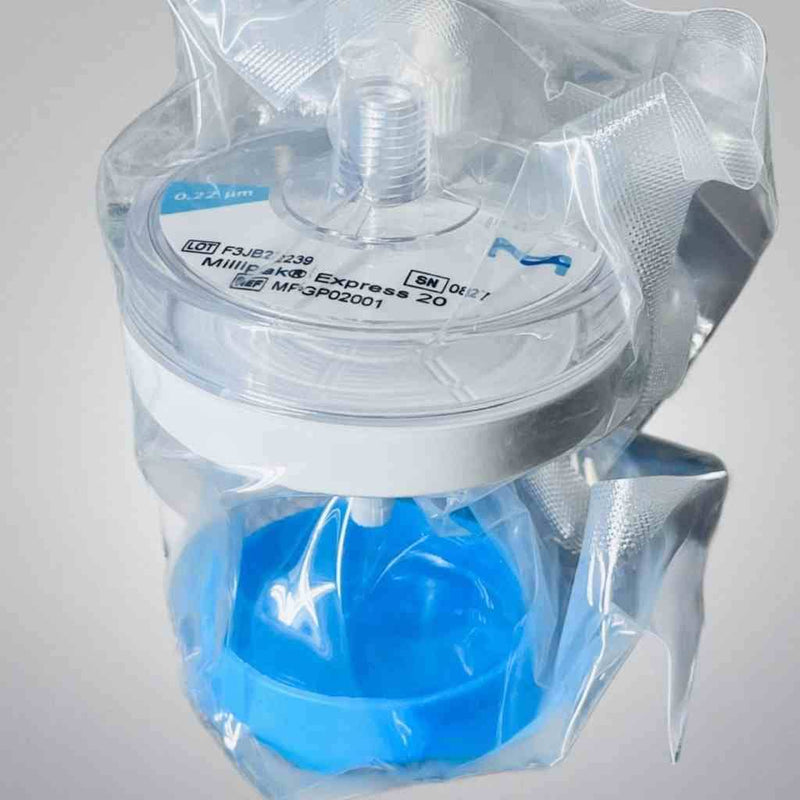

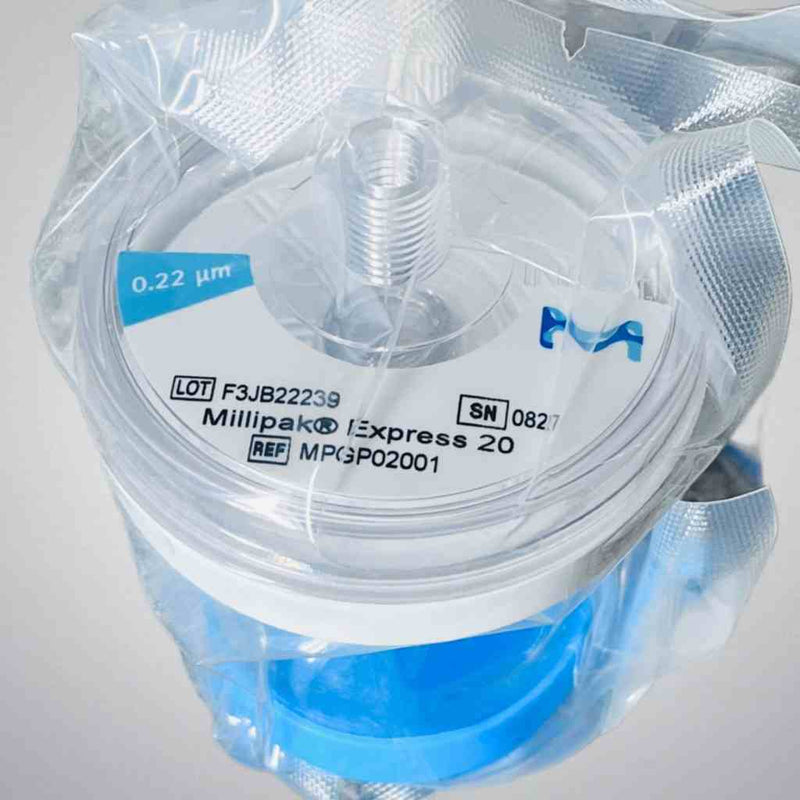

Millipore Millipak Express 20 Filter 0.22 um Durapore

The Millipore MPGP02001 Millipak Express 20 is a high-performance, point-of-use membrane filter designed to provide particulate-free and bacteria-free water for critical laboratory applications. Engineered specifically for use with Millipore water purification systems, this filter utilizes a 0.22 micron hydrophilic membrane to ensure the highest level of water purity at the point of dispense. Its unique stacked-disc design provides a safe and efficient barrier against contaminants while maintaining optimal flow rates.

Technical Performance and Design

• High-Flow Asymmetric Membrane: Features a 0.22 micron polyethersulfone (PES) membrane with conical pores that allow for high flow rates at low differential pressures.

• Stacked-Disc Technology: Utilizes a clean stacked-disc design that eliminates the risk of particulate-producing woven downstream supports often found in pleated membrane capsules.

• Low Extractables: The membrane is heat-sealed to a styrene acrylonitrile (SAN) housing, minimizing the release of organic and inorganic extractables and ensuring a high-purity fluid path.

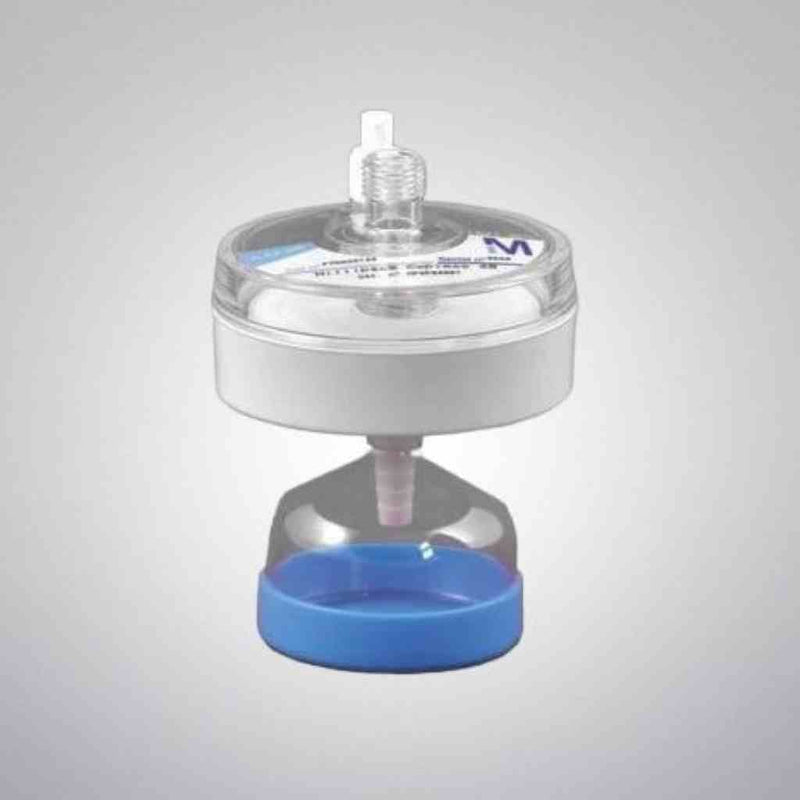

• Integrated Protective Bell: Equipped with a protective bell at the outlet to shield the dispense point from airborne bacterial contamination during use.

Product Specifications

• Part Number: MPGP02001

• Filter Type: Millipak Express 20

• Pore Size: 0.22 micron

• Membrane Material: Hydrophilic Polyethersulfone (PES)

• Housing Material: Styrene Acrylonitrile (SAN)

• Sterility: Non-sterile (supplied hermetically sealed)

• Compatibility: Designed for use with Milli-Q (Academic, Biocel, Element, Gradient, Synthesis), Direct-Q, and Synergy water purification systems.

Operational Advantages

• Minimal Dead Volume: The compact stacked-disc geometry ensures a minimum dead volume, reducing water waste and preventing stagnant areas where bacteria could proliferate.

• Pressure Resistance: The membrane is supported by a rigid plastic disc with internal channels, providing high resistance to pressure variations without the risk of membrane rupture.

• Care-Free Maintenance: The filter is designed for quick and easy replacement, fitting directly onto the dispense point or Point-of-Delivery (POD) units with no specialized tools required.

• Validated Performance: The 0.22 micron membranes have been validated for bacteria removal, ensuring reliable performance for sensitive laboratory analysis, cell culture, and chromatography.
