Omniaire 600V Hepa Air Filtration System

OmniAire 600V-MED HEPA Negative Air Machine & Air Scrubber (OA600VMED-708)

The OmniAire OA600VMED-708 (manufactured by Omni CleanAir / Omnitec Design) is a medical-grade, highly compact portable negative air machine and air scrubber engineered for hospital infection control, healthcare construction, and critical laboratory environment validation. Operating across a variable airflow range of 150 to 550 TrueCFM™, this specialized medical configuration features a 99.99% efficient HEPA filter at 0.3 microns to eliminate pathogens, toxic mold, asbestos, and microscopic dust particles. Encased in an easy-to-sanitize, aircraft-grade riveted aluminum housing, it can be deployed on continuous recirculation or ducted to establish positive or negative pressure containment zones compliant with ICRA (Infection Control Risk Assessment) protocols.

Technical Performance & Design

• 99.99% Medical-Grade HEPA Core: Outfitted with a high-efficiency particulate air (HEPA) filter utilizing an airtight, structural frame template ($12” \times 12” \times 12”$). This specification captures 99.99% of airborne particles down to 0.3 microns, exceeding standard 99.97% industrial abatement lines.
• Aircraft-Grade Aluminum Shell: Constructed from heavy-duty mill-finish aluminum that is completely silicone-sealed before and after riveting. This eliminates internal housing bypass leaks, ensuring all contaminated intake streams force straight through the multi-stage filter stack.

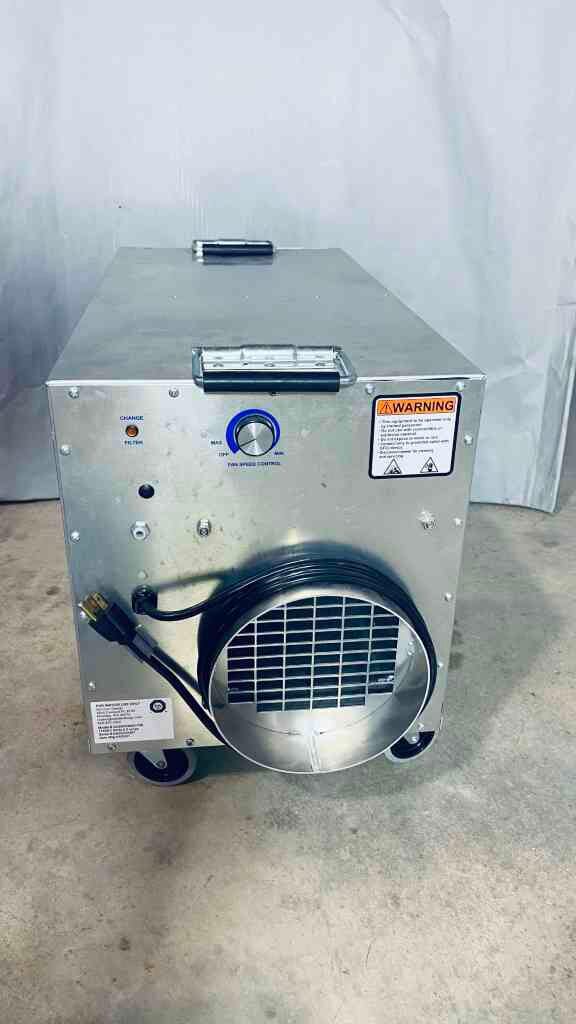

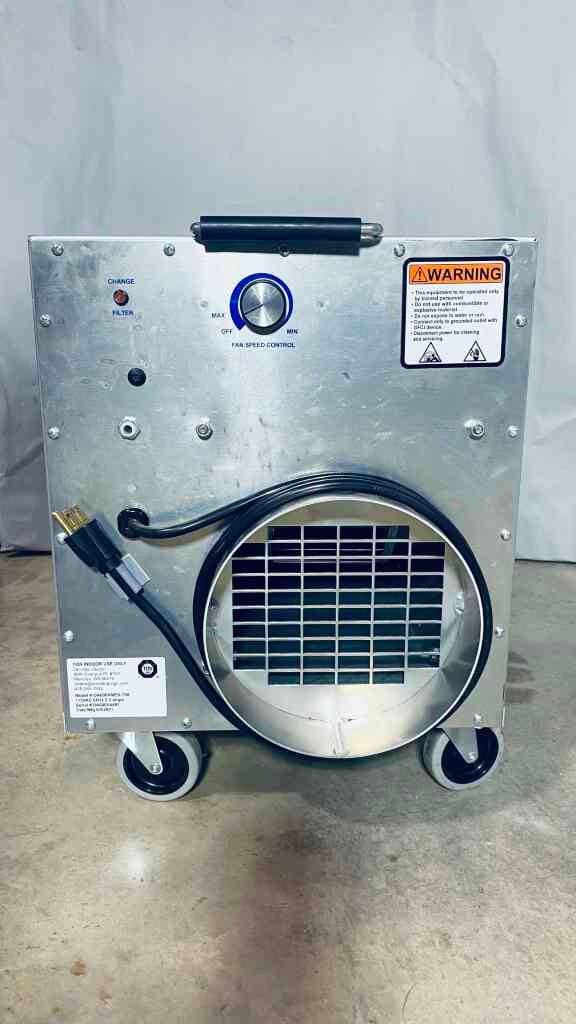

• Precision Variable Speed Engine: Powered by a thermally protected motor pulling a low current load of 2.3 Amps on a standard 115 VAC line. The integrated solid-state dial allows precise linear CFM adjustments to accommodate room dimensional air change requirements.
• Integrated Vacuum Monitoring Gauge: Features a built-in static pressure gauge calibrated from 0 to 3” Water Column (W.C.). This analog reader provides instantaneous visual feedback on pre-filter loading and HEPA resistance, simplifying preventative maintenance schedules.

Product Specifications

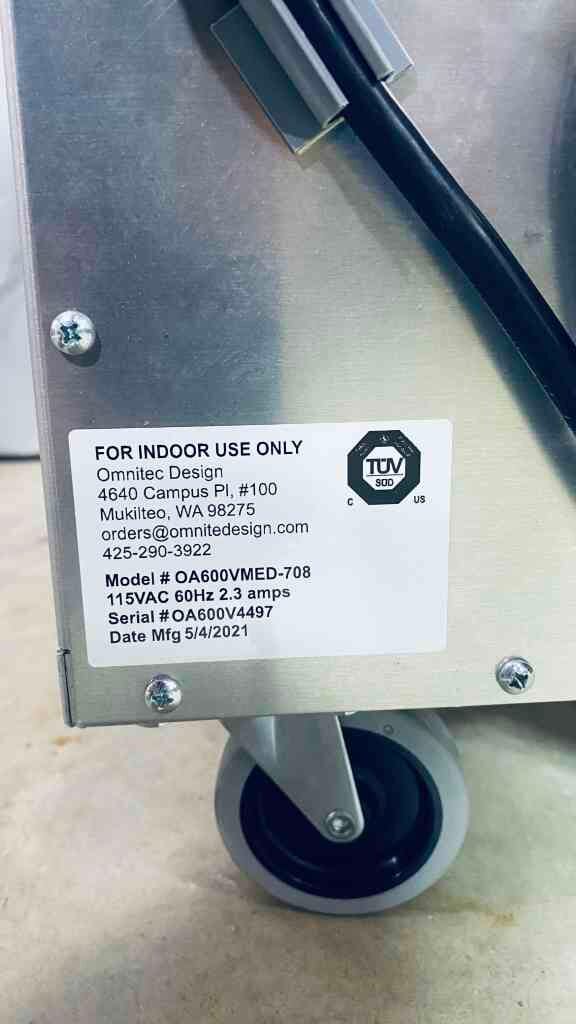

• Model Number / Part No: OA600VMED-708 (Medical Variant Series: OA600V-MED)
• Manufacturer Line: Omni CleanAir / Omnitec Design
• Airflow Capacity: Adjustable from 150 CFM up to a maximum of 550 TrueCFM™
• Net Equipment Weight: 58 lbs (Dry assembly mass)
• Electrical Architecture: 115 VAC / 60 Hz / Single-Phase / 2.3 Amps
• Final Stage Filter: Certified 99.99% @ 0.3 micron HEPA matrix
• Pre-Filter Infrastructure: 2-Stage Poly Pad Filter (13” x 13” x 1.5”)
• Porting Outlets: 8-inch diameter exhaust ring optimized for industrial flex-hose ducting hookups
• Mobility Framework: Recessed rubber-grip transport handles and hospital-grade locking casters

Key Benefits & Applications

• Healthcare & Hospital ICRA Compliance: Widely used during renovation, drywall cutting, and remodeling inside occupied medical centers to trap hazardous dusts and airborne fungal spores (like Aspergillus), maintaining patient protective environment validation.
• Biotech and Cell Isolation Containment: Serves as an excellent secondary ambient air scrubber in cell culture core facilities, preventing cross-contamination carryover outside of primary biosafety cabinets.
• Chemical Odor & VOC Mitigation Capacity: The multi-stage filter rack can accept optional OdorGuard activated carbon pads to strip volatile organic compounds, anatomical preservation fumes, and welding odors from lab air lines.
• Biological Sterilization Upgrades: Designed to adapt to optional germicidal UV-C irradiation modules, creating an active destruction layer for viruses, bacteria, and spores passing through the primary airflow path.

OmniAire™, TrueCFM™, and OdorGuard® are commercial trademarks of Omni CleanAir / Omnitec Design. Catalog sequence OA600VMED-708 defines the medical-grade aluminum 115V variable speed unit. Note that the legacy OA600V and OA600VMED series have been updated by the manufacturer to the OmniAire 600 Plus and 600 Pro series blueprints for current facility specifications.
