Pall Capsule Filter Mini Profile 1/2 in. Barb Total of 12 Filters

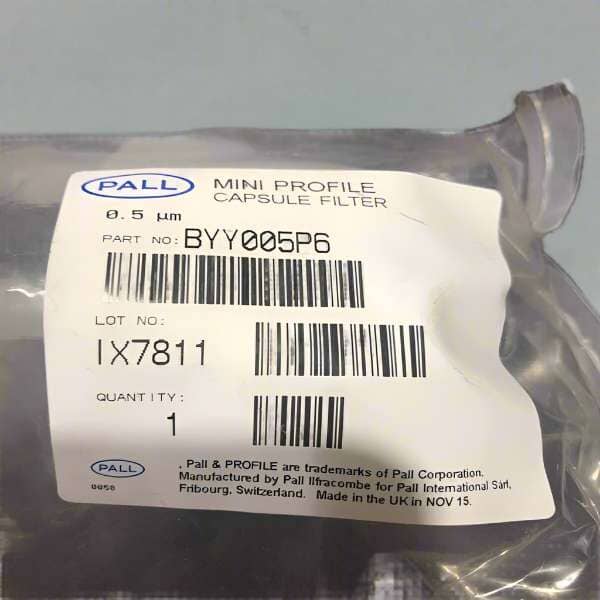

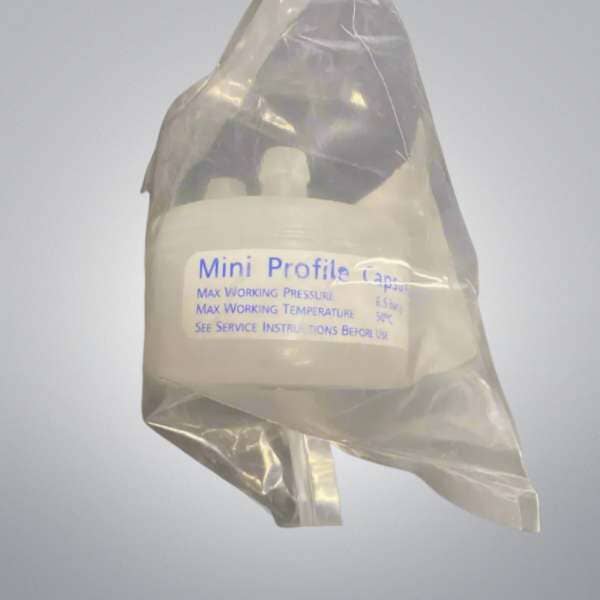

Pall BYY005P6 Mini Profile Capsule Filter (Profile II Media, 0.5 µm)

The Pall BYY005P6 is a high-efficiency Mini Profile™ capsule filter designed for small-batch clarification, scale-up evaluation, and the removal of fine particulates and gels. Featuring Profile II absolute-rated depth media, this filter utilizes a tapered pore structure that provides a gradient density matrix, ensuring long service life and high dirt-holding capacity. With a 0.5 µm removal rating and a 45 cm² effective filtration area, the BYY005P6 is an essential tool for the clarification of biological products, viscous reagents, and fine chemical suspensions. The self-venting, all-polypropylene housing ensures broad chemical compatibility and low extractables, while the 1/2-inch hose barb connections facilitate easy integration into flexible tubing assemblies.

Technical Performance and Design

• Profile II Graded Density Media: The depth filter structure features pores that narrow toward the downstream section, effectively acting as multiple stages of filtration in a single pass to maximize throughput before clogging.

• Absolute-Rated Reliability: Engineered for 99.98% efficiency (Beta 5000), providing the high-level security required for critical clarification steps where consistent filtrate quality is paramount.

• High Gel Removal Efficiency: The thick depth matrix is specifically optimized to trap deformable particles and gels that often bypass standard pleated or membrane filters.

• Low Hold-Up Volume: The Mini Profile capsule design is engineered to minimize dead space, ensuring maximum recovery of expensive biological fluids or rare samples.

Product Specifications

• Catalog Number: BYY005P6

• Filter Media: Profile II (Polypropylene Depth)

• Pore Size (Absolute): 0.5 µm

• Effective Filtration Area (EFA): 45 cm² (approx. 7.0 in²)

• Connections: 1/2 in. (13 mm) Stepped Hose Barb (Inlet/Outlet)

• Max Operating Pressure: 4.1 bar (60 psi) @ 30°C; 3.4 bar (50 psi) @ 50°C

• Sterility: Non-Sterile (Individually Sealed; Autoclavable up to 125°C for 3 x 30 mins)

• Materials: All-polypropylene housing and media; Acetal hose barb adapters.

Key Benefits & Applications

• Bioprocess Clarification: Ideal for the primary and secondary clarification of cell culture supernatants, fermentation broths, and protein solutions.

• Viscous Fluid Filtration: Optimized for handling oils, resins, and viscous chemical slurries where standard filters would suffer from rapid pressure buildup.

• Scale-Up Modeling: Provides a predictable performance model for larger Profile II filter cartridges, allowing for easy transition from benchtop to pilot-scale production.

• Ready-to-Use Integrity: Each filter is individually sealed to prevent environmental contamination prior to use, ensuring consistent purity for sensitive analytical applications.
