Parker Filter Module Compressed Air Filter 40.5 in.

Parker SB2540-OS04-S Compressed Air Filter Module – 40.5 in., High-Efficiency

The Parker SB2540-OS04-S is a heavy-duty compressed air filtration module engineered for superior contaminant removal in high-demand industrial pneumatic systems. Measuring 40.5 inches in length, this module is designed to handle high volumetric flow rates while maintaining an ultra-low pressure drop. It features a sophisticated multi-stage filtration media optimized for the coalescing of fine oil mists, the removal of water aerosols, and the capture of solid particulates down to sub-micron levels. The SB2540-OS04-S is constructed with rugged, corrosion-resistant end caps and a reinforced core to ensure structural integrity under fluctuating pressure loads. This module is an essential component for protecting sensitive pneumatic components, high-speed production machinery, and air-driven instrumentation from the damaging effects of oil and moisture contamination. Supplied factory-sealed to ensure maximum purity until installation, it is the premier choice for aerospace, automotive, and large-scale manufacturing facilities.

Technical Performance and Design

• High-Efficiency Coalescing: Utilizes advanced borosilicate micro-fiber media to merge small oil and water droplets into larger units that can be easily drained, ensuring "instrument-grade" air quality.

• Low Pressure Drop: Engineered with a high-surface-area pleated or wrapped design that maximizes dirt-holding capacity while minimizing energy costs associated with air resistance.

• 40.5-Inch Extended Length: The oversized profile provides a significantly longer service life and higher flow capacity than standard industrial filter elements, reducing the frequency of maintenance intervals.

• Corrosion-Resistant Hardware: Features internal and external support cages designed to withstand aggressive environments and prevent media migration into the clean air stream.

Product Specifications

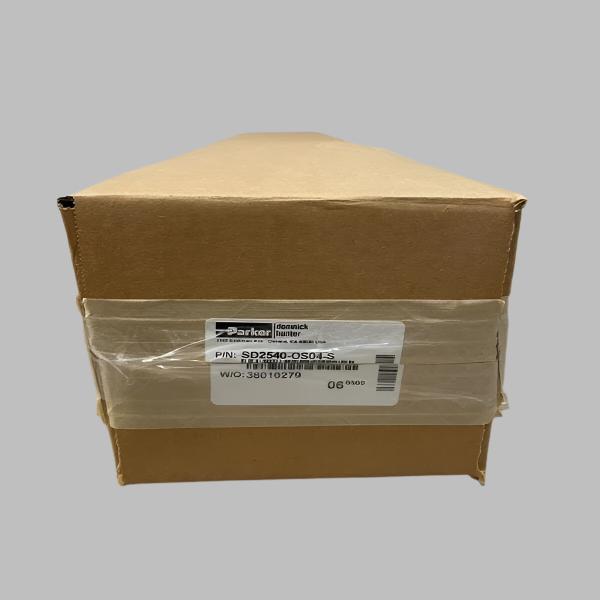

• Catalog Number: SB2540-OS04-S

• Length: 40.5 inches (102.9 cm)

• Filter Class: High-Efficiency Coalescing / Oil Removal

• Media Type: Borosilicate Micro-glass / Synthetic Blend

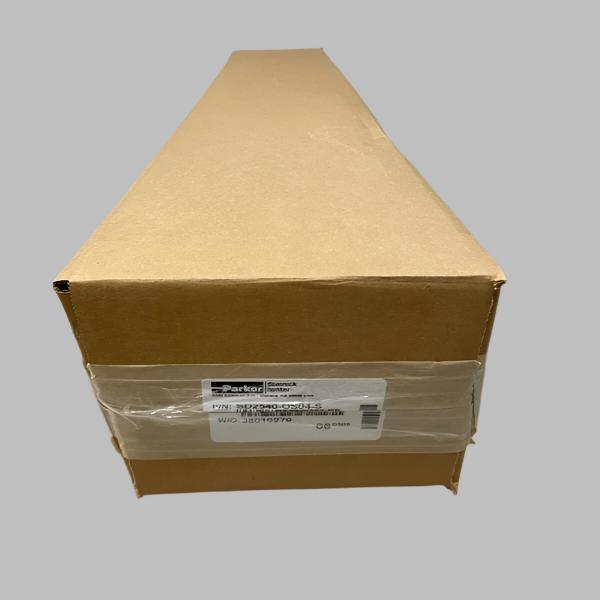

• Format: Sealed Filter Module

• Compatibility: Parker Industrial Filter Housings (Check specific series for fitment)

Key Benefits & Applications

• Downstream Equipment Protection: Prevents oil fouling and moisture-related corrosion in expensive CNC machines, robotic arms, and pneumatic valves.

• Paint and Coating Processes: Critical for ensuring air purity in spray booths, preventing "fish-eyes" and other surface defects caused by oil or silicone contamination.

• Centralized Air Systems: Ideal for use in main plant air headers where high volumes of air must be treated before being distributed to individual workstations.

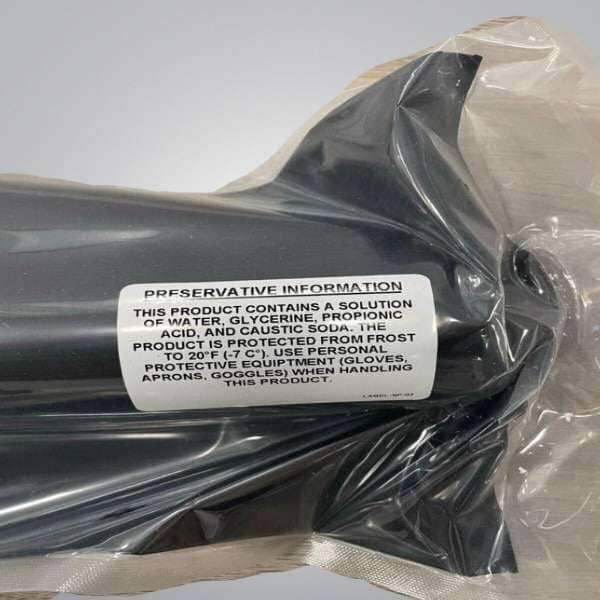

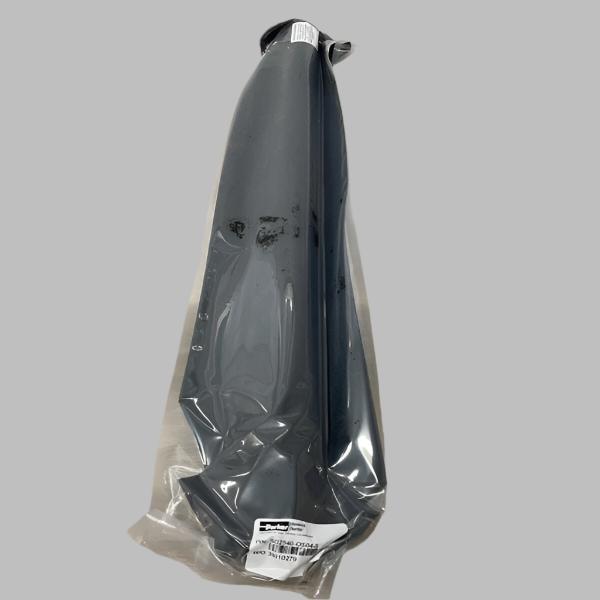

• Sealed for Purity: The factory seal guarantees that the media has not been exposed to ambient humidity or contaminants, ensuring 100% performance efficiency from the moment of installation.
