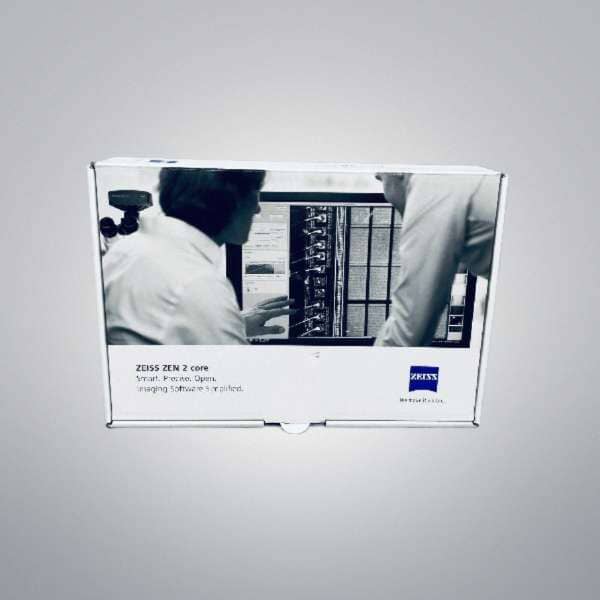

Zeiss Zen Core v2.7 Microscope Imaging Software License and Dongle 2 Seats

ZEISS ZEN Core v2.7 Microscope Imaging Software & ZEN Data Storage v2.71 Architecture Suite

The ZEISS ZEN Core v2.7 and ZEN Data Storage v2.71 suite (commonly distributed via ZEISS Service DVD 80) represents an enterprise-grade connected microscopy ecosystem engineered for industrial quality control, materials science analysis, and multi-user research facilities. ZEN Core v2.7 serves as the primary standardized user interface (GUI) and hardware control motor for ZEISS light, stereo, scanning electron (SEM), and focused ion beam (FIB-SEM) microscopes. By pairing the core acquisition engine with ZEN Data Storage v2.71—a centralized SQL-server image database platform—laboratories can decouple real-time sample acquisition from offline image processing, establishing full GxP/21 CFR Part 11 audit trails and eliminating localized USB/external hard drive data transfers.

Technical Performance and Platform Engineering

• Unified Multi-Modal Hardware Interface: Standardizes instrument control across diverse microscopy modalities. Operators trained on basic widefield light microscopes can navigate complex SEM or FIB-SEM workbenches using identical GUI layouts and workflow paradigms.

• Dual Operational Execution Modes: Features a locked, wizard-guided Job Mode designed for repetitive, multi-operator QA/QC sample routines, alongside an unrestricted Free Mode for advanced root-cause failure analysis, R&D inspections, and parameter tuning.

• SQL-Server Centralized Database Architecture: ZEN Data Storage v2.71 operates on a central Windows Server environment, linking physical microscopes, offline processing workstations, and web-based browsers into a synchronized data repository with role-based access control (RBAC).

• Advanced Image Stitching and Focus Synthesis: Includes native hardware-encoded automated tile acquisition (Panorama/Tile Scan), Autofocus routines, and Extended Depth of Focus (EDF) algorithms that fuse multi-Z stack passes into a single, high-contrast composite image.

Key Features and Module Capabilities

• ZEN Core v2.7 Acquisition Modules:

  • Smart Setup & Encoded Hardware Tracking: Automatically senses motorized objective turrets, stage positions, filters, and illumination settings to guarantee exact metadata recording within native .CZI file structures.

  • AI Toolkit Integration: Enables machine-learning and deep-learning segmentation models for automated phase analysis, grain boundary quantification, and layer thickness measurements.

  • Automated Reporting Engine: Generates customized, template-driven inspection reports containing calibrated scale bars, measurement tables, and cross-sectional profile charts directly from raw image metadata.

• ZEN Data Storage v2.71 Enterprise Management:

  • GxP Compliance & Audit Trail Tool: Seamlessly logs every software interaction, parameter adjustment, and image edit into a tamper-proof audit trail for validated pharmaceutical or medical device manufacturing standards.

  • Remote & Mobile Access (ZEN Data Explorer): Allows researchers to search, view, annotate, and analyze multi-gigabyte .CZI datasets remotely via web browsers or mobile tablet interfaces.

  • Shared Workflows and Calibration Models: Centralizes the distribution of hardware presets, AI segmentation models, and inspection job routines across multiple instrument stations or geographic facility locations.

System Requirements and Deployment Specifications

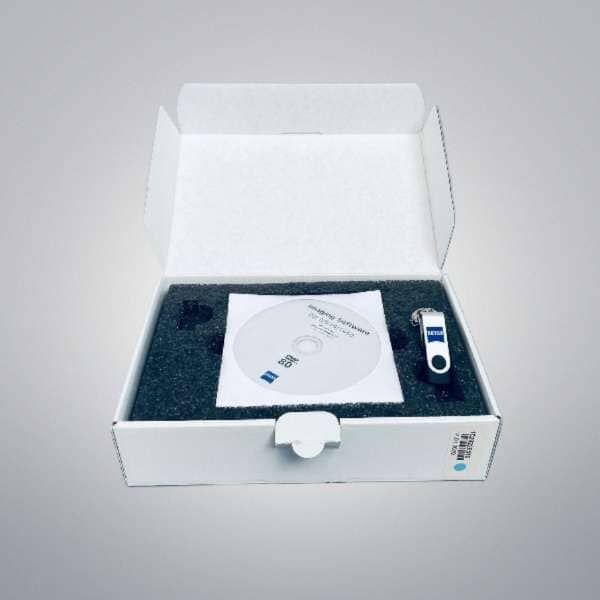

• Primary DVD Distribution Part Number: ZEISS Service DVD 80 (Catalog # 867530933)

• Client Operating System Requirements: Microsoft® Windows® 10 x64 Professional or Enterprise (64-bit, Version 1607 / Build 14393 or higher)

• Database Server Compatibility: Windows Server 2016/2019 hosting Microsoft SQL Server architecture for remote database deployment

• Supported Native File Formats: Carl Zeiss Image Format (.CZI), Open Microscopy Environment (.OME-TIFF), TIFF, JPEG, PNG, and raw metadata export channels

• Hardware Interfacing: Supports all motorized ZEISS light microscopes (e.g., Axio Imager, Axio Observer, Stemi/Stereo Discovery), ZEISS Industrial Cameras, and ZEISS SEM/FIB-SEM platforms

All product names, logos, and brands are property of their respective owners.
