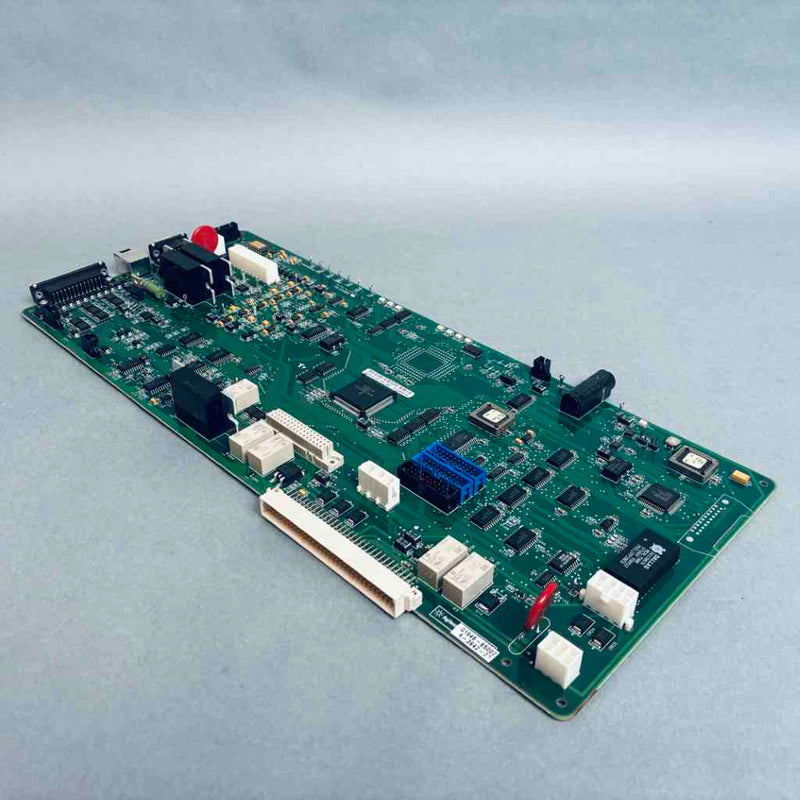

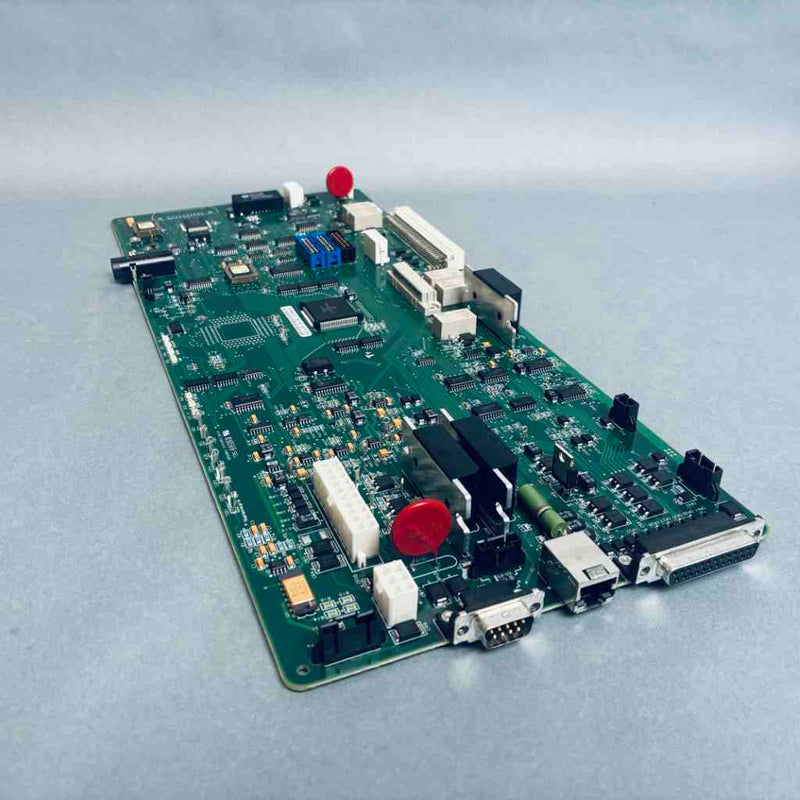

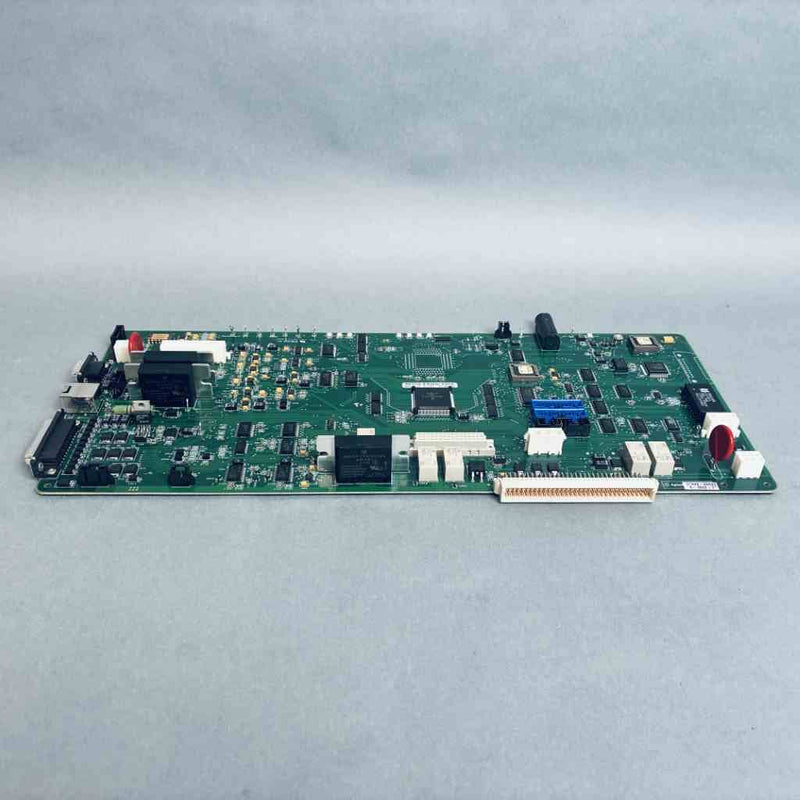

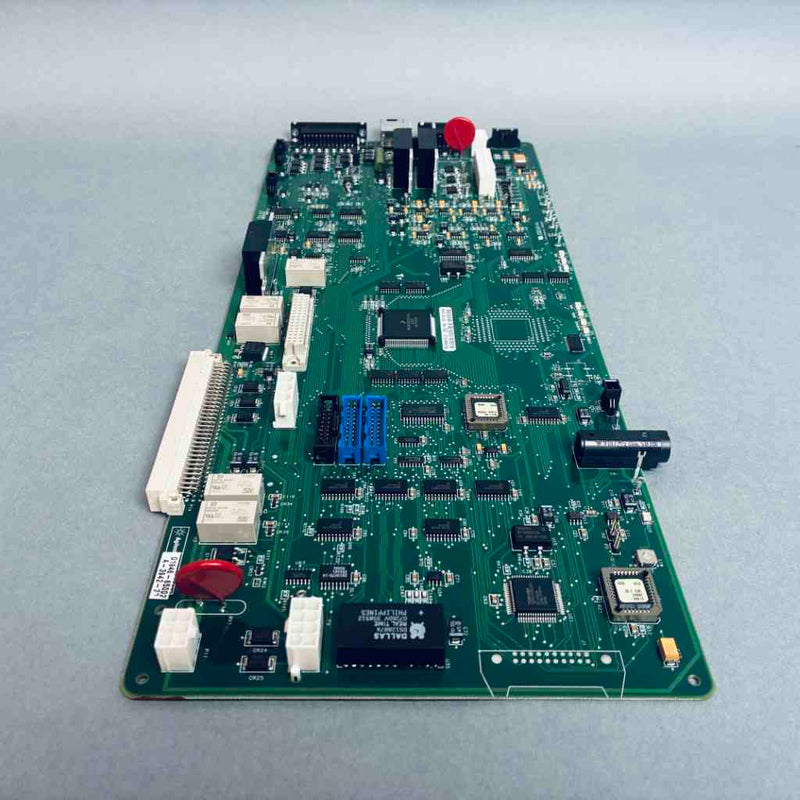

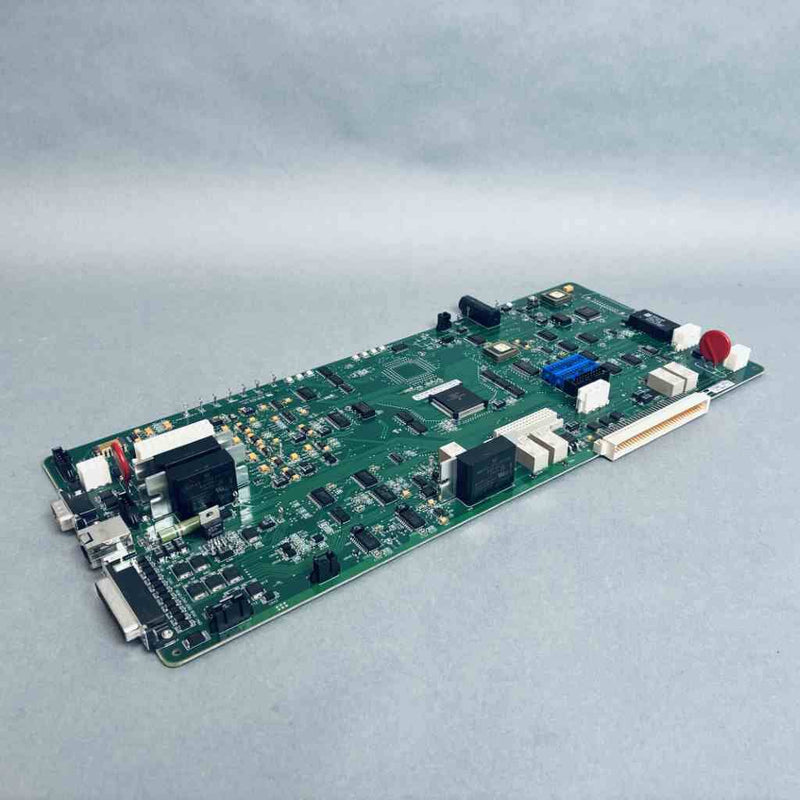

Agilent Power Distribution Board for 1100 Series LC/MSD

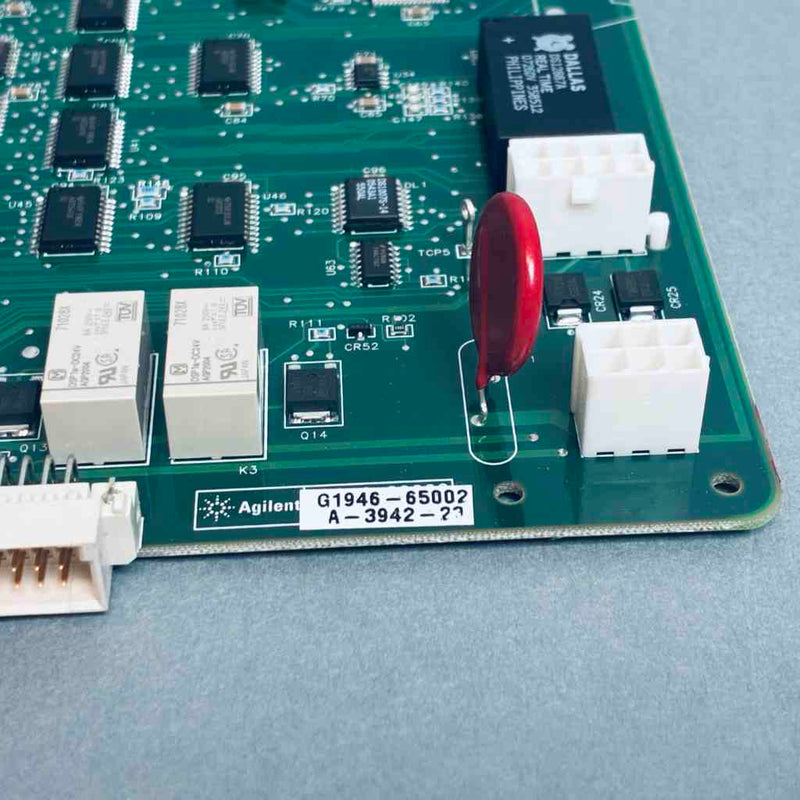

The Agilent G1946-65002 Power Distribution Board is an internal power routing PCB designed for the Agilent 1100 Series LC/MSD mass spectrometry system. This board distributes regulated electrical power from the instrument’s power supply modules to multiple internal subsystems, ensuring stable voltage delivery throughout the mass detector electronics. It features multiple board-mounted connectors for wiring harness integration with analyzer electronics, control boards, and supporting modules within the LC/MSD chassis. Built specifically for the 1100 Series LC/MSD platform, the board manages organized power distribution across the instrument’s internal circuitry to support coordinated operation of the mass spectrometer components.

Removed from a fully operational machine, excellent condition.
