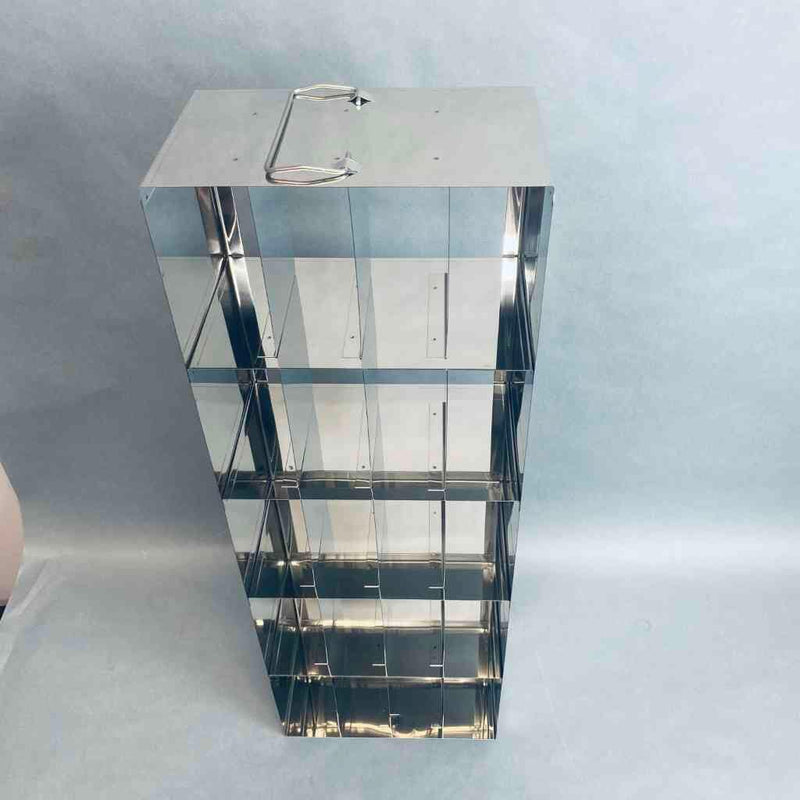

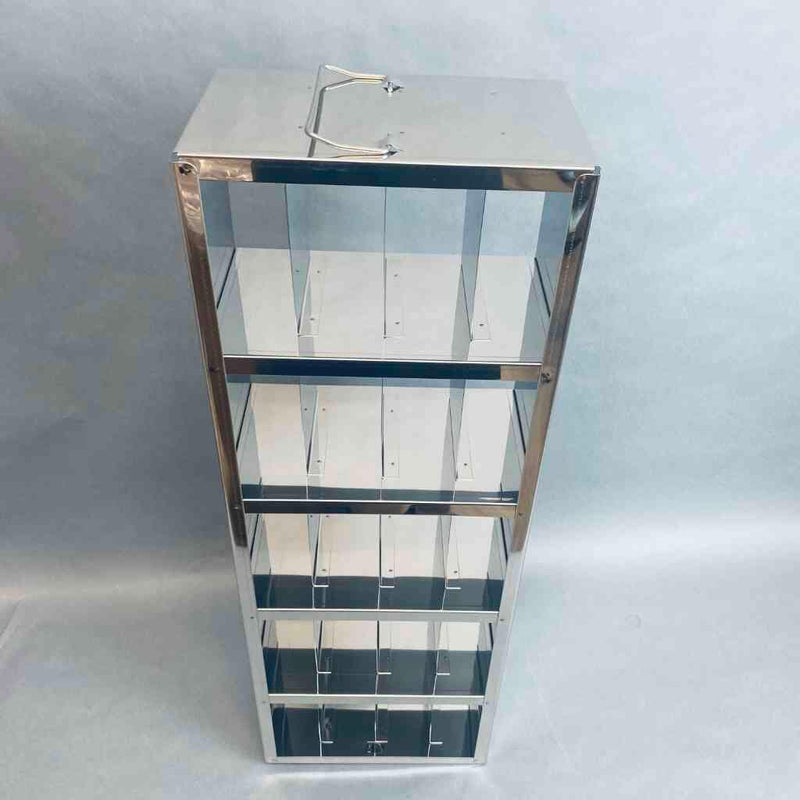

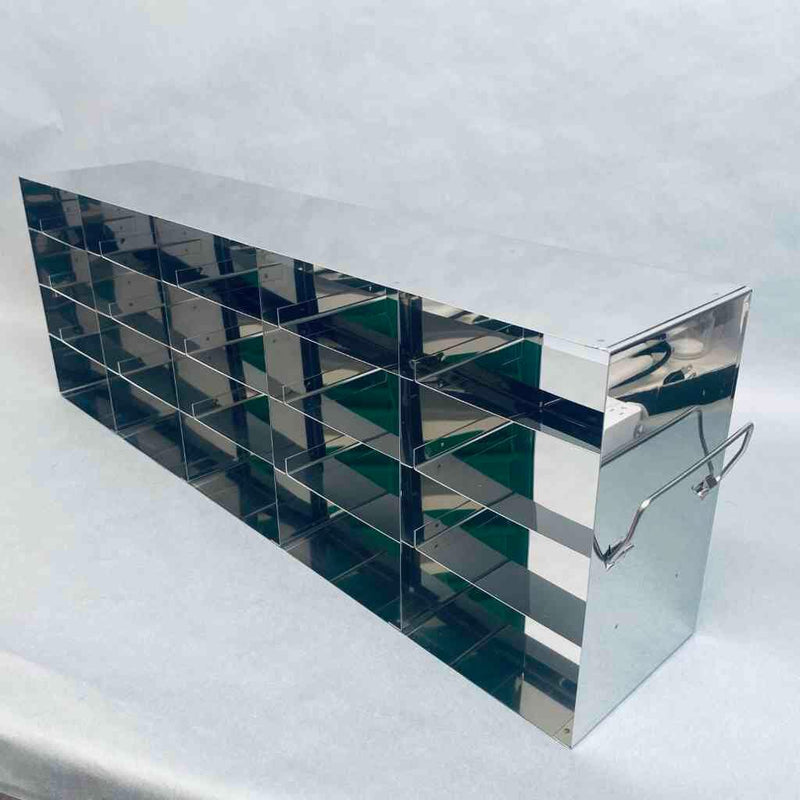

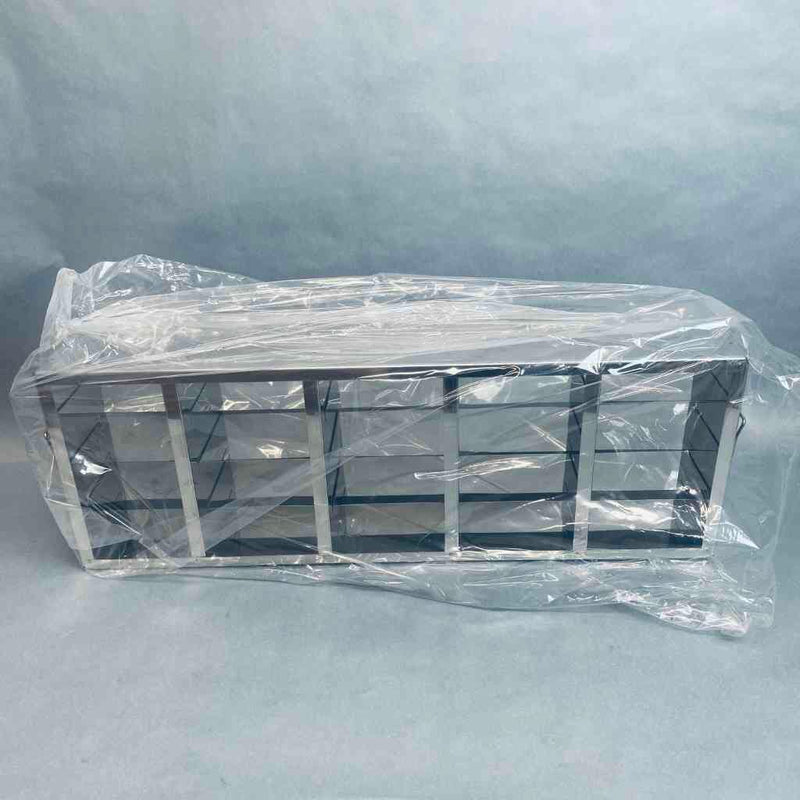

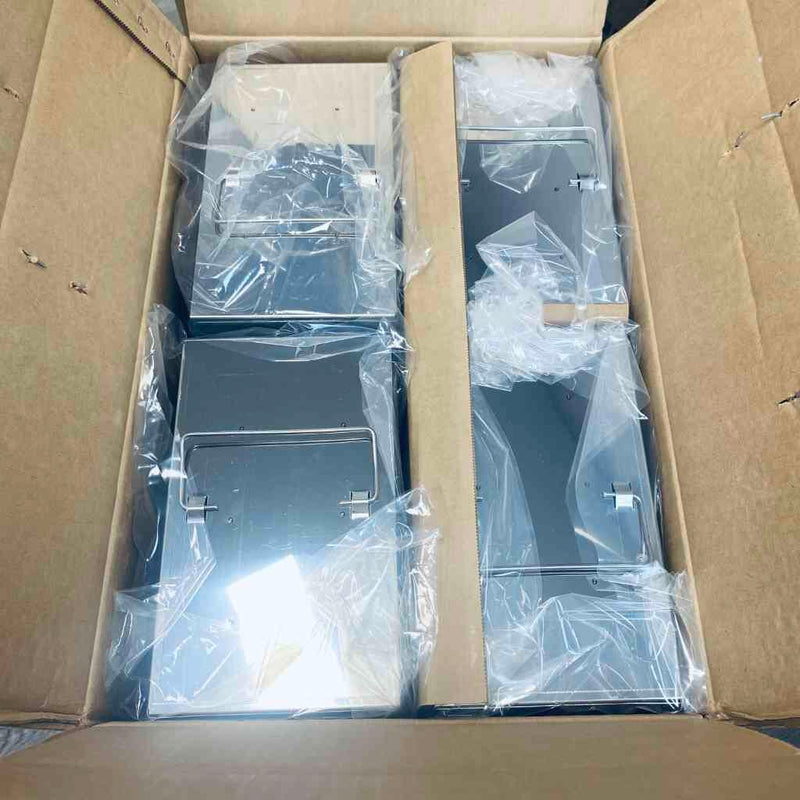

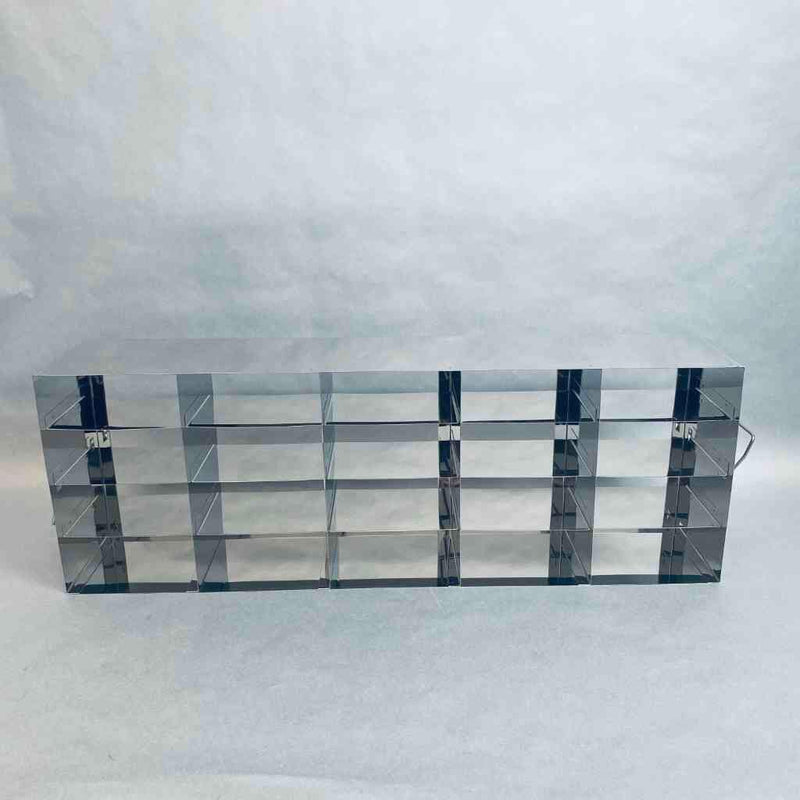

Crystal Technology 20-Place Freezer Rack 5 x 4 Configuration Case of 4 Racks

Crystal Technology Upright Freezer Rack for 2-Inch Cryo Boxes – 20-Place Capacity, 5 Deep x 4 High Matrix, Corrosion-Resistant Heavy-Gauge Stainless Steel, Side-Access Storage (MPN: UF-542 / UF542)

The Crystal Technology & Industries UF-542 is an industrial-grade, heavy-duty laboratory freezer rack engineered to maximize internal storage optimization and streamline inventory tracking inside ultra-low temperature (ULT) upright freezers. Fabricated from premium, corrosion-resistant heavy-gauge stainless steel, this robust side-access rack features a systematic storage capacity configuration of 5 boxes deep by 4 boxes high, housing up to 20 standard 2-inch (50 mm to 53 mm) cryogenic storage boxes. Built with high-strength precision welds and finished with ultra-smooth edges to protect technicians from nitrile glove tears, this space-maximizing unit acts as a long-lasting sample management blueprint across biorepositories, clinical trial centers, and core cell banking lines.

Technical Performance and Structural Design

• Heavy-Gauge Stainless Steel Architecture: Crafted from premium-grade structural stainless steel designed to maintain absolute rigidity under continuous cryogenic temperature stress. The metal surfaces resist rust, oxidation, and biological degradation from ambient cold-room humidity.

• Ergonomic Side-Access Orientation: Engineered with a convenient side-loading design that allows technicians to rapidly view, pull, or slide individual boxes in and out from the open flank without disrupting adjacent sample rows.

• Safe-Edge Laser Processing: The entire structural frame undergoes advanced laser cutting and deburring protocols. This eliminates sharp burs, ensuring smooth handling transitions when sliding the rack across frozen cabinet shelves.

• Deep-Shelf Storage Optimization: Designed with an extended 27-inch deep profile that utilizes the maximum internal depth boundaries of high-capacity freezers, converting wasted dead space into systematic archival grids.

Product Specifications

• Catalog Number / MPN: UF-542 (Cross-listed as UF542 / CTI-UF-542)

• Manufacturer / Brand: Crystal Technology & Industries (CTI)

• Rack Storage Configuration Matrix: 20 Places total arranged in a 5 boxes deep x 4 boxes high vertical array

• Compatible Box Profile Size: Standard 2-inch (50 mm / 53 mm) boxes fabricated from cardboard, plastic, or polycarbonate (Maximum box perimeter: 136 x 136 mm)

• Material Composition: Corrosion-Resistant Solid Industrial Stainless Steel

• Overall Physical Exterior Dimensions: 27.28 inches Depth x 8.86 inches Height x 5.51 inches Width (693 mm D x 225 mm H x 140 mm W nominal footprint)

• Individual Well Compartment Size: 5.35 inches Depth x 2.16 inches Height x 5.43 inches Width (136 mm D x 55 mm H x 138 mm W)

• Rack Loading Access Mechanism: Open Side-Access Slot Matrix

Equipment Compatibility Baseline

Due to its specialized 27.28-inch depth and 8.86-inch height boundaries, this rack requires a minimum interior shelf opening clearance of 27.5 inches in depth and 9.0 inches in height. It provides direct drop-in alignment with high-capacity upright ULT freezers (19 to 28 cu. ft. / 500L to 800L) from premier lab hardware lines:

• Thermo Fisher Scientific: Fits high-capacity 4-shelf or 5-inner-door upright models within the TSX Series (e.g., TSX60086, TSX70086) as well as legacy Revco RDE / REL and Forma UFX lines.

• PHCbi / Panasonic: Custom-fit for deep-chamber models like the VIP HD / TwinGuard Series (e.g., MDF-DU702VH-PA, MDF-DU901VHA-PA), taking five 27-inch racks side-by-side per shelf layout.

• NuAire Scientific: Fully compatible with large Blizzard Upright ULT Freezers (e.g., NU-99572J, NU-99728J) featuring internal clearance spans exceeding 27.5 inches.

• Eppendorf: Drops into heavy-capacity uprights like the CryoCube F570 and F740 models when internal spacing heights are adjusted to handle the 225 mm vertical clearance profile.

All product names, logos, and brands are property of their respective owners.
