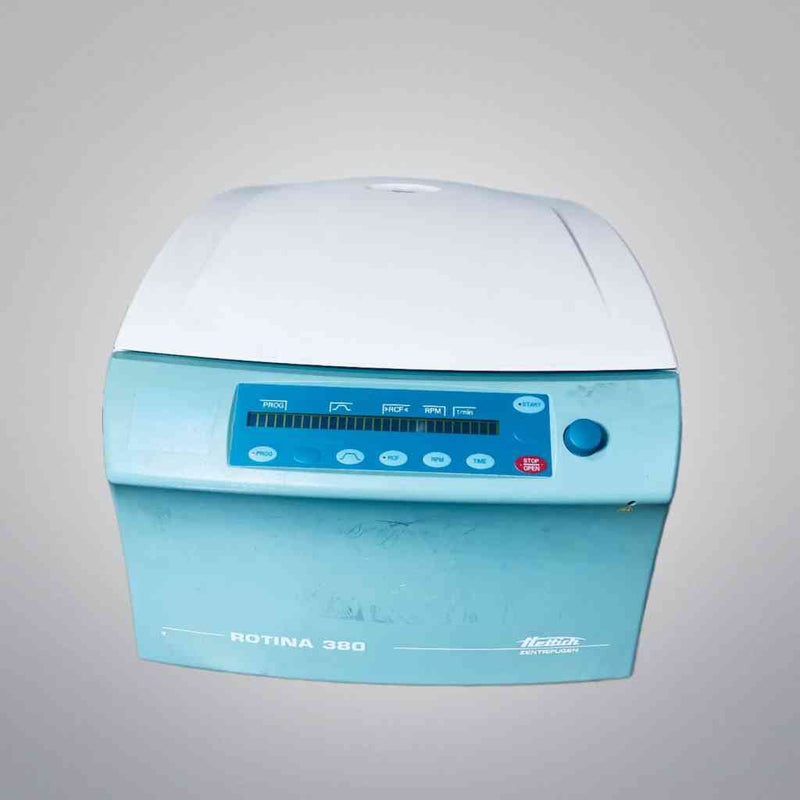

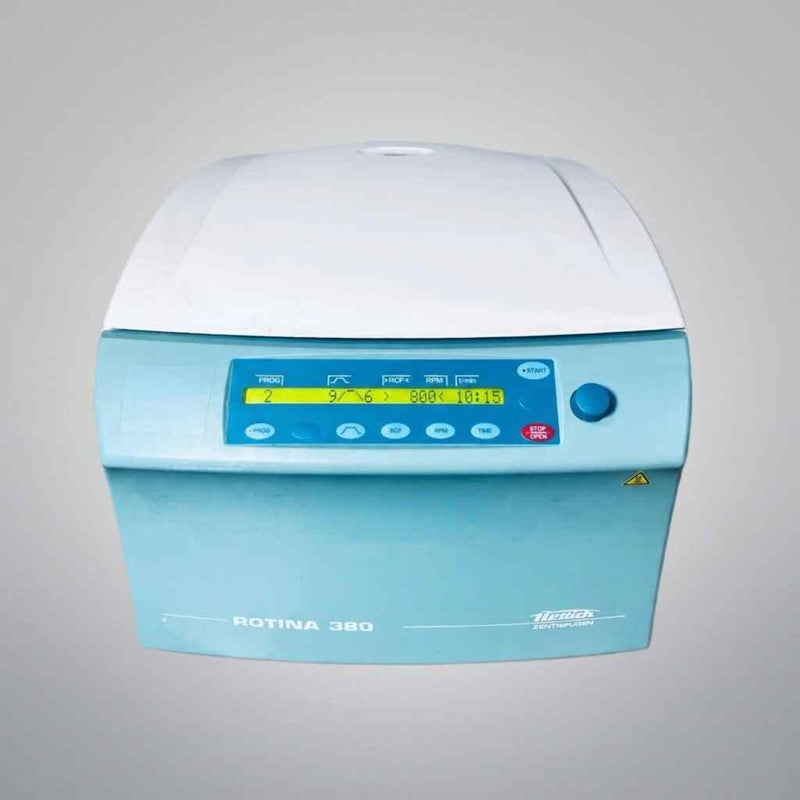

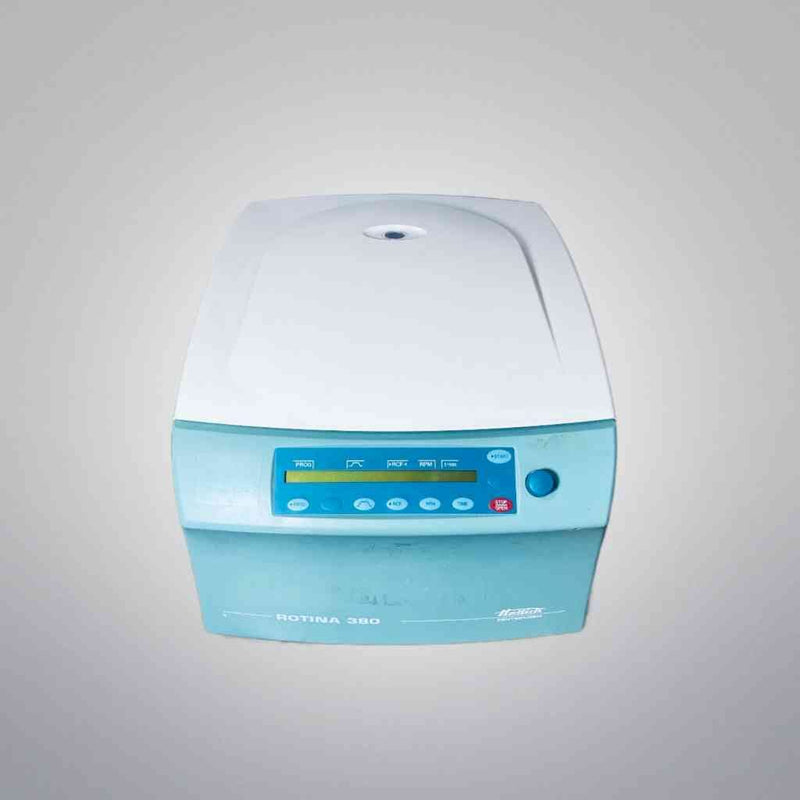

Hettich Rotina 380 Centrifuge with 1798 Rotor 5051 Bucket 50 ml Inserts

Hettich Rotina 380 Benchtop Centrifuge (1701-30) with 1798 Rotor & 5051 Buckets

The Hettich Rotina 380 is a high-performance, compact benchtop centrifuge designed to handle a wide range of applications in clinical chemistry, biotechnology, and life science research. This specific configuration includes the robust 1798 four-place swing-out rotor and 5051 buckets, providing a versatile platform for medium-to-high throughput sample processing. Engineered for quiet operation and stability, the Rotina 380 features an intuitive control panel with 98 programmable memories and adjustable acceleration/deceleration ramps to protect delicate samples. With its durable metal housing and stainless steel chamber, this unit offers the reliability and safety standards required for demanding laboratory environments.

Technical Performance and Design

• Versatile Performance: Capable of reaching speeds up to 15,000 RPM (fixed-angle) and a maximum RCF of 24,400 x g, depending on the rotor configuration, making it suitable for everything from standard cell pelleting to microcentrifugation.

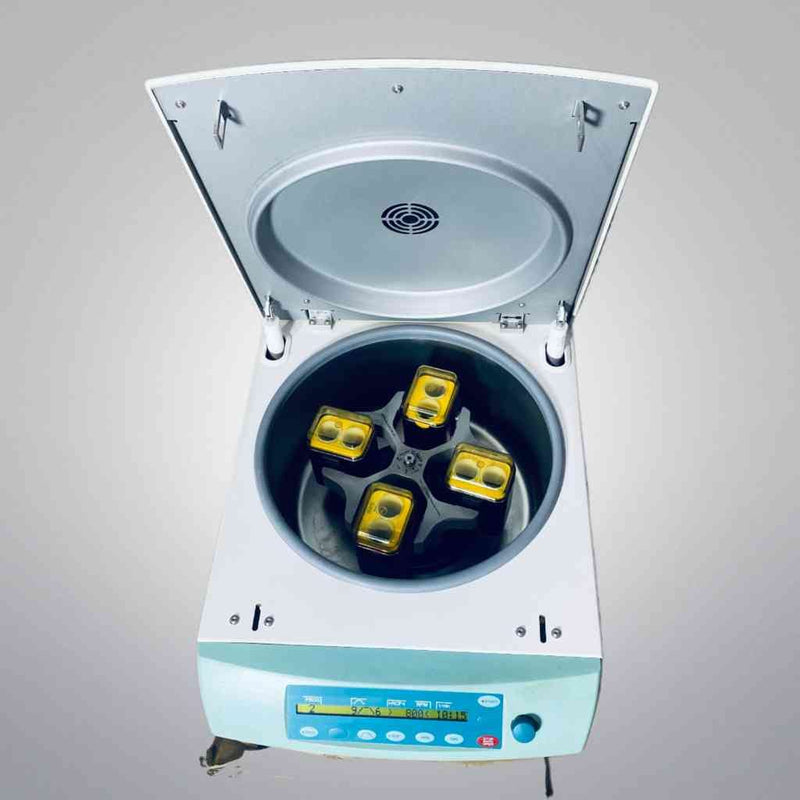

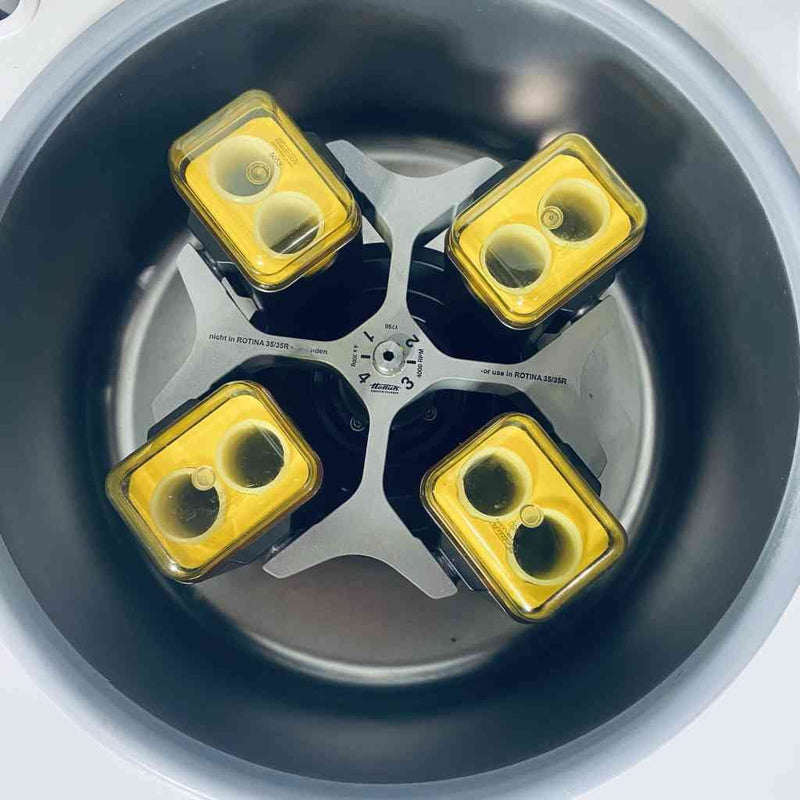

• 1798 Swing-Out Rotor: A highly flexible 4-place rotor optimized for sedimentation tasks. It ensures that the tubes remain horizontal during the run for optimal pellet formation and easy supernatant removal.

• 5051 Bucket System: These light-metal grooved buckets are designed for "Size 2" frames and can accommodate a variety of adapters. In this configuration, they are outfitted for 50 mL tube processing.

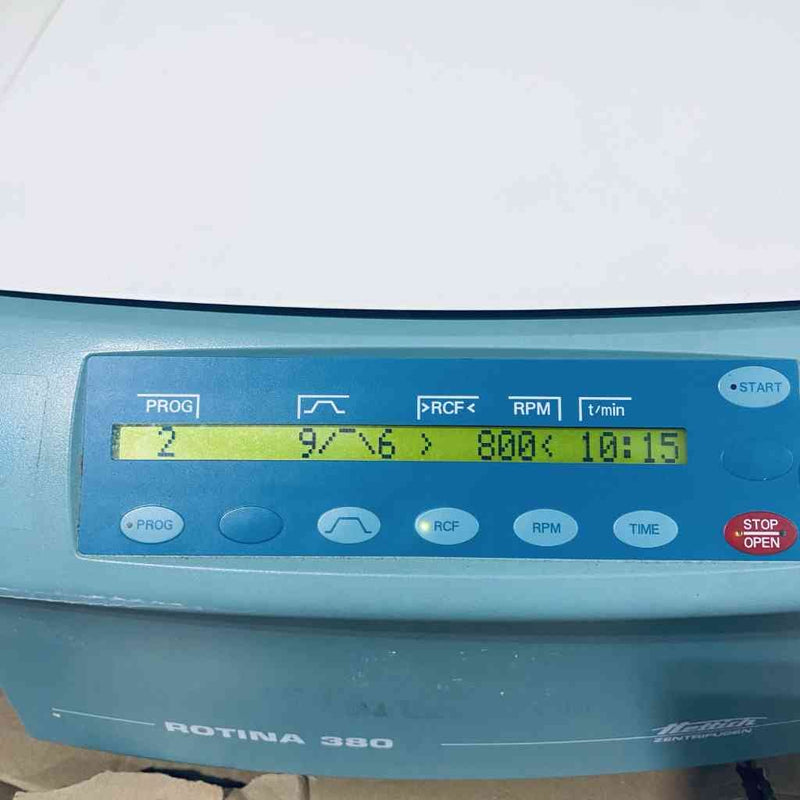

• Advanced Programming: Features an easy-to-use interface with a rotary knob for parameter adjustment, allowing users to store and recall up to 98 distinct protocols for reproducible results.

Product Specifications

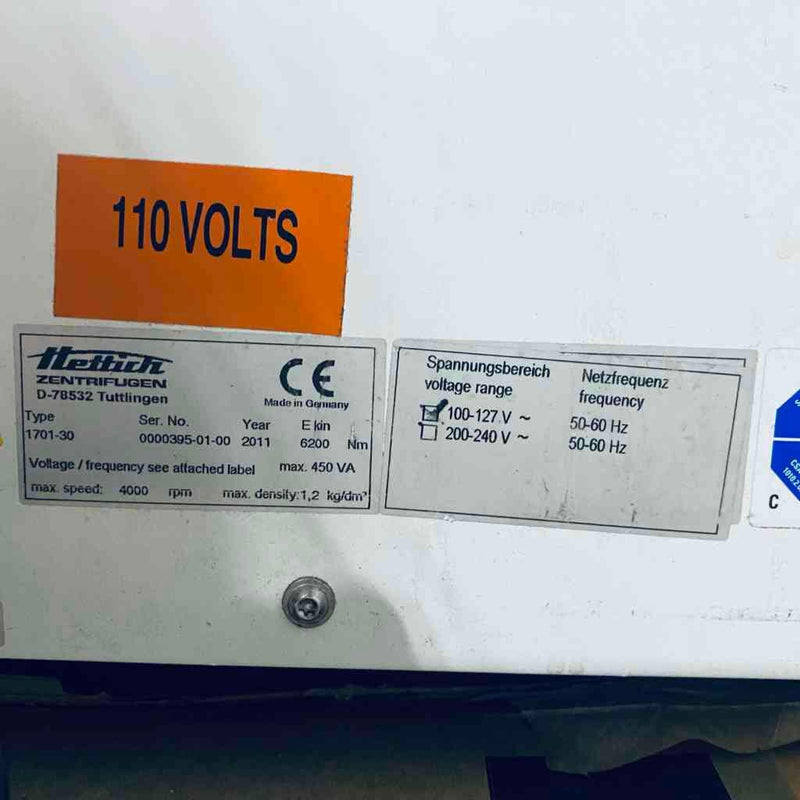

• Model Number: Rotina 380 (Cat. No. 1701-30)

• Rotor Model: 1798 (4-Place Swing-Out)

• Bucket Model: 5051 (Size 2 Frame)

• Max Capacity: 4 x 290 mL (with specific buckets); Currently configured for 50 mL tubes.

• Max Speed: 4,000 RPM (with 1798 Rotor)

• Max RCF: Approx. 2,898 x g (with 5051 Buckets)

• Inserts: Includes adapters specifically for 50 mL conical or round-bottom tubes.

• Dimensions (W x D x H): 457 x 600 x 418 mm

Key Benefits & Applications

• Cell Culture & Life Sciences: Ideal for harvesting cells from suspension in 50 mL conical tubes, a standard requirement for biopharmaceutical R&D and academic research.

• Quiet & Stable Operation: Even at maximum speeds, the Rotina 380 maintains a low noise level (approx. 54 dB with certain rotors), minimizing disruptions in the lab environment.

• Safety Features: Equipped with a motor-driven lid lock, emergency lid release, and automatic rotor recognition to prevent overspeed conditions.

• Reliable Maintenance: The 1798 rotor and 5051 buckets are autoclavable and made from corrosion-resistant materials, ensuring longevity even with frequent sterilization cycles.

All product names, logos, and brands are property of their respective owners.

Used; excellent condition. See working video here.
