Mettler Toledo Weighing Platform Max Capacity 10 lbs x 0.001 lbs

Mettler Toledo PBD655-A6 Digital Weighing Platform – 10 lbs x 0.001 lbs

The Mettler Toledo PBD655-A6 is an industrial-grade, high-precision digital weighing platform designed for demanding applications where speed, accuracy, and extreme durability are non-negotiable. Featuring a maximum capacity of 10 lbs with a highly sensitive readability of 0.001 lbs, this platform excels in industrial inventory tracking, chemical formulation, and high-precision component batching. Engineered with a robust, all-metal load cell construction, it is built to deliver fast, reproducible results even in harsh manufacturing and laboratory environments.

Technical Performance & Design

• High-Precision Load Cell: Utilizing Mettler Toledo's advanced strain gauge technology, it delivers a **0.001 lb (approx. 0.45 g) readability**, ensuring minute changes in weight are captured with exceptional reproducibility.
• Superior Overload Protection: Equipped with a **multi-stage mechanical overload protection system**, the platform can withstand accidental shock loads and static forces well beyond its maximum rated capacity without losing calibration.
• Open-Frame Construction: Designed with an open, easy-to-clean structural steel frame that resists debris accumulation and facilitates rapid decontamination in sanitary or sensitive chemical workspaces.

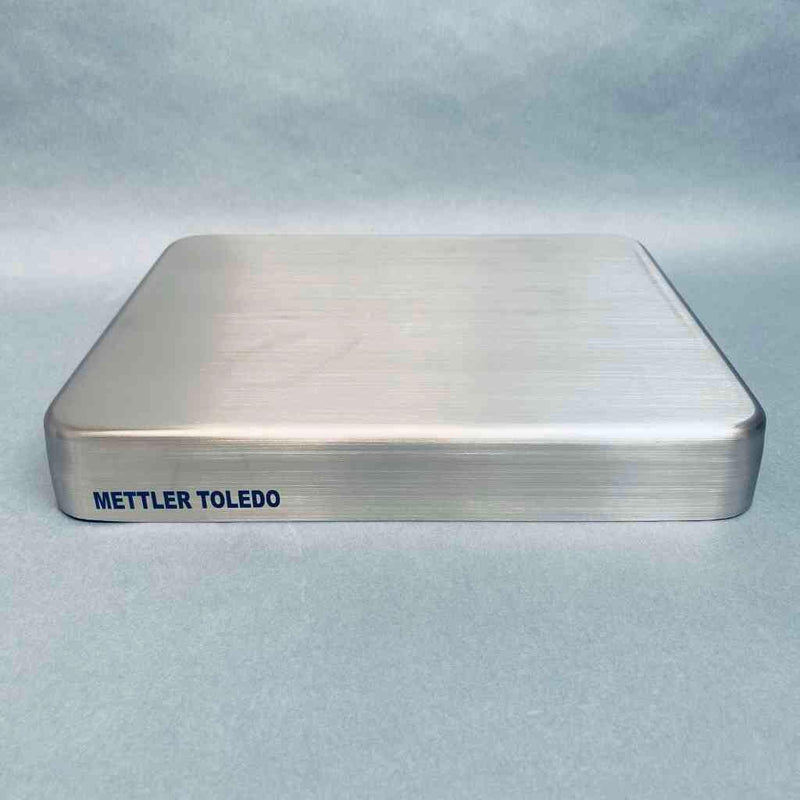

• Stainless Steel Platter: The weighing pan is fabricated from **304 stainless steel**, providing an impact-resistant, scratch-proof surface that stands up to aggressive sanitizers and continuous material handling.

Product Specifications

• Model Variant: PBD655-A6
• Maximum Capacity: 10 lbs (approx. 6 kg)
• Readability / Resolution: 0.001 lbs (0.0005 kg depending on indicator settings)
• Platter Dimensions: Standard A-Size Platform (approx. 9.5 x 11.8 inches / 240 x 300 mm)
• Material: Brushed 304 Stainless Steel (Platter) / Powder-Coated Carbon Steel (Frame)
• Ingress Protection: IP65 rated dust and splash resistance
• Interface Compatibility: IDNet, SICS, or RS485 digital interfaces (terminal dependent)

Key Benefits & Applications

• Precision Inventory & Piece Counting: The ultra-fine readability makes it ideal for **counting miniature hardware components, electronic parts, and medical fasteners** in warehouse environments.
• Formulation & Batching Control: Perfect for small-scale **pilot plants and bioprocessing laboratories** where precise ratios of powdered reagents, media components, or polymers must be blended.
• Fast Stabilization Time: Advanced internal signal filtering guarantees a stable weight readout within fractions of a second, significantly speeding up high-throughput assembly line inspections.
• Rugged Benchtop Integration: The compact footprint fits effortlessly onto standard workstations, while the adjustable leveling feet allow for perfect leveling on uneven industrial surfaces.

Mettler Toledo® is a registered trademark of Mettler-Toledo, LLC. Specifications and model data are subject to change based on integrated display terminals and regulatory approvals (NTEP/OIML).
