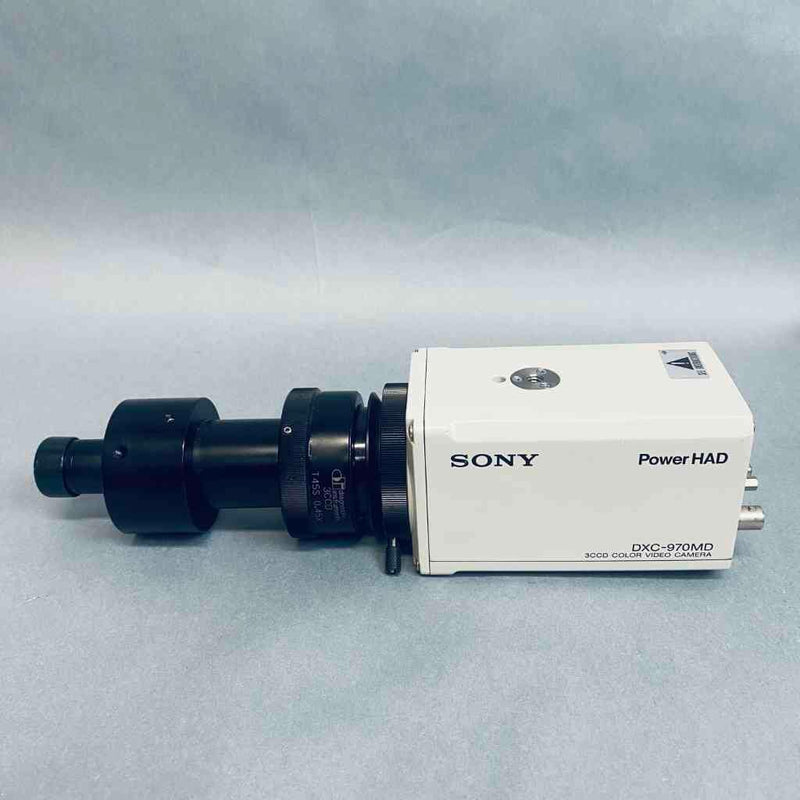

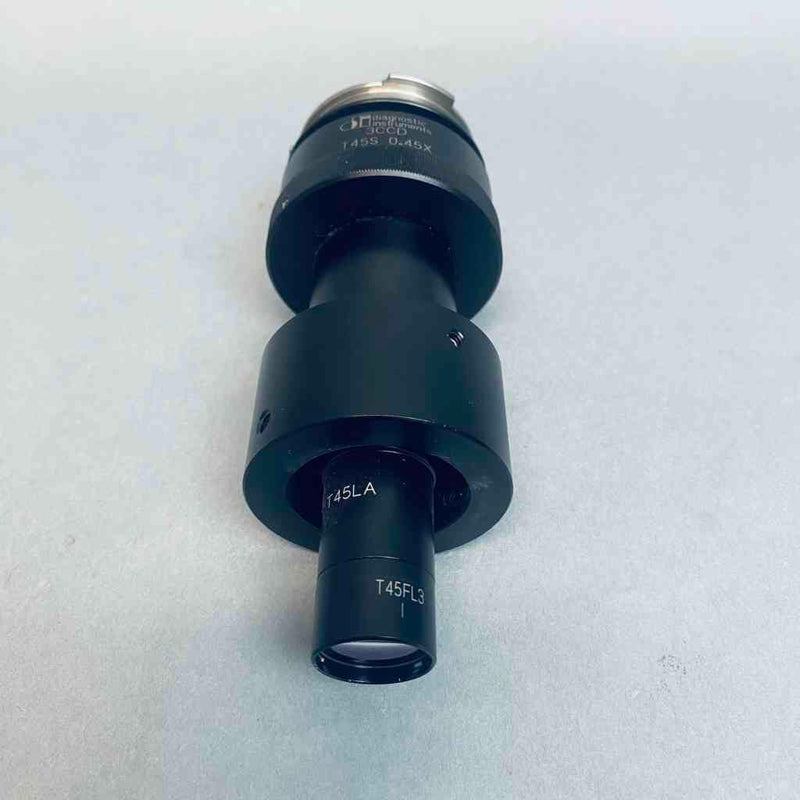

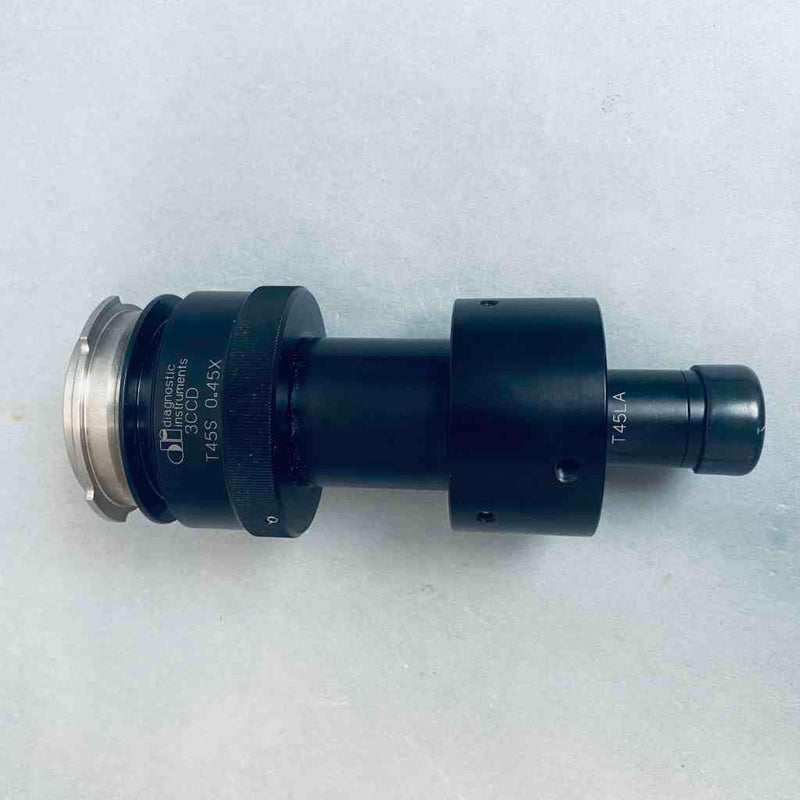

Sony Color Video Camera 3CCD Power HAD with T45S / T45LA / T45FL3 0.45x Lens Assembly

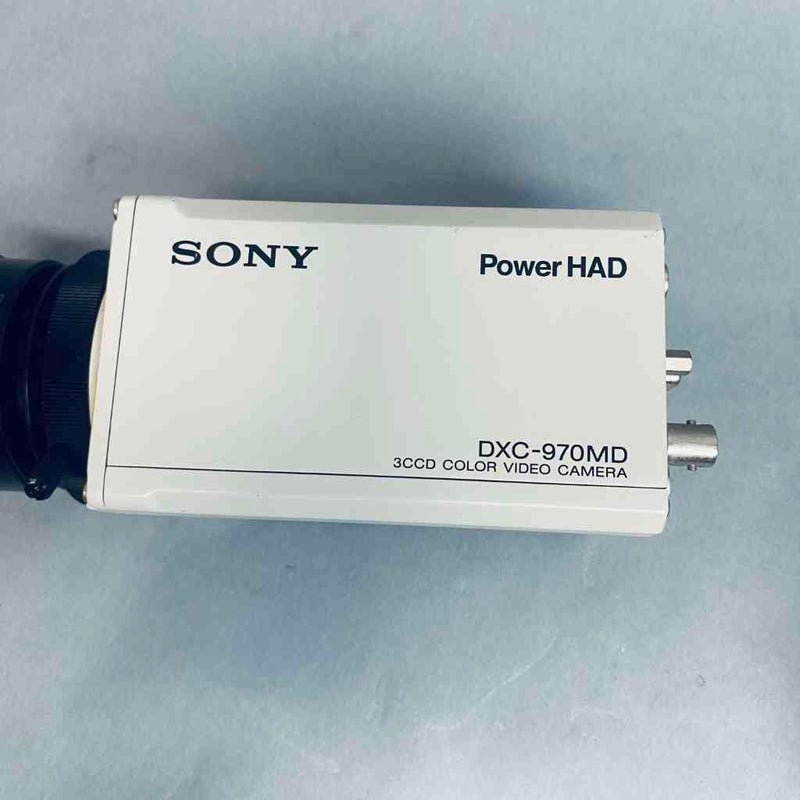

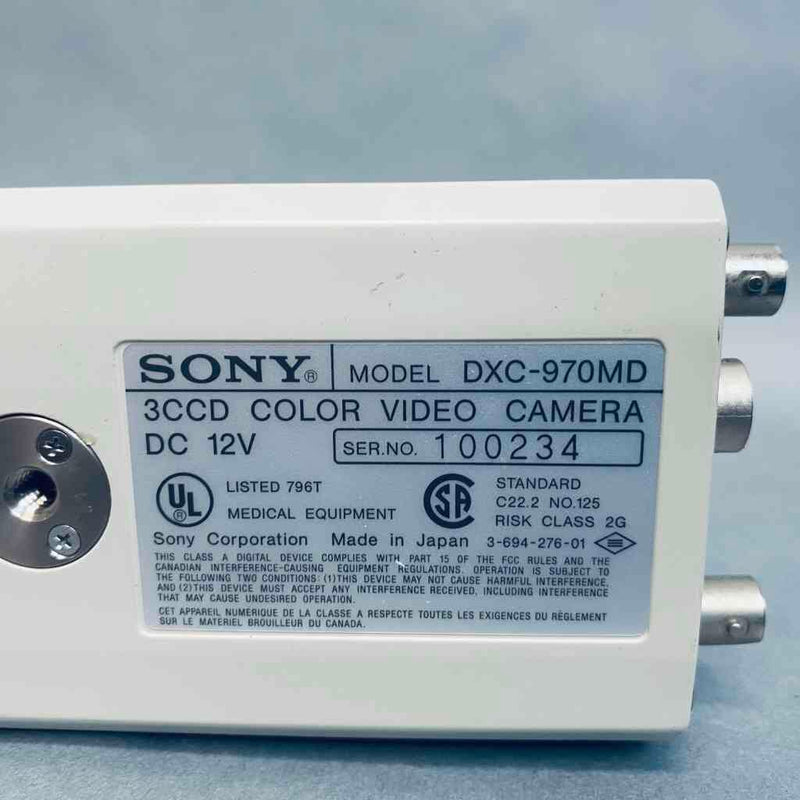

The Sony DXC-970MD is a professional-grade medical video camera featuring 3CCD Power HAD™ technology. It is specifically designed for high-resolution imaging in demanding environments such as microsurgery, pathology, and laboratory microscopy.
Camera Core Technology
-
3CCD Power HAD System: Utilizes three 1/2-inch Interline Transfer CCDs to provide exceptional color reproduction and sensitivity. The "Power HAD" (Hole Accumulated Diode) technology significantly reduces "smear" (bright vertical streaks caused by intense light sources).
-
High Resolution: Delivers 750 Horizontal TV lines, providing the clarity necessary for fine surgical or microscopic detail.
-
High Sensitivity: Rated at F9.5 at 2000 lux, with a minimum illumination of 5 lux (at F1.4), making it highly effective for low-light imaging like fluorescence (FISH) applications.
-
Signal-to-Noise Ratio: A high 60dB ratio ensures clean, noise-free images even when gain is applied.
| Feature | Details |
| Image Device | 3-chip 1/2-inch CCD |
| Signal System | NTSC (standard medical video) |

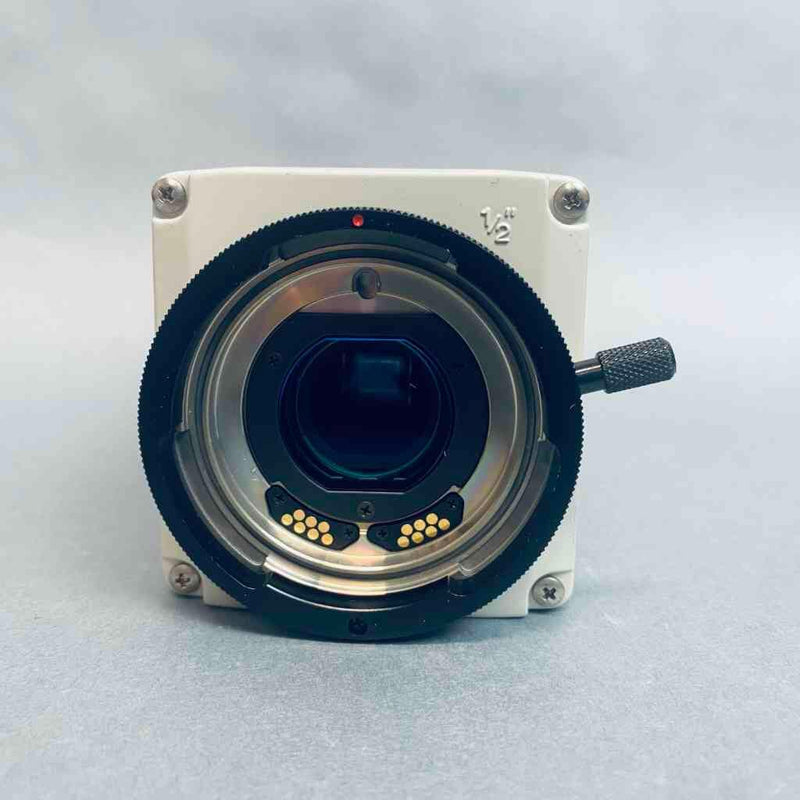

| Lens Mount | Sony 1/2-inch Bayonet |

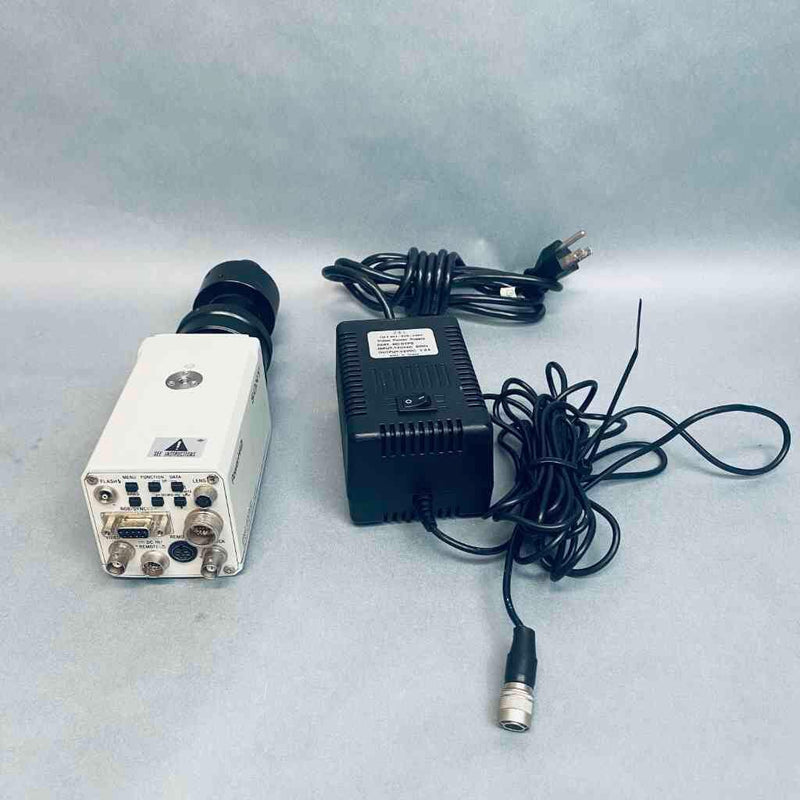

| Output Ports | RGB, Y/C (S-Video), VBS (Composite) |
| Control Interface | RS-232C for remote PC control |
| Weight | Approx. 1.8 lbs (Camera head only) |
