Thermo Finnigan LCQ Duo RF Voltage Control PCB Assembly

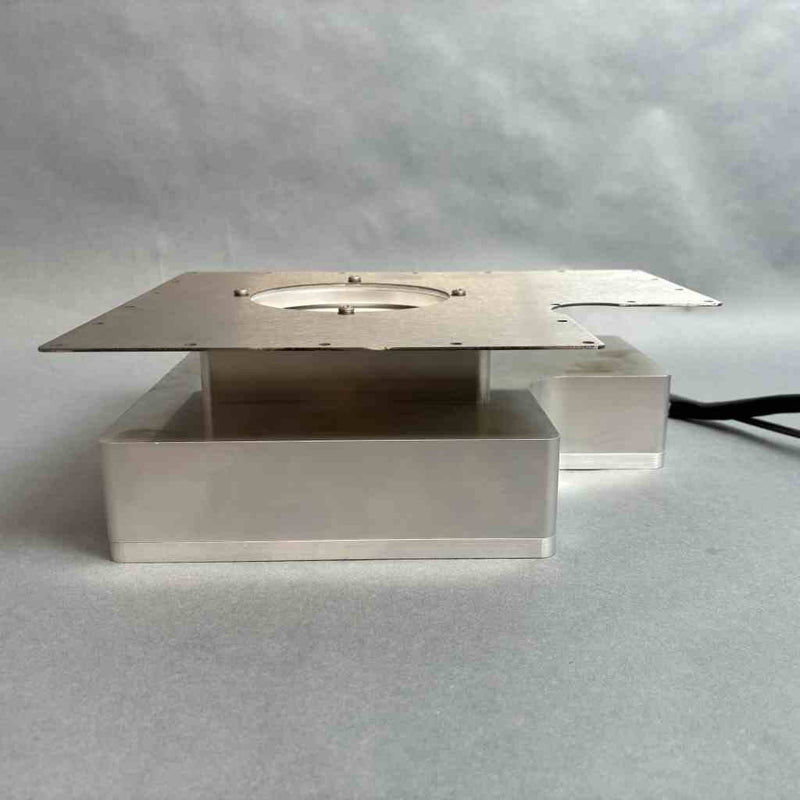

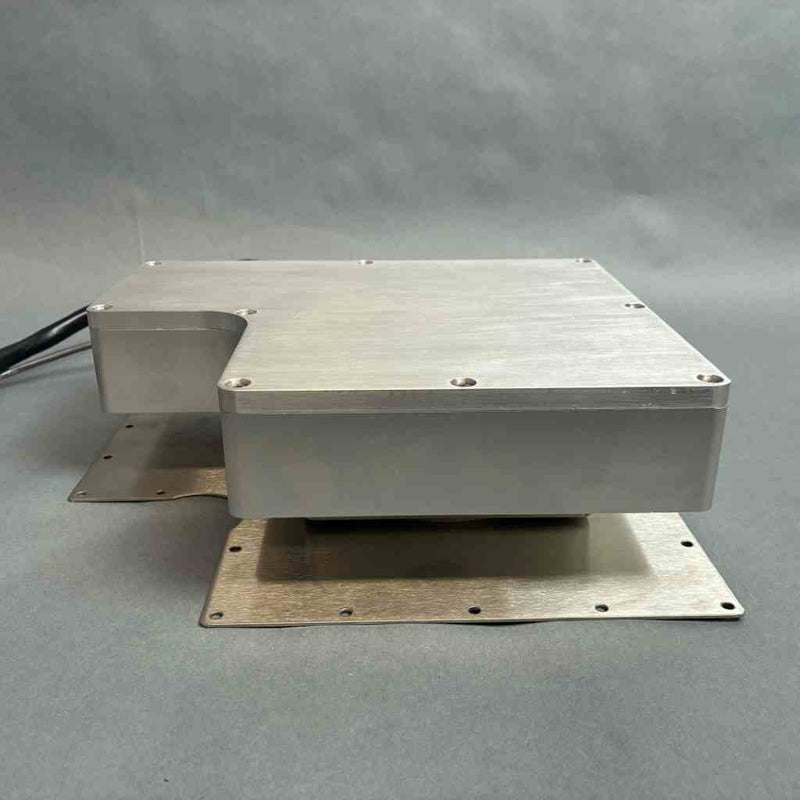

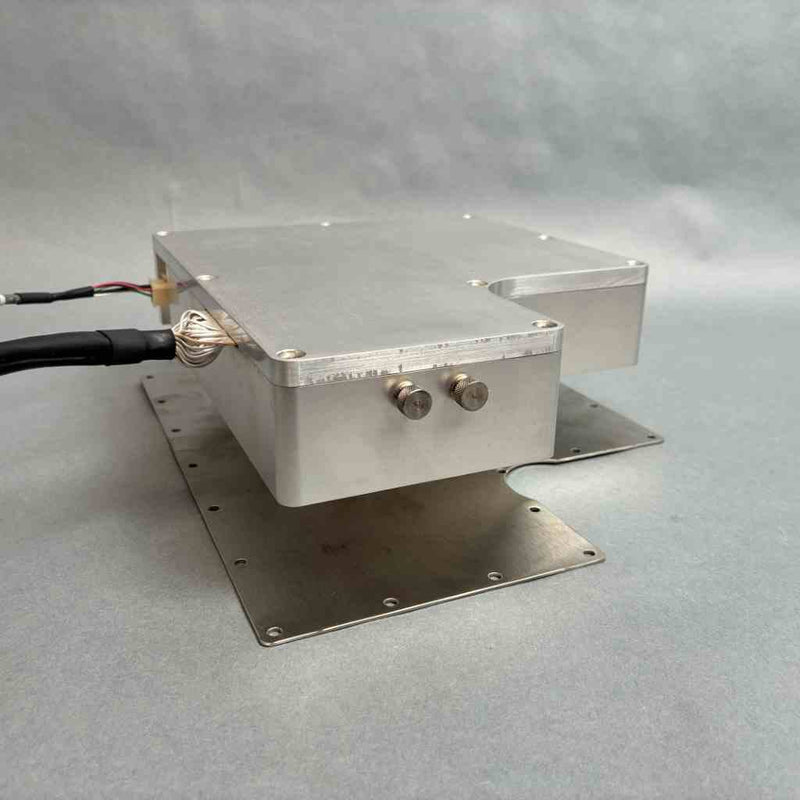

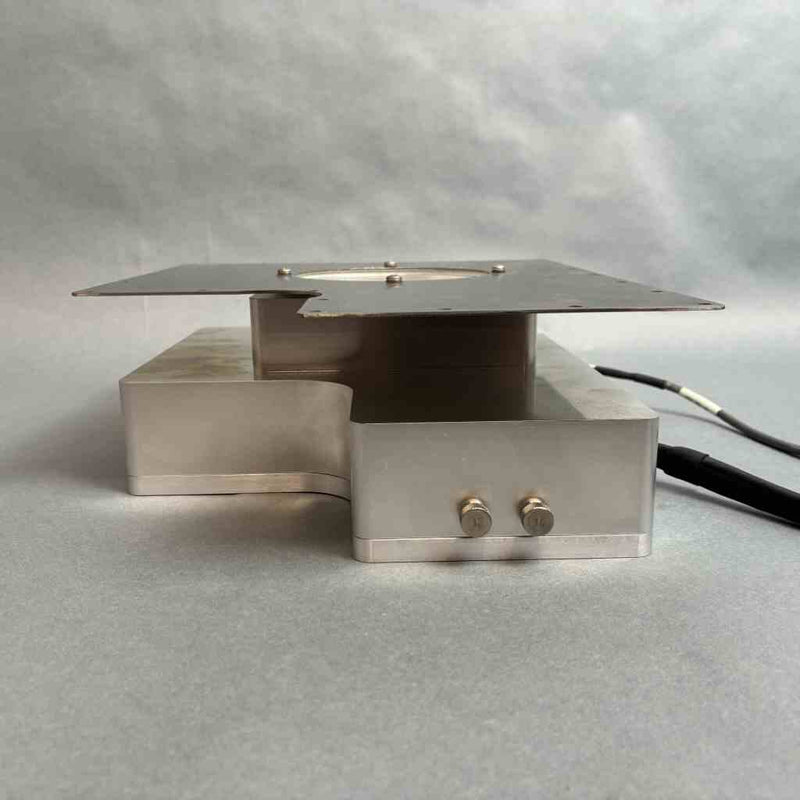

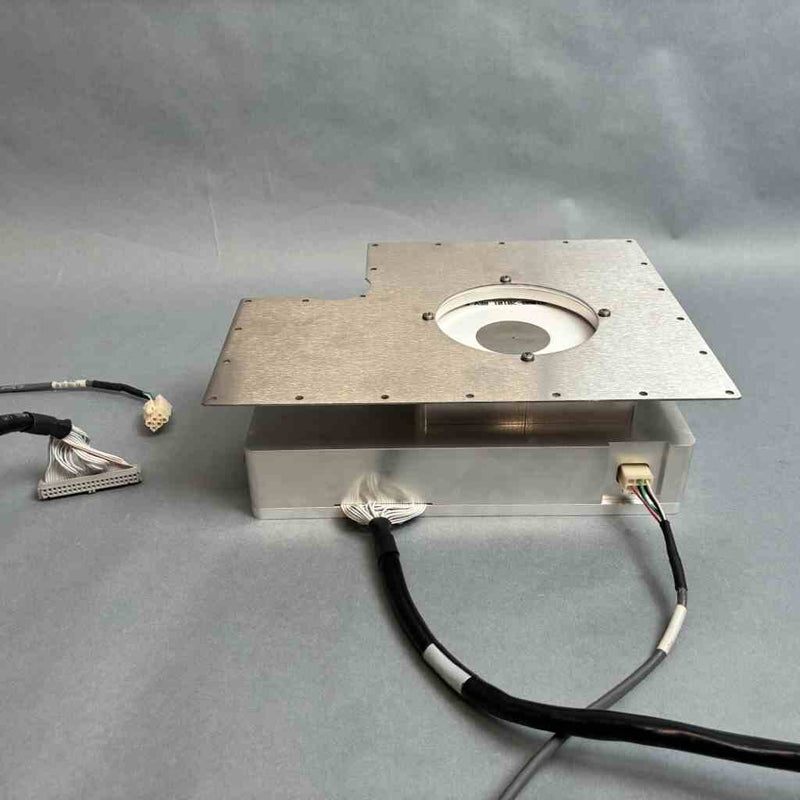

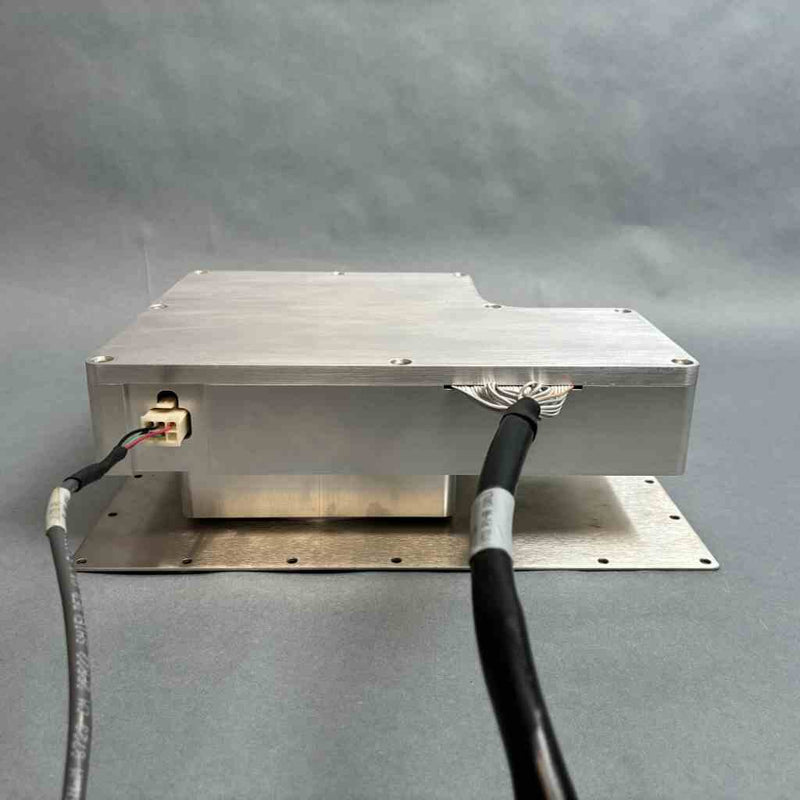

The Thermo Finnigan 96000-61100 RF Voltage Control Board for LCQ Duo LC/MS system is a complete RF voltage regulation assembly used within the LCQ Duo mass spectrometer platform. This used module integrates the RF Voltage Control PCB, machined aluminum housing, aluminum mounting plate, and associated connector cables, forming a full-service replacement subassembly for instrument integration.

This assembly is responsible for generating and regulating RF voltage signals required for ion manipulation and transmission within the LCQ Duo LC/MS system. It plays a critical role in maintaining stable ion optics performance and consistent analytical output.

Technical Performance & Design

• RF Voltage Control PCB assembly for LCQ Duo LC/MS system
• Regulates RF voltage for ion optics and ion transmission pathways
• Integrated machined aluminum housing for structural support and EMI shielding
• Aluminum mounting plate ensures secure mechanical installation within instrument chassis

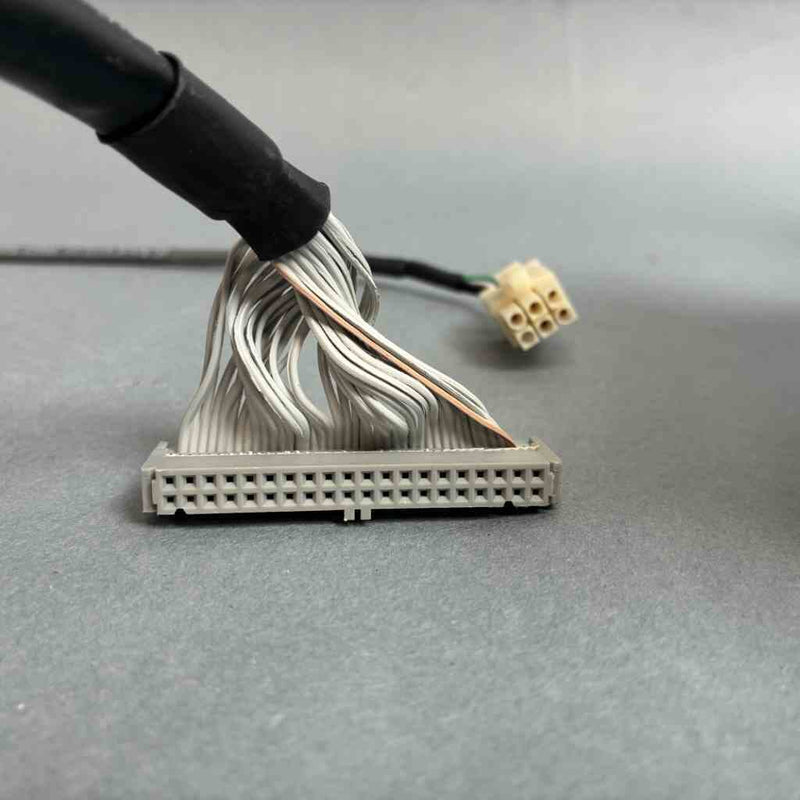

• Includes connector cables for electrical integration with LCQ Duo internal systems
• Designed for OEM-level subsystem replacement and direct instrument integration
• Supports stable RF signal generation essential for mass spectrometry operation

Product Specifications

• Manufacturer: Thermo Finnigan
• Part Number (MPN): 96000-61100
• Quantity: 1 complete assembly
• System / Instrument Compatibility: Thermo Finnigan LCQ Duo LC/MS system
• Component Type: RF voltage control PCB assembly with housing and cabling
• Connectors / Interfaces: Internal RF control connectors plus included interface cables for system integration

Key Benefits for Maintenance / Use

• Restores RF voltage control functionality in LCQ Duo mass spectrometers
• Supports stable ion transmission and improved analytical consistency
• Reduces downtime through complete assembly-level replacement
• Integrated housing and cabling simplify installation and system integration
• Enhances reliability of ion optics subsystem performance in LC/MS workflows

Condition

Used in excellent condition, removed from a working machine.
