Thermo Scientific Orion Versa Star Advanced Electrochemistry Meter with pH and Conductivity Channel Ports

The Thermo Scientific Orion Versa Star Advanced VSTAR00 4-Channel Electrochemistry Meter is a modular laboratory instrument designed for electrochemical measurements using interchangeable Versa Star modules. This configuration has four measurement channels, with a pH port in one channel and a conductivity port in another. The remaining two channels contain blank filler plugs. No probe modules are included. The meter features a customizable color graphic display, onboard data storage, and USB and RS232 connectivity for laboratory data management.

Technical Performance & Design

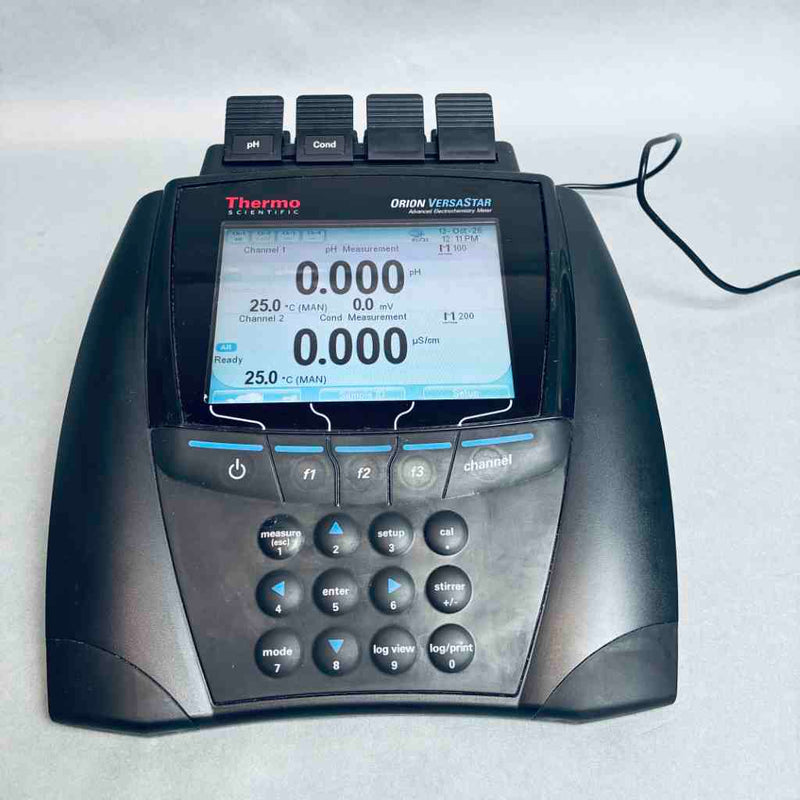

• Four-channel platform: Displays one, two, three, or all four measurement channels, including temperature, with selectable display configurations.
• Modular architecture: Supports five Versa Star module types: pH, pH/ISE, conductivity, dissolved oxygen, and pH/LogR.
• Supplied configuration: One pH port, one conductivity port, and two channels with blank filler plugs. No measurement modules are included.
• Display and operation: Color graphic LCD with on-screen prompts, menu-specific function keys, and support for English, Spanish, French, Italian, German, and Chinese.
• Data storage: Non-volatile memory stores up to 2,000 data points with time and date stamps.
• Connectivity: Two USB ports and one RS232 port support data transfer and meter software updates.
• Software integration: Compatible with complimentary Orion Star Com software for transferring stored results and viewing live readings.
• Laboratory accessories: Includes an electrode arm, holder, and universal power adapter. Supports the Orion Star stirrer probe, catalog number 096019.
• Housing: IP54-rated splash protection with wall-mounting capability.
• Warranty: Manufacturer documentation specifies a three-year meter replacement warranty.

Product Specifications

• Manufacturer: Thermo Scientific
• Part Number (MPN): VSTAR00
• Quantity: Not specified
• System / Instrument Compatibility: Thermo Scientific Orion Versa Star Advanced system
• Component Type: Four-channel modular electrochemistry meter

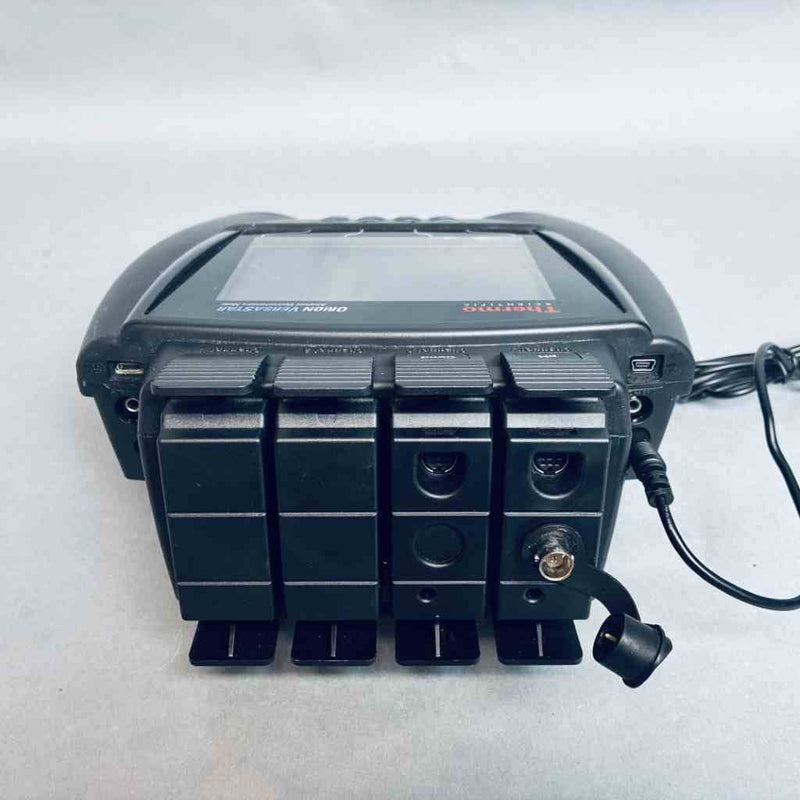

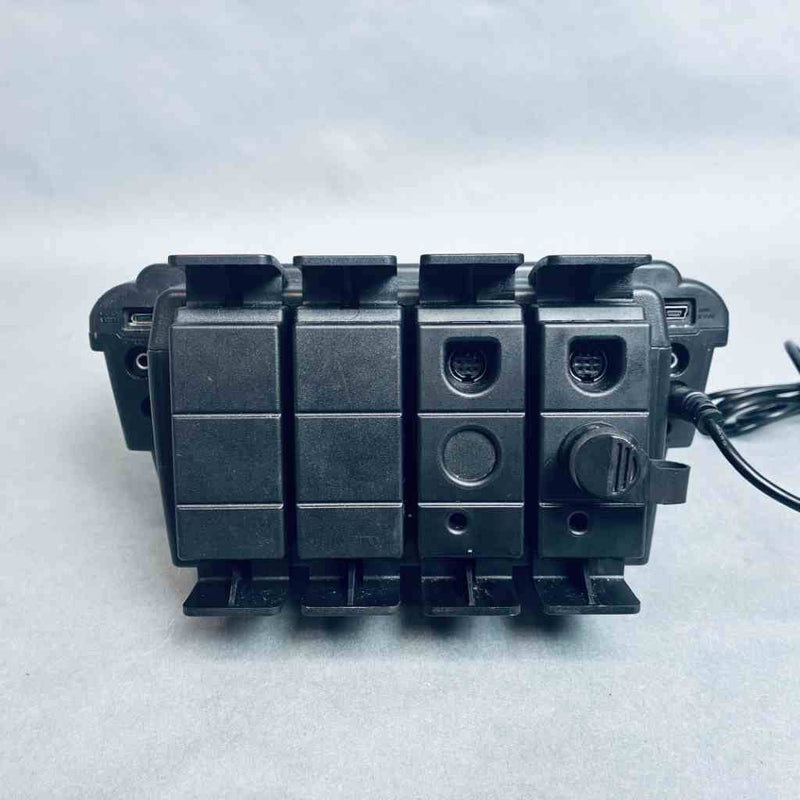

• Channel Configuration: pH port, conductivity port, and two blanked channels
• Included Probe Modules: None
• Available Module Types: pH, pH/ISE, conductivity, dissolved oxygen, and pH/LogR

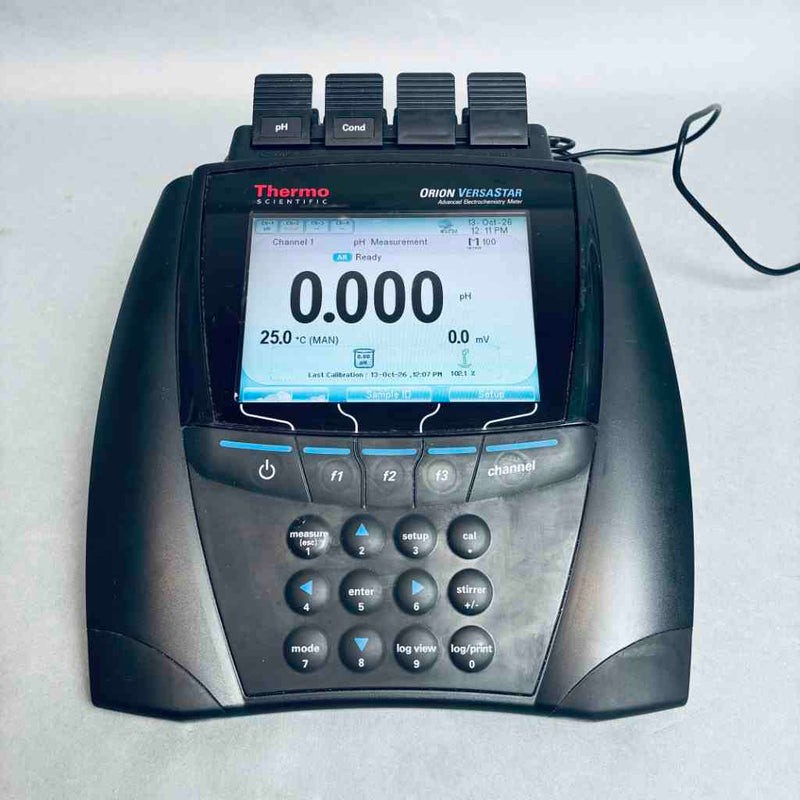

• Display: Customizable color graphic LCD
• Data Storage: Up to 2,000 time- and date-stamped data points
• Connectors / Interfaces: Two USB ports, one RS232 port, and modular measurement-channel interfaces

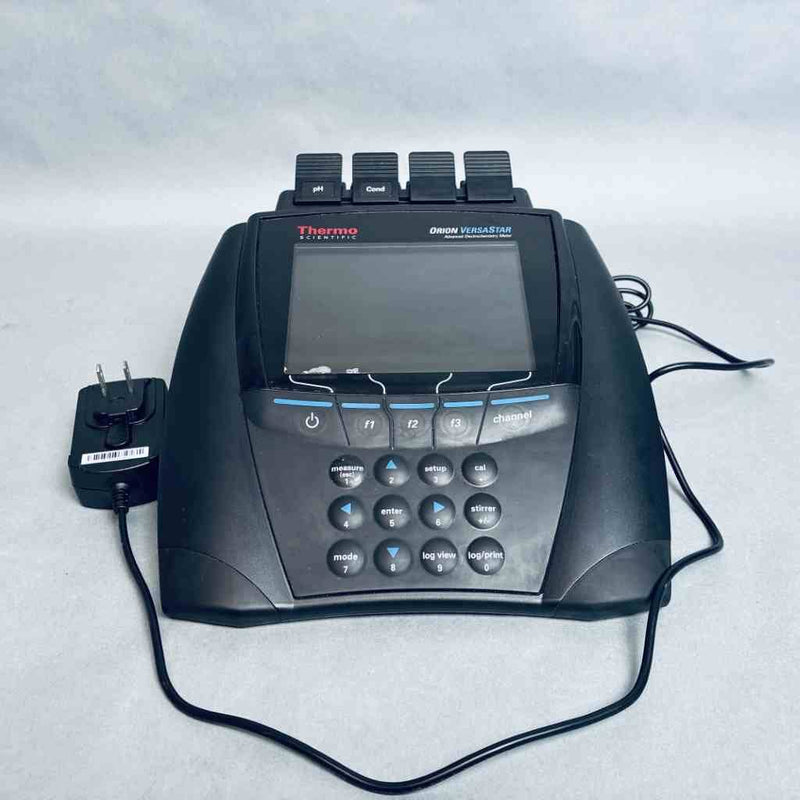

• Included Accessories: Electrode arm, holder, and universal power adapter
• Housing Protection: IP54
• Mounting: Wall-mountable

Key Benefits for Maintenance / Use

• Replacement utility: Suitable as a replacement meter for compatible Orion Versa Star Advanced laboratory setups, subject to configuration verification.
• Flexible configuration: Supports different electrochemical measurement types through compatible interchangeable modules.
• Data management: Onboard storage and USB/RS232 connectivity support measurement records and data transfer.
• Operational integration: Display customization, stirrer compatibility, and included electrode positioning accessories support routine laboratory workflows.
• Future adaptability: Unused channels can be configured with compatible Versa Star modules as requirements change.

Condition

Used, tested in excellent condition!
